Bar lights · 40 models · from $49.00

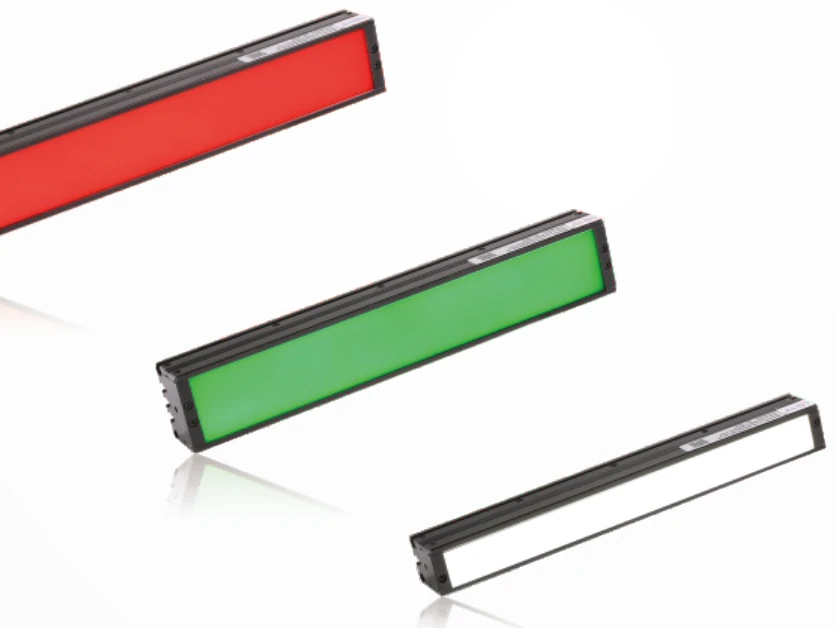

High uniformity bar light (2BRS)
The High uniformity bar light (2BRS) is a range of 40 bar lights from LumaSpec Vision, from $49.00. It comes in 40 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 30 mm, 42 x 16 mm, 62 x 30 mm, 72 x 16 mm, 87 x 30 mm, 102 x 16 mm, 112 x 30 mm, 132 x 16 mm, 137 x 30 mm, 162 x 16 mm, 162 x 30 mm, 187 x 30 mm, 192 x 16 mm, 212 x 30 mm, 222 x 16 mm, 237 x 30 mm and 24 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- Wide-angle LED array design, high luminance
- Made with high-precision moulds, smaller difference between batches, high heat-dissipation performance
- Multiple installation methods, easy to install: frame structure keeps the built-in installing holes, M3 screw and nut (not attached)
- Different transmittance diffuser plates optional
- Wide-angle surface-mount (paste) LEDs behind a high-diffusivity diffuser (transmittance optional)
- Wire jacket covers the cable exit, anti-pull
- Customizable: Light array quantities, Length & width, Combined light, Colour & colour temperature, Multi-area control, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- Metal surface defect inspection
- Printed character defect inspection
- Edge defect inspection
- Imaging example: keyboard character inspection on plastic products (LS-2BRS30030-W; result image captioned LS-2BR17530-W 2 pcs), high uniformity white background highlights black characters
All 40 models in the High uniformity bar light (2BRS)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2BRS2530 | 30 mm | 1 W | $49.00 | 13 in stock | View | |
| LS-2BRS3016 | 42 x 16 mm | 0.7 W | $59.00 | 15 in stock | View | |
| LS-2BRS6016 | 72 x 16 mm | 1.4 W | $69.00 | 16 in stock | View | |
| LS-2BRS5030 | 62 x 30 mm | 1.9 W | $69.00 | 11 in stock | View | |
| LS-2BRS7530 | 87 x 30 mm | 2.9 W | $79.00 | 15 in stock | View | |
| LS-2BRS9016 | 102 x 16 mm | 2.2 W | $89.00 | 12 in stock | View | |
| LS-2BRS10030 | 112 x 30 mm | 4.3 W | $99.00 | 16 in stock | View | |
| LS-2BRS12016 | 132 x 16 mm | 2.9 W | $109.00 | 17 in stock | View | |
| LS-2BRS12530 | 137 x 30 mm | 4.8 W | $109.00 | 14 in stock | View | |
| LS-2BRS15016 | 162 x 16 mm | 3.6 W | $119.00 | 18 in stock | View | |
| LS-2BRS15030 | 162 x 30 mm | 5.8 W | $119.00 | 14 in stock | View | |
| LS-2BRS17530 | 187 x 30 mm | 6.7 W | $129.00 | 18 in stock | View | |
| LS-2BRS18016 | 192 x 16 mm | 4.3 W | $139.00 | 15 in stock | View | |
| LS-2BRS21016 | 222 x 16 mm | 5 W | $149.00 | 14 in stock | View | |
| LS-2BRS20030 | 212 x 30 mm | 7.7 W | $149.00 | 13 in stock | View | |
| LS-2BRS22530 | 237 x 30 mm | 8.6 W | $159.00 | 15 in stock | View | |
| LS-2BRS24016 | 252 x 16 mm | 5.8 W | $169.00 | 16 in stock | View | |
| LS-2BRS25030 | 262 x 30 mm | 9.6 W | $169.00 | 11 in stock | View | |
| LS-2BRS27016 | 282 x 16 mm | 6.5 W | $179.00 | 17 in stock | View | |
| LS-2BRS27530 | 287 x 30 mm | 10.6 W | $189.00 | 10 in stock | View | |
| LS-2BRS30016 | 312 x 16 mm | 7.2 W | $199.00 | 15 in stock | View | |
| LS-2BRS30030 | 312 x 30 mm | 11.5 W | $199.00 | 11 in stock | View | |
| LS-2BRS32530 | 337 x 30 mm | 12.5 W | $209.00 | 11 in stock | View | |
| LS-2BRS33016 | 342 x 16 mm | 7.9 W | $219.00 | 15 in stock | View | |
| LS-2BRS36016 | 372 x 16 mm | 8.6 W | $229.00 | 13 in stock | View | |
| LS-2BRS35030 | 362 x 30 mm | 13.4 W | $229.00 | 16 in stock | View | |
| LS-2BRS37530 | 387 x 30 mm | 14.4 W | $239.00 | 11 in stock | View | |
| LS-2BRS39016 | 402 x 16 mm | 9.4 W | $249.00 | 9 in stock | View | |
| LS-2BRS40030 | 412 x 30 mm | 15.4 W | $249.00 | 13 in stock | View | |
| LS-2BRS42016 | 432 x 16 mm | 10.1 W | $259.00 | 11 in stock | View | |
| LS-2BRS42530 | 437 x 30 mm | 16.3 W | $269.00 | 12 in stock | View | |
| LS-2BRS45016 | 462 x 16 mm | 10.8 W | $279.00 | 14 in stock | View | |
| LS-2BRS45030 | 462 x 30 mm | 17.3 W | $279.00 | 16 in stock | View | |
| LS-2BRS48016 | 492 x 16 mm | 11.5 W | $289.00 | 13 in stock | View | |
| LS-2BRS47530 | 487 x 30 mm | 18.2 W | $289.00 | 15 in stock | View | |
| LS-2BRS51016 | 522 x 16 mm | 12.2 W | $309.00 | 10 in stock | View | |
| LS-2BRS50030 | 512 x 30 mm | 19.2 W | $309.00 | 14 in stock | View | |
| LS-2BRS75030 | 762 x 30 mm | 28.8 W | $439.00 | 15 in stock | View | |
| LS-2BRS100030 | 1012 x 30 mm | 37.7 W | $569.00 | 13 in stock | View | |
| LS-2BRS150030 | 1512 x 30 mm | 56.9 W | $829.00 | 13 in stock | View |
