Bar lights · 5 models · from $59.00

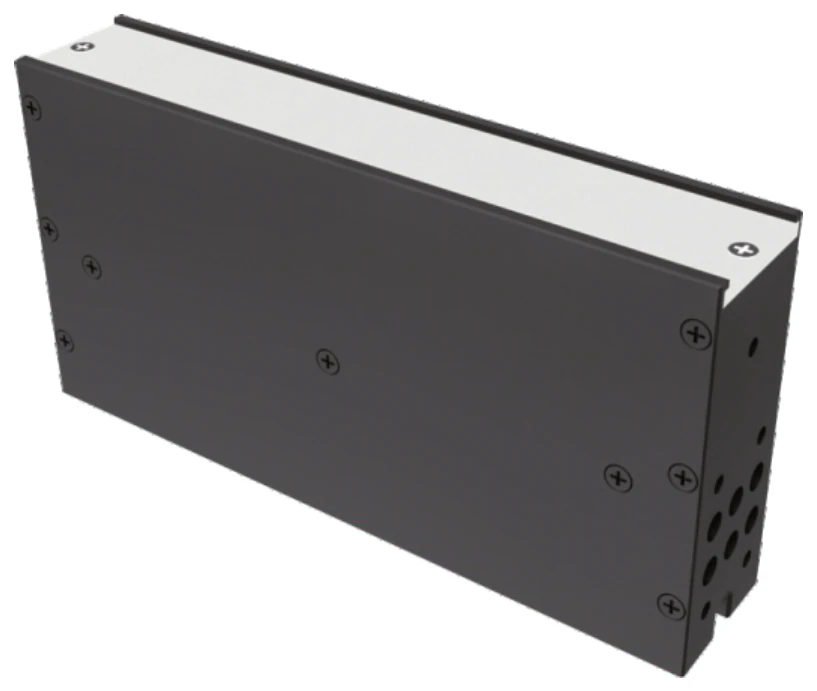

High brightness bar light (2HBS series)
The High brightness bar light (2HBS series) is a range of 5 bar lights from LumaSpec Vision, from $59.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 48 x 18 mm, 88 x 18 mm, 188 x 18 mm, 288 x 18 mm, 388 x 18 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Multi-colour RGB |
| Voltage | 24 V |
Features
- The brightness is three times more than standard bar lights
- Adopts high-power LEDs to realize lighting over long distance
Typical uses
- Suitable for all applications of bar light
- Various character recognition
- Various appearance inspection
- Various damage and defect inspection
- QR codes, one-dimension bar code reading
- Part inspection on substrates
All 5 models in the High brightness bar light (2HBS series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2HBS6026-RGBW | 48 x 18 mm | 5.6 W | $59.00 | 14 in stock | View | |
| LS-2HBS10026-RGBW | 88 x 18 mm | 12 W | $79.00 | 11 in stock | View | |
| LS-2HBS20026-RGBW | 188 x 18 mm | 23 W | $139.00 | 16 in stock | View | |
| LS-2HBS30026-RGBW | 288 x 18 mm | 40 W | $189.00 | 11 in stock | View | |
| LS-2HBS40026-RGBW | 388 x 18 mm | 45 W | $239.00 | 14 in stock | View |
