Bar lights · 9 models · from $79.00

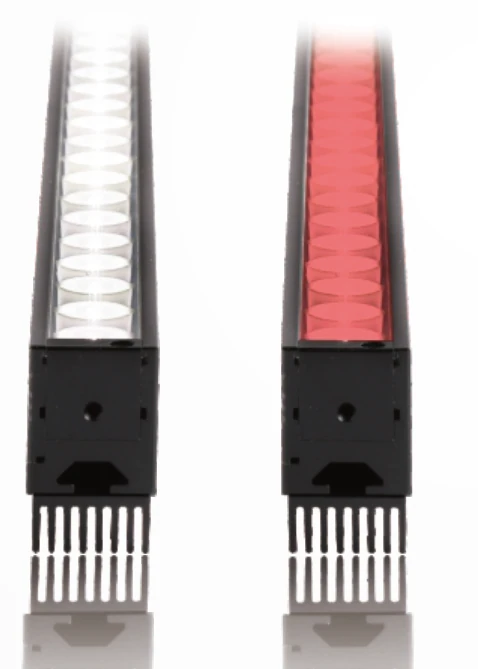

High power bar light (3BRH)
The High power bar light (3BRH) is a range of 9 bar lights from LumaSpec Vision, from $79.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 90 x 16 mm, 120 x 16 mm, 150 x 16 mm, 210 x 16 mm, 270 x 16 mm, 300 x 16 mm, 360 x 16 mm, 420 x 16 mm, 510 x 16 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Linear / high intensity |
| Voltage | 24 V |
Features
- High power LEDs, lighting at long working distance, high luminance
- Multiple installation methods, easy to install
- One-piece aluminium alloy design, high heat-dissipation performance
- Option: diffuser plate, improves lamp shadow and glare when imaging reflective workpieces
- Customizable: Combined light, Length, Multi-area control, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- Large LCD panel defect inspection
- Metal surface defect inspection
- Printed character defect inspection
- Connector pin flatness inspection
- Imaging example: mobile phone bottom shrapnel direction inspection (LS-3BRH15016-B)
All 9 models in the High power bar light (3BRH)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3BRH9016 | 90 x 16 mm | 4.8 W | $79.00 | 12 in stock | View | |
| LS-3BRH12016 | 120 x 16 mm | 4.8 W | $99.00 | 9 in stock | View | |
| LS-3BRH15016 | 150 x 16 mm | 4.8 W | $119.00 | 14 in stock | View | |
| LS-3BRH21016 | 210 x 16 mm | 9.6 W | $149.00 | 15 in stock | View | |
| LS-3BRH27016 | 270 x 16 mm | 14.4 W | $179.00 | 18 in stock | View | |
| LS-3BRH30016 | 300 x 16 mm | 14.4 W | $189.00 | 15 in stock | View | |
| LS-3BRH36016 | 360 x 16 mm | 19.2 W | $229.00 | 15 in stock | View | |
| LS-3BRH42016 | 420 x 16 mm | 24 W | $259.00 | 16 in stock | View | |
| LS-3BRH51016 | 510 x 16 mm | 24 W | $299.00 | 10 in stock | View |
