Bar lights · 45 models · from $49.00

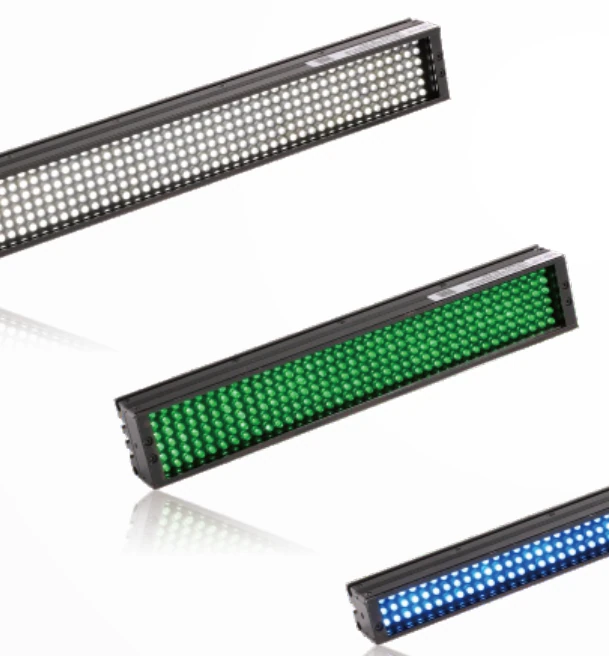

High luminance bar light (2BR)
The High luminance bar light (2BR) is a range of 45 bar lights from LumaSpec Vision, from $49.00. It comes in 45 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 30 mm, 38 x 30 mm, 42 x 16 mm, 62 x 30 mm, 72 x 16 mm, 87 x 30 mm, 102 x 16 mm, 112 x 30 mm, 132 x 16 mm, 137 x 30 mm, 162 x 16 mm, 162 x 30 mm, 187 x 30 mm, 192 x 16 mm, 212 x 30 mm, 222 x 16 mm and 29 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- Small-angle LED array design, high luminance
- Made with high-precision moulds, smaller difference between batches, high heat-dissipation performance
- Multiple installation methods, easy to install: frame structure keeps the built-in installing holes, M3 screw and nut (not attached)
- Different transmittance diffuser plates optional
- Small-angle plug-in type LEDs
- Options: diffuser plate (reduces lamp shadow and glare on reflective workpieces); polarizing plate (used with a polarized lens to remove glare from uneven surfaces and reflected light)
- Wire jacket covers the cable exit, anti-pull
- Customizable: Light array quantities, Length & width, Combined light, Colour & colour temperature, Multi-area control, Cable length, Installation method
Typical uses
- Large LCD panel defect inspection
- Metal surface defect inspection
- Printed character defect inspection
- Connector pin flatness inspection
- Imaging example: outlook (printed) character inspection on plastic products with 2 pcs LS-2BR17530-W, obvious contrast for printing defect inspection
All 45 models in the High luminance bar light (2BR)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2BR2530 | 30 mm | 1.2 W | $49.00 | 16 in stock | View | |
| LS-2BR3016 | 42 x 16 mm | 0.7 W | $59.00 | 15 in stock | View | |
| LS-2BR3830 | 38 x 30 mm | 1.9 W | $59.00 | 14 in stock | View | |
| LS-2BR6016 | 72 x 16 mm | 1.4 W | $69.00 | 12 in stock | View | |
| LS-2BR5030 | 62 x 30 mm | 2.4 W | $69.00 | 10 in stock | View | |
| LS-2BR7530 | 87 x 30 mm | 3.6 W | $79.00 | 15 in stock | View | |
| LS-2BR9016 | 102 x 16 mm | 2.2 W | $89.00 | 13 in stock | View | |
| LS-2BR10030 | 112 x 30 mm | 4.8 W | $99.00 | 11 in stock | View | |
| LS-2BR12016 | 132 x 16 mm | 2.9 W | $109.00 | 14 in stock | View | |
| LS-2BR12530 | 137 x 30 mm | 6 W | $109.00 | 15 in stock | View | |
| LS-2BR15016 | 162 x 16 mm | 3.6 W | $119.00 | 14 in stock | View | |
| LS-2BR15030 | 162 x 30 mm | 7.2 W | $119.00 | 14 in stock | View | |
| LS-2BR17530 | 187 x 30 mm | 8.4 W | $129.00 | 14 in stock | View | |
| LS-2BR18016 | 192 x 16 mm | 4.3 W | $139.00 | 10 in stock | View | |
| LS-2BR21016 | 222 x 16 mm | 5 W | $149.00 | 16 in stock | View | |
| LS-2BR20030 | 212 x 30 mm | 9.6 W | $149.00 | 17 in stock | View | |
| LS-2BR22530 | 237 x 30 mm | 10.8 W | $159.00 | 15 in stock | View | |
| LS-2BR24016 | 252 x 16 mm | 5.8 W | $169.00 | 16 in stock | View | |
| LS-2BR25030 | 262 x 30 mm | 12 W | $169.00 | 15 in stock | View | |
| LS-2BR27016 | 282 x 16 mm | 6.5 W | $179.00 | 16 in stock | View | |
| LS-2BR27530 | 287 x 30 mm | 13.2 W | $189.00 | 9 in stock | View | |
| LS-2BR30016 | 312 x 16 mm | 7.2 W | $199.00 | 13 in stock | View | |
| LS-2BR30030 | 312 x 30 mm | 14.4 W | $199.00 | 14 in stock | View | |
| LS-2BR32530 | 337 x 30 mm | 15.6 W | $209.00 | 14 in stock | View | |
| LS-2BR33016 | 342 x 16 mm | 7.9 W | $219.00 | 12 in stock | View | |
| LS-2BR36016 | 372 x 16 mm | 8.6 W | $229.00 | 11 in stock | View | |
| LS-2BR35030 | 362 x 30 mm | 16.8 W | $229.00 | 12 in stock | View | |
| LS-2BR37530 | 387 x 30 mm | 18 W | $239.00 | 15 in stock | View | |
| LS-2BR39016 | 402 x 16 mm | 9.4 W | $249.00 | 14 in stock | View | |
| LS-2BR40030 | 412 x 30 mm | 19.2 W | $249.00 | 16 in stock | View | |
| LS-2BR42016 | 432 x 16 mm | 10.1 W | $259.00 | 15 in stock | View | |
| LS-2BR42530 | 437 x 30 mm | 20.4 W | $269.00 | 13 in stock | View | |
| LS-2BR45016 | 462 x 16 mm | 10.8 W | $279.00 | 15 in stock | View | |
| LS-2BR45030 | 462 x 30 mm | 21.6 W | $279.00 | 16 in stock | View | |
| LS-2BR48016 | 492 x 16 mm | 11.5 W | $289.00 | 10 in stock | View | |
| LS-2BR47530 | 487 x 30 mm | 22.8 W | $289.00 | 13 in stock | View | |
| LS-2BR51016 | 522 x 16 mm | 12.2 W | $309.00 | 16 in stock | View | |
| LS-2BR50030 | 512 x 30 mm | 24 W | $309.00 | 15 in stock | View | |
| LS-2BR60030 | 612 x 30 mm | 28.8 W | $359.00 | 14 in stock | View | |
| LS-2BR80030 | 800 x 30 mm | $459.00 | 3 in stock | View | ||
| LS-2BR90030 | 912 x 30 mm | 43.2 W | $519.00 | 13 in stock | View | |
| LS-2BR97030 | 970 x 30 mm | 46.8 W | $549.00 | 11 in stock | View | |
| LS-2BR100030 | 1012 x 30 mm | 48 W | $569.00 | 11 in stock | View | |
| LS-2BR120030 | 1212 x 30 mm | 57.6 W | $669.00 | 15 in stock | View | |
| LS-2BR180030 | 1812 x 30 mm | 86.4 W | $989.00 | 13 in stock | View |
