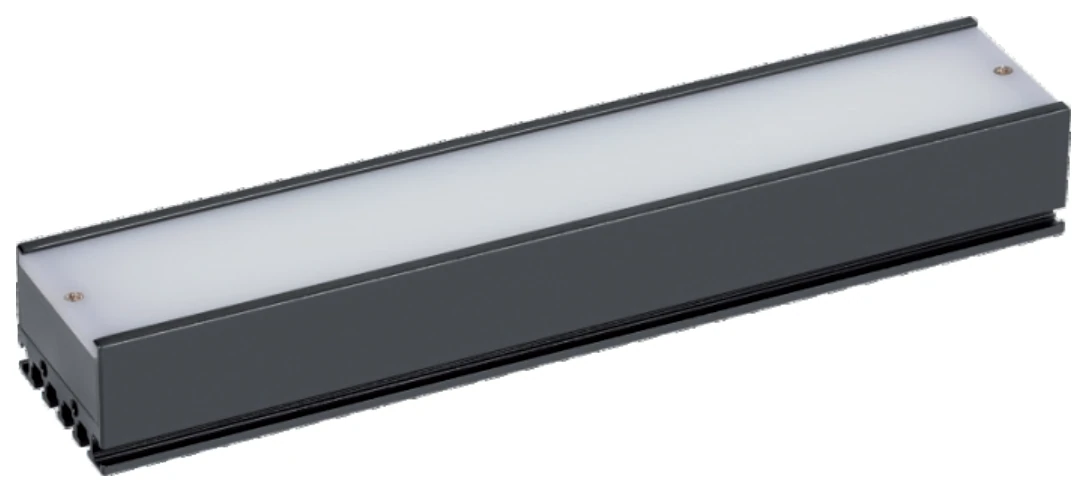

Diffused bar light (2BD series)

The Diffused bar light (2BD series) is a range of 165 bar lights from LumaSpec Vision, from $49.00. It comes in 165 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions	32 mm, 57 x 12 mm, 57 x 22 mm, 102 x 12 mm, 102 x 22 mm, 102 x 32 mm, 147 x 12 mm, 147 x 22 mm, 147 x 32 mm, 192 x 12 mm, 192 x 22 mm, 192 x 32 mm, 237 x 12 mm, 237 x 22 mm, 237 x 32 mm, 282 x 12 mm and 149 more
Colour	Red, Green, Blue, White
Type	Multi-colour RGB
Voltage	24 V

Features

Flexible size design
Custom color selection and combination
Patch lamp beads with large divergence angle
High uniformity diffuse plate, can also be used as a back light

Typical uses

Wide field lighting
PCB board character inspection
QR code inspection
Positioning inspection for mobile phone screen
Hardware surface defect inspection
High angle uniform irradiation

All 165 models in the Diffused bar light (2BD series)

Model	Size	Power	Price	Availability	Link
LS-2BD5738-RGBW	32 mm	1.7 W	$49.00	15 in stock	View
LS-2BD5718-RGBW	57 x 12 mm	0.5 W	$69.00	13 in stock	View
LS-2BD5728-RGBW	57 x 22 mm	1.3 W	$69.00	14 in stock	View
LS-2BD10218-RGBW	102 x 12 mm	1 W	$89.00	12 in stock	View
LS-2BD10228-RGBW	102 x 22 mm	2.6 W	$89.00	11 in stock	View
LS-2BD10238-RGBW	102 x 32 mm	3.4 W	$89.00	15 in stock	View
LS-2BD14718-RGBW	147 x 12 mm	1.5 W	$109.00	14 in stock	View
LS-2BD14728-RGBW	147 x 22 mm	3.9 W	$109.00	12 in stock	View
LS-2BD14738-RGBW	147 x 32 mm	5.1 W	$109.00	17 in stock	View
LS-2BD19218-RGBW	192 x 12 mm	2 W	$139.00	12 in stock	View
LS-2BD19228-RGBW	192 x 22 mm	5.2 W	$139.00	14 in stock	View
LS-2BD19238-RGBW	192 x 32 mm	6.8 W	$139.00	10 in stock	View
LS-2BD23718-RGBW	237 x 12 mm	2.5 W	$159.00	14 in stock	View
LS-2BD23728-RGBW	237 x 22 mm	6.5 W	$159.00	11 in stock	View
LS-2BD23738-RGBW	237 x 32 mm	8.5 W	$159.00	20 in stock	View
LS-2BD28218-RGBW	282 x 12 mm	3 W	$179.00	12 in stock	View
LS-2BD28228-RGBW	282 x 22 mm	7.8 W	$179.00	16 in stock	View
LS-2BD28238-RGBW	282 x 32 mm	10.2 W	$179.00	11 in stock	View
LS-2BD32718-RGBW	327 x 12 mm	3.5 W	$209.00	17 in stock	View
LS-2BD32728-RGBW	327 x 22 mm	9.1 W	$209.00	16 in stock	View
LS-2BD32738-RGBW	327 x 32 mm	11.9 W	$209.00	16 in stock	View
LS-2BD37218-RGBW	372 x 12 mm	4 W	$229.00	13 in stock	View
LS-2BD37228-RGBW	372 x 22 mm	10.4 W	$229.00	12 in stock	View
LS-2BD37238-RGBW	372 x 32 mm	13.6 W	$229.00	17 in stock	View
LS-2BD41718-RGBW	417 x 12 mm	4.5 W	$259.00	17 in stock	View
LS-2BD41728-RGBW	417 x 22 mm	11.7 W	$259.00	13 in stock	View
LS-2BD41738-RGBW	417 x 32 mm	15.3 W	$259.00	16 in stock	View
LS-2BD46218-RGBW	462 x 12 mm	5 W	$279.00	16 in stock	View
LS-2BD46228-RGBW	462 x 22 mm	13 W	$279.00	17 in stock	View
LS-2BD46238-RGBW	462 x 32 mm	17 W	$279.00	19 in stock	View
LS-2BD50718-RGBW	507 x 12 mm	5.5 W	$299.00	15 in stock	View
LS-2BD50728-RGBW	507 x 22 mm	14.3 W	$299.00	13 in stock	View
LS-2BD50738-RGBW	507 x 32 mm	18.7 W	$299.00	15 in stock	View
LS-2BD55218-RGBW	552 x 12 mm	6 W	$329.00	14 in stock	View
LS-2BD55228-RGBW	552 x 22 mm	15.6 W	$329.00	17 in stock	View
LS-2BD55238-RGBW	552 x 32 mm	20.4 W	$329.00	14 in stock	View
LS-2BD59718-RGBW	597 x 12 mm	6.5 W	$349.00	12 in stock	View
LS-2BD59728-RGBW	597 x 22 mm	16.9 W	$349.00	13 in stock	View
LS-2BD59738-RGBW	597 x 32 mm	22.1 W	$349.00	15 in stock	View
LS-2BD64218-RGBW	642 x 12 mm	7 W	$369.00	16 in stock	View
LS-2BD64228-RGBW	642 x 22 mm	18.2 W	$369.00	17 in stock	View
LS-2BD64238-RGBW	642 x 32 mm	23.8 W	$369.00	16 in stock	View
LS-2BD68718-RGBW	687 x 12 mm	7.5 W	$399.00	18 in stock	View
LS-2BD68728-RGBW	687 x 22 mm	19.5 W	$399.00	14 in stock	View
LS-2BD68738-RGBW	687 x 32 mm	25.5 W	$399.00	14 in stock	View
LS-2BD73218-RGBW	732 x 12 mm	8 W	$419.00	14 in stock	View
LS-2BD73228-RGBW	732 x 22 mm	20.8 W	$419.00	14 in stock	View
LS-2BD73238-RGBW	732 x 32 mm	27.2 W	$419.00	11 in stock	View
LS-2BD77718-RGBW	777 x 12 mm	8.5 W	$439.00	9 in stock	View
LS-2BD77728-RGBW	777 x 22 mm	22.1 W	$439.00	15 in stock	View
LS-2BD77738-RGBW	777 x 32 mm	28.9 W	$439.00	14 in stock	View
LS-2BD82218-RGBW	822 x 12 mm	9 W	$469.00	11 in stock	View
LS-2BD82228-RGBW	822 x 22 mm	23.4 W	$469.00	13 in stock	View
LS-2BD82238-RGBW	822 x 32 mm	30.6 W	$469.00	18 in stock	View
LS-2BD86718-RGBW	867 x 12 mm	9.5 W	$489.00	9 in stock	View
LS-2BD86728-RGBW	867 x 22 mm	24.7 W	$489.00	14 in stock	View
LS-2BD86738-RGBW	867 x 32 mm	32.3 W	$489.00	14 in stock	View
LS-2BD91218-RGBW	912 x 12 mm	10 W	$519.00	15 in stock	View
LS-2BD91228-RGBW	912 x 22 mm	26 W	$519.00	15 in stock	View
LS-2BD91238-RGBW	912 x 32 mm	34 W	$519.00	16 in stock	View
LS-2BD95718-RGBW	957 x 12 mm	10.5 W	$539.00	15 in stock	View
LS-2BD95728-RGBW	957 x 22 mm	27.3 W	$539.00	14 in stock	View
LS-2BD95738-RGBW	957 x 32 mm	35.7 W	$539.00	11 in stock	View
LS-2BD100218-RGBW	1002 x 12 mm	11 W	$559.00	15 in stock	View
LS-2BD100228-RGBW	1002 x 22 mm	28.6 W	$559.00	14 in stock	View
LS-2BD100238-RGBW	1002 x 32 mm	37.4 W	$559.00	16 in stock	View
LS-2BD104718-RGBW	1047 x 12 mm	11.5 W	$589.00	13 in stock	View
LS-2BD104728-RGBW	1047 x 22 mm	29.9 W	$589.00	14 in stock	View
LS-2BD104738-RGBW	1047 x 32 mm	39.1 W	$589.00	14 in stock	View
LS-2BD109218-RGBW	1092 x 12 mm	12 W	$609.00	13 in stock	View
LS-2BD109228-RGBW	1092 x 22 mm	31.2 W	$609.00	15 in stock	View
LS-2BD109238-RGBW	1092 x 32 mm	40.8 W	$609.00	18 in stock	View
LS-2BD113718-RGBW	1137 x 12 mm	12.5 W	$629.00	16 in stock	View
LS-2BD113728-RGBW	1137 x 22 mm	32.5 W	$629.00	16 in stock	View
LS-2BD113738-RGBW	1137 x 32 mm	42.5 W	$629.00	17 in stock	View
LS-2BD118218-RGBW	1182 x 12 mm	13 W	$659.00	15 in stock	View
LS-2BD118228-RGBW	1182 x 22 mm	33.8 W	$659.00	14 in stock	View
LS-2BD118238-RGBW	1182 x 32 mm	44.2 W	$659.00	9 in stock	View
LS-2BD122718-RGBW	1227 x 12 mm	13.5 W	$679.00	15 in stock	View
LS-2BD122728-RGBW	1227 x 22 mm	35.1 W	$679.00	13 in stock	View
LS-2BD122738-RGBW	1227 x 32 mm	45.9 W	$679.00	12 in stock	View
LS-2BD127218-RGBW	1272 x 12 mm	14 W	$699.00	15 in stock	View
LS-2BD127228-RGBW	1272 x 22 mm	36.4 W	$699.00	12 in stock	View
LS-2BD127238-RGBW	1272 x 32 mm	47.6 W	$699.00	12 in stock	View
LS-2BD131718-RGBW	1317 x 12 mm	14.5 W	$729.00	12 in stock	View
LS-2BD131728-RGBW	1317 x 22 mm	37.7 W	$729.00	14 in stock	View
LS-2BD131738-RGBW	1317 x 32 mm	49.3 W	$729.00	15 in stock	View
LS-2BD136218-RGBW	1362 x 12 mm	15 W	$749.00	16 in stock	View
LS-2BD136228-RGBW	1362 x 22 mm	39 W	$749.00	17 in stock	View
LS-2BD136238-RGBW	1362 x 32 mm	51 W	$749.00	17 in stock	View
LS-2BD140718-RGBW	1407 x 12 mm	15.5 W	$779.00	9 in stock	View
LS-2BD140728-RGBW	1407 x 22 mm	40.3 W	$779.00	14 in stock	View
LS-2BD140738-RGBW	1407 x 32 mm	52.7 W	$779.00	12 in stock	View
LS-2BD145218-RGBW	1452 x 12 mm	16 W	$799.00	12 in stock	View
LS-2BD145228-RGBW	1452 x 22 mm	41.6 W	$799.00	16 in stock	View
LS-2BD145238-RGBW	1452 x 32 mm	54.5 W	$799.00	15 in stock	View
LS-2BD149718-RGBW	1497 x 12 mm	16.5 W	$819.00	16 in stock	View
LS-2BD149728-RGBW	1497 x 22 mm	42.9 W	$819.00	9 in stock	View
LS-2BD149738-RGBW	1497 x 32 mm	56.1 W	$819.00	17 in stock	View
LS-2BD154218-RGBW	1542 x 12 mm	17 W	$849.00	13 in stock	View
LS-2BD154228-RGBW	1542 x 22 mm	44.2 W	$849.00	12 in stock	View
LS-2BD154238-RGBW	1542 x 32 mm	57.8 W	$849.00	10 in stock	View
LS-2BD158718-RGBW	1587 x 12 mm	17.5 W	$869.00	14 in stock	View
LS-2BD158728-RGBW	1587 x 22 mm	45.5 W	$869.00	16 in stock	View
LS-2BD158738-RGBW	1587 x 32 mm	59.5 W	$869.00	13 in stock	View
LS-2BD163218-RGBW	1632 x 12 mm	18 W	$889.00	15 in stock	View
LS-2BD163228-RGBW	1632 x 22 mm	46.8 W	$889.00	17 in stock	View
LS-2BD163238-RGBW	1632 x 32 mm	61.2 W	$889.00	10 in stock	View
LS-2BD167718-RGBW	1677 x 12 mm	18.5 W	$919.00	12 in stock	View
LS-2BD167728-RGBW	1677 x 22 mm	48.1 W	$919.00	12 in stock	View
LS-2BD167738-RGBW	1677 x 32 mm	62.9 W	$919.00	12 in stock	View
LS-2BD172218-RGBW	1722 x 12 mm	19 W	$939.00	12 in stock	View
LS-2BD172228-RGBW	1722 x 22 mm	49.4 W	$939.00	16 in stock	View
LS-2BD172238-RGBW	1722 x 32 mm	64.6 W	$939.00	16 in stock	View
LS-2BD176718-RGBW	1767 x 12 mm	19.5 W	$959.00	14 in stock	View
LS-2BD176728-RGBW	1767 x 22 mm	50.7 W	$959.00	13 in stock	View
LS-2BD176738-RGBW	1767 x 32 mm	66.3 W	$959.00	11 in stock	View
LS-2BD181218-RGBW	1812 x 12 mm	20 W	$989.00	13 in stock	View
LS-2BD181228-RGBW	1812 x 22 mm	52 W	$989.00	11 in stock	View
LS-2BD181238-RGBW	1812 x 32 mm	68 W	$989.00	13 in stock	View
LS-2BD185718-RGBW	1857 x 12 mm	20.5 W	$1,009.00	15 in stock	View
LS-2BD185728-RGBW	1857 x 22 mm	53.3 W	$1,009.00	13 in stock	View
LS-2BD185738-RGBW	1857 x 32 mm	69.7 W	$1,009.00	15 in stock	View
LS-2BD190218-RGBW	1902 x 12 mm	21 W	$1,039.00	10 in stock	View
LS-2BD190228-RGBW	1902 x 22 mm	54.6 W	$1,039.00	14 in stock	View
LS-2BD190238-RGBW	1902 x 32 mm	71.4 W	$1,039.00	13 in stock	View
LS-2BD194718-RGBW	1947 x 12 mm	21.5 W	$1,059.00	17 in stock	View
LS-2BD194728-RGBW	1947 x 22 mm	55.9 W	$1,059.00	12 in stock	View
LS-2BD194738-RGBW	1947 x 32 mm	73.1 W	$1,059.00	16 in stock	View
LS-2BD199218-RGBW	1992 x 12 mm	22 W	$1,079.00	14 in stock	View
LS-2BD199228-RGBW	1992 x 22 mm	57.2 W	$1,079.00	15 in stock	View
LS-2BD199238-RGBW	1992 x 32 mm	74.8 W	$1,079.00	12 in stock	View
LS-2BD203718-RGBW	2037 x 12 mm	22.5 W	$1,109.00	10 in stock	View
LS-2BD203728-RGBW	2037 x 22 mm	58.5 W	$1,109.00	14 in stock	View
LS-2BD203738-RGBW	2037 x 32 mm	76.5 W	$1,109.00	12 in stock	View
LS-2BD208218-RGBW	2082 x 12 mm	23 W	$1,129.00	14 in stock	View
LS-2BD208228-RGBW	2082 x 22 mm	59.8 W	$1,129.00	12 in stock	View
LS-2BD208238-RGBW	2082 x 32 mm	78.2 W	$1,129.00	12 in stock	View
LS-2BD212718-RGBW	2127 x 12 mm	23.5 W	$1,149.00	14 in stock	View
LS-2BD212728-RGBW	2127 x 22 mm	61.1 W	$1,149.00	13 in stock	View
LS-2BD212738-RGBW	2127 x 32 mm	79.9 W	$1,149.00	13 in stock	View
LS-2BD217218-RGBW	2172 x 12 mm	24 W	$1,179.00	12 in stock	View
LS-2BD217228-RGBW	2172 x 22 mm	62.4 W	$1,179.00	12 in stock	View
LS-2BD217238-RGBW	2172 x 32 mm	81.6 W	$1,179.00	17 in stock	View
LS-2BD221718-RGBW	2217 x 12 mm	24.5 W	$1,199.00	17 in stock	View
LS-2BD221728-RGBW	2217 x 22 mm	63.7 W	$1,199.00	15 in stock	View
LS-2BD221738-RGBW	2217 x 32 mm	83.3 W	$1,199.00	12 in stock	View
LS-2BD226218-RGBW	2262 x 12 mm	25 W	$1,219.00	14 in stock	View
LS-2BD226228-RGBW	2262 x 22 mm	65 W	$1,219.00	17 in stock	View
LS-2BD226238-RGBW	2262 x 32 mm	85 W	$1,219.00	16 in stock	View
LS-2BD230718-RGBW	2307 x 12 mm	25.5 W	$1,249.00	13 in stock	View
LS-2BD230728-RGBW	2307 x 22 mm	66.3 W	$1,249.00	13 in stock	View
LS-2BD230738-RGBW	2307 x 32 mm	86.7 W	$1,249.00	13 in stock	View
LS-2BD235218-RGBW	2352 x 12 mm	26 W	$1,269.00	15 in stock	View
LS-2BD235228-RGBW	2352 x 22 mm	67.6 W	$1,269.00	12 in stock	View
LS-2BD235238-RGBW	2352 x 32 mm	88.4 W	$1,269.00	11 in stock	View
LS-2BD239718-RGBW	2397 x 12 mm	26.5 W	$1,289.00	16 in stock	View
LS-2BD239728-RGBW	2397 x 22 mm	68.9 W	$1,289.00	13 in stock	View
LS-2BD239738-RGBW	2397 x 32 mm	90.1 W	$1,289.00	11 in stock	View
LS-2BD244218-RGBW	2442 x 12 mm	27 W	$1,319.00	14 in stock	View
LS-2BD244228-RGBW	2442 x 22 mm	70.2 W	$1,319.00	19 in stock	View
LS-2BD244238-RGBW	2442 x 32 mm	91.8 W	$1,319.00	10 in stock	View
LS-2BD248718-RGBW	2487 x 12 mm	27.5 W	$1,339.00	18 in stock	View
LS-2BD248728-RGBW	2487 x 22 mm	71.5 W	$1,339.00	18 in stock	View
LS-2BD248738-RGBW	2487 x 32 mm	93.5 W	$1,339.00	14 in stock	View
