Bar lights · 8 models · from $409.00

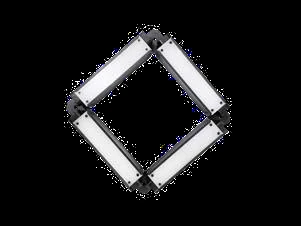

Strip combination light source, 17 series
The Strip combination light source, 17 series is a range of 8 bar lights from LumaSpec Vision, from $409.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 113 mm frame, 50 mm opening, 138 mm frame, 50 mm opening, 140 mm frame, 76 mm opening, 163 mm frame, 101 mm opening, 190 mm frame, 126 mm opening, 230 mm frame, 151 mm opening, 270 mm frame, 202 mm opening, 300 mm frame, 227 mm opening |
|---|---|
| Colour | Red, Green, Blue, White, Infrared, UV |
| Type | Strip / combination |
| Voltage | 24 V |
Features
- Light source angle can be freely adjusted, each bar independently controlled
- Good versatility, can be freely combined, suitable for many occasions; first choice for large-format lighting
- Size can be customized according to different needs
Typical uses
- PCB substrate inspection
- Electronic component inspection
- Mark point positioning
- Defect detection, character detection and positioning recognition of large-format products
- Box character recognition
- Hole in phone case
All 8 models in the Strip combination light source, 17 series
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-LM5050-17 | 113 mm frame, 50 mm opening | 1.73 W | $409.00 | 22 in stock | View | |
| LS-LM7550-17 | 138 mm frame, 50 mm opening | 2.13 W | $459.00 | 21 in stock | View | |
| LS-LM7575-17 | 140 mm frame, 76 mm opening | 2.59 W | $469.00 | 24 in stock | View | |
| LS-LM100100-17 | 163 mm frame, 101 mm opening | 3.46 W | $519.00 | 21 in stock | View | |
| LS-LM125125-17 | 190 mm frame, 126 mm opening | 4.29 W | $569.00 | 22 in stock | View | |
| LS-LM150150-17 | 230 mm frame, 151 mm opening | 5.18 W | $659.00 | 24 in stock | View | |
| LS-LM200200-17 | 270 mm frame, 202 mm opening | 14 W | $739.00 | 19 in stock | View | |
| LS-LM225225-17 | 300 mm frame, 227 mm opening | 15 W | $799.00 | 22 in stock | View |
