Bar lights · 126 models · from $49.00

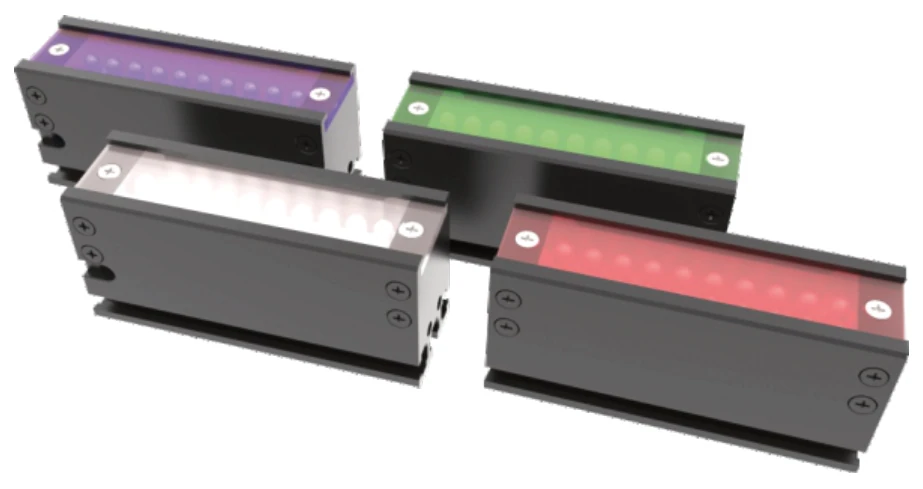

Bar light (BS / 2BS series)
The Bar light (BS / 2BS series) is a range of 126 bar lights from LumaSpec Vision, from $49.00. It comes in 126 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 32 mm, 57 x 12 mm, 57 x 22 mm, 102 x 12 mm, 102 x 22 mm, 102 x 32 mm, 147 x 12 mm, 147 x 22 mm, 147 x 32 mm, 192 x 12 mm, 192 x 22 mm, 192 x 32 mm, 237 x 12 mm, 237 x 22 mm, 237 x 32 mm, 282 x 12 mm and 110 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Multi-colour RGB |
| Voltage | 24 V |
Features
- Flexible size design
- Irradiation angle can be adjusted according to testing requirements
- Custom color selection and combination
- Optional diffuse plate to make light diffusion uniform
Typical uses
- Wide field lighting
- Various character recognition
- Various appearance inspection
- Various damage and defect inspection
- QR codes, one-dimension barcode reading
- Inspection of components on substrates
All 126 models in the Bar light (BS / 2BS series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2BS5738-RGBW | 32 mm | 3.6 W | $49.00 | 15 in stock | View | |
| LS-2BS5718-RGBW | 57 x 12 mm | 1.2 W | $69.00 | 12 in stock | View | |
| LS-2BS5728-RGBW | 57 x 22 mm | 2.4 W | $69.00 | 14 in stock | View | |
| LS-2BS10218-RGBW | 102 x 12 mm | 2.4 W | $89.00 | 14 in stock | View | |
| LS-2BS10228-RGBW | 102 x 22 mm | 4.8 W | $89.00 | 12 in stock | View | |
| LS-2BS10238-RGBW | 102 x 32 mm | 7.1 W | $89.00 | 13 in stock | View | |
| LS-2BS14718-RGBW | 147 x 12 mm | 3.6 W | $109.00 | 13 in stock | View | |
| LS-2BS14728-RGBW | 147 x 22 mm | 7.1 W | $109.00 | 14 in stock | View | |
| LS-2BS14738-RGBW | 147 x 32 mm | 11 W | $109.00 | 12 in stock | View | |
| LS-2BS19218-RGBW | 192 x 12 mm | 4.8 W | $139.00 | 14 in stock | View | |
| LS-2BS19228-RGBW | 192 x 22 mm | 9.5 W | $139.00 | 14 in stock | View | |
| LS-2BS19238-RGBW | 192 x 32 mm | 15 W | $139.00 | 15 in stock | View | |
| LS-2BS23718-RGBW | 237 x 12 mm | 5.9 W | $159.00 | 14 in stock | View | |
| LS-2BS23728-RGBW | 237 x 22 mm | 12 W | $159.00 | 15 in stock | View | |
| LS-2BS23738-RGBW | 237 x 32 mm | 18 W | $159.00 | 13 in stock | View | |
| LS-2BS28218-RGBW | 282 x 12 mm | 7.1 W | $179.00 | 14 in stock | View | |
| LS-2BS28228-RGBW | 282 x 22 mm | 15 W | $179.00 | 14 in stock | View | |
| LS-2BS28238-RGBW | 282 x 32 mm | 22 W | $179.00 | 16 in stock | View | |
| LS-2BS32718-RGBW | 327 x 12 mm | 8.3 W | $209.00 | 17 in stock | View | |
| LS-2BS32728-RGBW | 327 x 22 mm | 17 W | $209.00 | 15 in stock | View | |
| LS-2BS32738-RGBW | 327 x 32 mm | 25 W | $209.00 | 16 in stock | View | |
| LS-2BS37218-RGBW | 372 x 12 mm | 9.5 W | $229.00 | 14 in stock | View | |
| LS-2BS37228-RGBW | 372 x 22 mm | 19 W | $229.00 | 13 in stock | View | |
| LS-2BS37238-RGBW | 372 x 32 mm | 29 W | $229.00 | 15 in stock | View | |
| LS-2BS41718-RGBW | 417 x 12 mm | 11 W | $259.00 | 13 in stock | View | |
| LS-2BS41728-RGBW | 417 x 22 mm | 22 W | $259.00 | 13 in stock | View | |
| LS-2BS41738-RGBW | 417 x 32 mm | 32 W | $259.00 | 17 in stock | View | |
| LS-2BS46218-RGBW | 462 x 12 mm | 12 W | $279.00 | 12 in stock | View | |
| LS-2BS46228-RGBW | 462 x 22 mm | 24 W | $279.00 | 15 in stock | View | |
| LS-2BS46238-RGBW | 462 x 32 mm | 36 W | $279.00 | 17 in stock | View | |
| LS-2BS50718-RGBW | 507 x 12 mm | 13.2 W | $299.00 | 13 in stock | View | |
| LS-2BS50728-RGBW | 507 x 22 mm | 26.4 W | $299.00 | 10 in stock | View | |
| LS-2BS50738-RGBW | 507 x 32 mm | 44 W | $299.00 | 16 in stock | View | |
| LS-2BS55218-RGBW | 552 x 12 mm | 14.4 W | $329.00 | 9 in stock | View | |
| LS-2BS55228-RGBW | 552 x 22 mm | 28.8 W | $329.00 | 11 in stock | View | |
| LS-2BS55238-RGBW | 552 x 32 mm | 43.2 W | $329.00 | 19 in stock | View | |
| LS-2BS59718-RGBW | 597 x 12 mm | 16 W | $349.00 | 17 in stock | View | |
| LS-2BS59728-RGBW | 597 x 22 mm | 32 W | $349.00 | 10 in stock | View | |
| LS-2BS59738-RGBW | 597 x 32 mm | 47 W | $349.00 | 17 in stock | View | |
| LS-2BS64218-RGBW | 642 x 12 mm | 17 W | $369.00 | 11 in stock | View | |
| LS-2BS64228-RGBW | 642 x 22 mm | 33.6 W | $369.00 | 12 in stock | View | |
| LS-2BS64238-RGBW | 642 x 32 mm | 50.4 W | $369.00 | 16 in stock | View | |
| LS-2BS68718-RGBW | 687 x 12 mm | 18 W | $399.00 | 19 in stock | View | |
| LS-2BS68728-RGBW | 687 x 22 mm | 36 W | $399.00 | 13 in stock | View | |
| LS-2BS68738-RGBW | 687 x 32 mm | 54 W | $399.00 | 18 in stock | View | |
| LS-2BS73218-RGBW | 732 x 12 mm | 19.2 W | $419.00 | 19 in stock | View | |
| LS-2BS73228-RGBW | 732 x 22 mm | 39 W | $419.00 | 16 in stock | View | |
| LS-2BS73238-RGBW | 732 x 32 mm | 58 W | $419.00 | 17 in stock | View | |
| LS-2BS77718-RGBW | 777 x 12 mm | 20.4 W | $439.00 | 16 in stock | View | |
| LS-2BS77728-RGBW | 777 x 22 mm | 40.8 W | $439.00 | 13 in stock | View | |
| LS-2BS77738-RGBW | 777 x 32 mm | 61.2 W | $439.00 | 16 in stock | View | |
| LS-2BS82218-RGBW | 822 x 12 mm | 22 W | $469.00 | 14 in stock | View | |
| LS-2BS82228-RGBW | 822 x 22 mm | 44 W | $469.00 | 12 in stock | View | |
| LS-2BS82238-RGBW | 822 x 32 mm | 65 W | $469.00 | 16 in stock | View | |
| LS-2BS86718-RGBW | 867 x 12 mm | 22.8 W | $489.00 | 12 in stock | View | |
| LS-2BS86728-RGBW | 867 x 22 mm | 45.6 W | $489.00 | 11 in stock | View | |
| LS-2BS86738-RGBW | 867 x 32 mm | 68.4 W | $489.00 | 16 in stock | View | |
| LS-2BS91218-RGBW | 912 x 12 mm | 24 W | $519.00 | 17 in stock | View | |
| LS-2BS91228-RGBW | 912 x 22 mm | 48 W | $519.00 | 16 in stock | View | |
| LS-2BS91238-RGBW | 912 x 32 mm | 72 W | $519.00 | 14 in stock | View | |
| LS-2BS95718-RGBW | 957 x 12 mm | 25.5 W | $539.00 | 16 in stock | View | |
| LS-2BS95728-RGBW | 957 x 22 mm | 50.4 W | $539.00 | 18 in stock | View | |
| LS-2BS95738-RGBW | 957 x 32 mm | 76 W | $539.00 | 14 in stock | View | |
| LS-2BS100218-RGBW | 1002 x 12 mm | 26.4 W | $559.00 | 11 in stock | View | |
| LS-2BS100228-RGBW | 1002 x 22 mm | 52.4 W | $559.00 | 17 in stock | View | |
| LS-2BS100238-RGBW | 1002 x 32 mm | 79.2 W | $559.00 | 12 in stock | View | |
| LS-2BS104718-RGBW | 1047 x 12 mm | 27.6 W | $589.00 | 18 in stock | View | |
| LS-2BS104728-RGBW | 1047 x 22 mm | 55.2 W | $589.00 | 10 in stock | View | |
| LS-2BS104738-RGBW | 1047 x 32 mm | 82.8 W | $589.00 | 12 in stock | View | |
| LS-2BS109218-RGBW | 1092 x 12 mm | 28.8 W | $609.00 | 17 in stock | View | |
| LS-2BS109228-RGBW | 1092 x 22 mm | 57.6 W | $609.00 | 15 in stock | View | |
| LS-2BS109238-RGBW | 1092 x 32 mm | 86.4 W | $609.00 | 16 in stock | View | |
| LS-2BS113718-RGBW | 1137 x 12 mm | 30 W | $629.00 | 14 in stock | View | |
| LS-2BS113728-RGBW | 1137 x 22 mm | 60 W | $629.00 | 14 in stock | View | |
| LS-2BS113738-RGBW | 1137 x 32 mm | 90 W | $629.00 | 19 in stock | View | |
| LS-2BS118218-RGBW | 1182 x 12 mm | 31.2 W | $659.00 | 14 in stock | View | |
| LS-2BS118228-RGBW | 1182 x 22 mm | 62.4 W | $659.00 | 14 in stock | View | |
| LS-2BS118238-RGBW | 1182 x 32 mm | 93.6 W | $659.00 | 12 in stock | View | |
| LS-2BS122718-RGBW | 1227 x 12 mm | 32.4 W | $679.00 | 12 in stock | View | |
| LS-2BS122728-RGBW | 1227 x 22 mm | 64.8 W | $679.00 | 14 in stock | View | |
| LS-2BS122738-RGBW | 1227 x 32 mm | 97.2 W | $679.00 | 9 in stock | View | |
| LS-2BS127218-RGBW | 1272 x 12 mm | 33.6 W | $699.00 | 13 in stock | View | |
| LS-2BS127228-RGBW | 1272 x 22 mm | 67.2 W | $699.00 | 13 in stock | View | |
| LS-2BS127238-RGBW | 1272 x 32 mm | 100.8 W | $699.00 | 12 in stock | View | |
| LS-2BS131718-RGBW | 1317 x 12 mm | 34.8 W | $729.00 | 12 in stock | View | |
| LS-2BS131728-RGBW | 1317 x 22 mm | 69.6 W | $729.00 | 17 in stock | View | |
| LS-2BS131738-RGBW | 1317 x 32 mm | 104.4 W | $729.00 | 12 in stock | View | |
| LS-2BS136218-RGBW | 1362 x 12 mm | 36 W | $749.00 | 12 in stock | View | |
| LS-2BS136228-RGBW | 1362 x 22 mm | 72 W | $749.00 | 17 in stock | View | |
| LS-2BS136238-RGBW | 1362 x 32 mm | 108 W | $749.00 | 15 in stock | View | |
| LS-2BS140718-RGBW | 1407 x 12 mm | 37.2 W | $779.00 | 16 in stock | View | |
| LS-2BS140728-RGBW | 1407 x 22 mm | 74.4 W | $779.00 | 14 in stock | View | |
| LS-2BS140738-RGBW | 1407 x 32 mm | 111.6 W | $779.00 | 13 in stock | View | |
| LS-2BS145218-RGBW | 1452 x 12 mm | 38.4 W | $799.00 | 13 in stock | View | |
| LS-2BS145228-RGBW | 1452 x 22 mm | 76.8 W | $799.00 | 12 in stock | View | |
| LS-2BS145238-RGBW | 1452 x 32 mm | 115.2 W | $799.00 | 15 in stock | View | |
| LS-2BS149718-RGBW | 1497 x 12 mm | 39.6 W | $819.00 | 13 in stock | View | |
| LS-2BS149728-RGBW | 1497 x 22 mm | 79.2 W | $819.00 | 14 in stock | View | |
| LS-2BS149738-RGBW | 1497 x 32 mm | 118.8 W | $819.00 | 15 in stock | View | |
| LS-2BS154218-RGBW | 1542 x 12 mm | 40.8 W | $849.00 | 17 in stock | View | |
| LS-2BS154228-RGBW | 1542 x 22 mm | 81.6 W | $849.00 | 12 in stock | View | |
| LS-2BS154238-RGBW | 1542 x 32 mm | 122.4 W | $849.00 | 14 in stock | View | |
| LS-2BS158718-RGBW | 1587 x 12 mm | 42 W | $869.00 | 12 in stock | View | |
| LS-2BS158728-RGBW | 1587 x 22 mm | 84 W | $869.00 | 9 in stock | View | |
| LS-2BS158738-RGBW | 1587 x 32 mm | 126 W | $869.00 | 14 in stock | View | |
| LS-2BS163218-RGBW | 1632 x 12 mm | 43.2 W | $889.00 | 16 in stock | View | |
| LS-2BS163228-RGBW | 1632 x 22 mm | 86.4 W | $889.00 | 9 in stock | View | |
| LS-2BS163238-RGBW | 1632 x 32 mm | 129.6 W | $889.00 | 15 in stock | View | |
| LS-2BS167718-RGBW | 1677 x 12 mm | 44.4 W | $919.00 | 12 in stock | View | |
| LS-2BS167728-RGBW | 1677 x 22 mm | 88.8 W | $919.00 | 13 in stock | View | |
| LS-2BS167738-RGBW | 1677 x 32 mm | 133.2 W | $919.00 | 15 in stock | View | |
| LS-2BS172218-RGBW | 1722 x 12 mm | 45.6 W | $939.00 | 17 in stock | View | |
| LS-2BS172228-RGBW | 1722 x 22 mm | 91.2 W | $939.00 | 14 in stock | View | |
| LS-2BS172238-RGBW | 1722 x 32 mm | 136.8 W | $939.00 | 13 in stock | View | |
| LS-2BS176718-RGBW | 1767 x 12 mm | 46.8 W | $959.00 | 16 in stock | View | |
| LS-2BS176728-RGBW | 1767 x 22 mm | 93.6 W | $959.00 | 13 in stock | View | |
| LS-2BS176738-RGBW | 1767 x 32 mm | 140.4 W | $959.00 | 11 in stock | View | |
| LS-2BS181218-RGBW | 1812 x 12 mm | 48 W | $989.00 | 11 in stock | View | |
| LS-2BS181228-RGBW | 1812 x 22 mm | 96 W | $989.00 | 16 in stock | View | |
| LS-2BS181238-RGBW | 1812 x 32 mm | 144 W | $989.00 | 16 in stock | View | |
| LS-2BS185718-RGBW | 1857 x 12 mm | 49.2 W | $1,009.00 | 11 in stock | View | |
| LS-2BS185728-RGBW | 1857 x 22 mm | 98.4 W | $1,009.00 | 11 in stock | View | |
| LS-2BS185738-RGBW | 1857 x 32 mm | 147.6 W | $1,009.00 | 14 in stock | View | |
| LS-2BS190218-RGBW | 1902 x 12 mm | 50.4 W | $1,039.00 | 16 in stock | View | |
| LS-2BS190228-RGBW | 1902 x 22 mm | 100.8 W | $1,039.00 | 10 in stock | View | |
| LS-2BS190238-RGBW | 1902 x 32 mm | 151.2 W | $1,039.00 | 17 in stock | View |
