Bar lights · 5 models · from $89.00

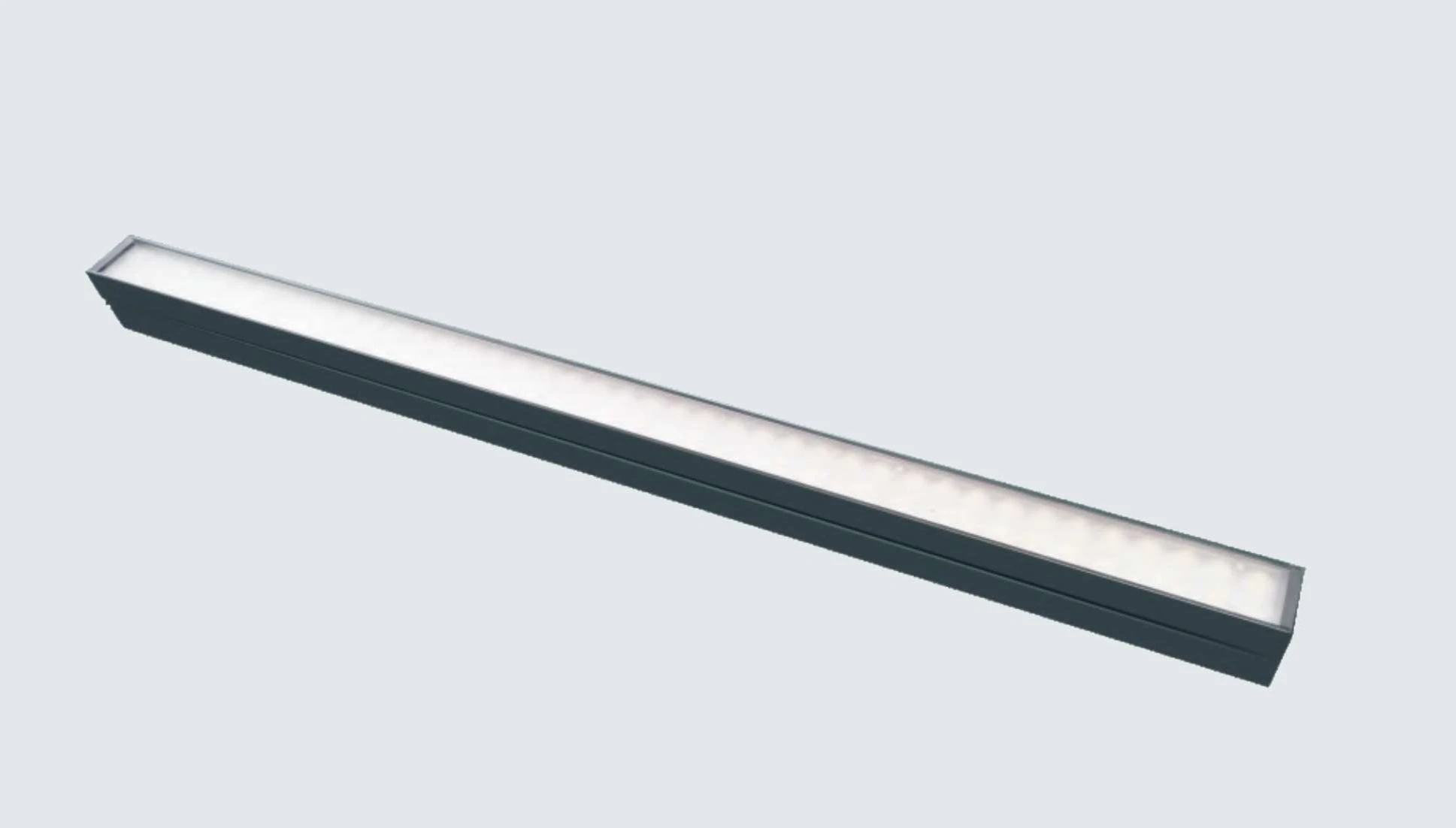

High-brightness bar light (HHBL)
The High-brightness bar light (HHBL) is a range of 5 bar lights from LumaSpec Vision, from $89.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 100 x 32 mm, 200 x 32 mm, 300 x 32 mm, 500 x 32 mm, 800 x 32 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Linear / high intensity |
| Voltage | 24 V |
Features
- Brightness more than 3 times a standard bar light
- High-power LEDs, long working distance
- Length customisable
Typical uses
- All bar-light applications
- Character inspection
- Appearance inspection
- Component inspection on substrates
- Skylight (opening) feature positioning
All 5 models in the High-brightness bar light (HHBL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HHBL11238K | 100 x 32 mm | 18 W | $89.00 | 10 in stock | View | |
| LS-HHBL21238K | 200 x 32 mm | 36 W | $139.00 | 15 in stock | View | |
| LS-HHBL31238K | 300 x 32 mm | 54 W | $189.00 | 16 in stock | View | |
| LS-HHBL51238K | 500 x 32 mm | 80 W | $299.00 | 17 in stock | View | |
| LS-HHBL81238K | 800 x 32 mm | 144 W | $459.00 | 12 in stock | View |
