Bar lights · 57 models · from $59.00

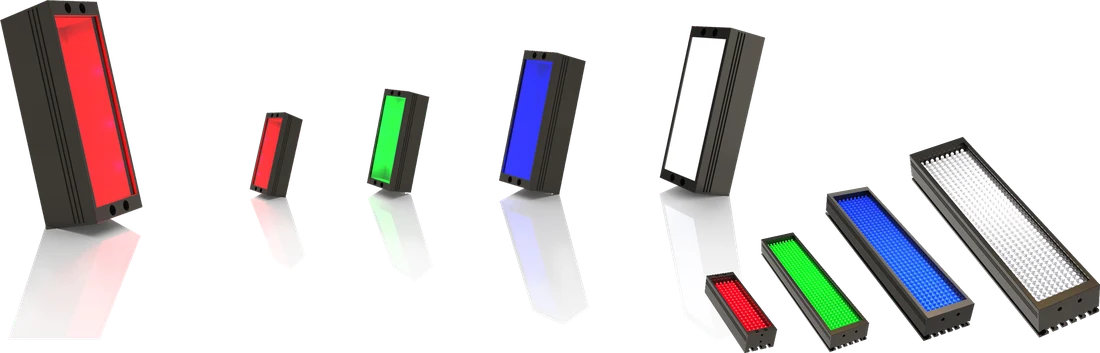

Bar light (LB series)
The Bar light (LB series) is a range of 57 bar lights from LumaSpec Vision, from $59.00. It comes in 56 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 40 x 16 mm, 60 x 16 mm, 74 x 30 mm, 74 x 45 mm, 80 x 16 mm, 86 x 30 mm, 90 x 16 mm, 98 x 30 mm, 100 x 30 mm, 120 x 16 mm, 146 x 30 mm, 150 x 16 mm, 150 x 30 mm, 160 x 16 mm, 170 x 30 mm, 180 x 16 mm and 40 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- Can customize illumination width, length, and size.
- Wavelength and color temperature options available, with combinations of different colors possible.
- Compact design for easy installation.
- Adjustable illumination angle, diffuser plate optional.
Typical uses
- Surface defect detection
- Image scanning
- LCD panel inspection
- Pin flatness test
- Slender object damage/appearance inspection
- Textured metal damage inspection
All 57 models in the Bar light (LB series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-LB-40X16 | 40 x 16 mm | 1.5 W | $59.00 | 17 in stock | View | |
| LS-2LB-60X16 | 60 x 16 mm | 1.9 W | $69.00 | 13 in stock | View | |
| LS-LB-80X16 | 80 x 16 mm | 3 W | $79.00 | 15 in stock | View | |
| LS-2LB-90X16 | 90 x 16 mm | 2.9 W | $79.00 | 13 in stock | View | |
| LS-LB-74X30 | 74 x 30 mm | 4.5 W | $79.00 | 14 in stock | View | |
| LS-LB-86X30 | 86 x 30 mm | 4.5 W | $79.00 | 16 in stock | View | |
| LS-LB-74X45 | 74 x 45 mm | 4 W | $79.00 | 14 in stock | View | |
| LS-LB-98X30 | 98 x 30 mm | 5 W | $89.00 | 14 in stock | View | |
| LS-2LB-100X30 | 100 x 30 mm | 6.3 W | $89.00 | 20 in stock | View | |
| LS-LB-119X16 | 120 x 16 mm | 5.5 W | $99.00 | 9 in stock | View | |
| LS-2LB-120X16 | 120 x 16 mm | 3.8 W | $99.00 | 12 in stock | View | |
| LS-LB-146X30 | 146 x 30 mm | 7.5 W | $109.00 | 17 in stock | View | |
| LS-LB-160X16 | 160 x 16 mm | 7 W | $119.00 | 15 in stock | View | |
| LS-2LB-150X16 | 150 x 16 mm | 4.7 W | $119.00 | 11 in stock | View | |
| LS-2LB-150X30 | 150 x 30 mm | 6.6 W | $119.00 | 18 in stock | View | |
| LS-2LB-180X16 | 180 x 16 mm | 5.7 W | $129.00 | 14 in stock | View | |
| LS-LB-170X30 | 170 x 30 mm | 9 W | $129.00 | 14 in stock | View | |
| LS-LB-180X30 | 180 x 30 mm | 9 W | $129.00 | 18 in stock | View | |
| LS-LB-197X16 | 197 x 16 mm | 8.5 W | $139.00 | 14 in stock | View | |
| LS-LB-194X30 | 194 x 30 mm | 11 W | $139.00 | 14 in stock | View | |
| LS-2LB-200X30 | 200 x 30 mm | 12.5 W | $139.00 | 14 in stock | View | |
| LS-LB-200X45 | 200 x 45 mm | 19.7 W | $139.00 | 16 in stock | View | |
| LS-LB-218X30 | 218 x 30 mm | 13 W | $149.00 | 9 in stock | View | |
| LS-2LB-240X16 | 240 x 16 mm | 7.5 W | $159.00 | 17 in stock | View | |
| LS-2LB-250X30 | 250 x 30 mm | 15.6 W | $169.00 | 14 in stock | View | |
| LS-LB-275X16 | 275 x 16 mm | 11.5 W | $179.00 | 14 in stock | View | |
| LS-LB-266X30 | 266 x 30 mm | 16 W | $179.00 | 14 in stock | View | |
| LS-2LB-275X30 | 275 x 30 mm | 17.2 W | $179.00 | 11 in stock | View | |
| LS-2LB-300X16 | 300 x 16 mm | 9.4 W | $189.00 | 12 in stock | View | |
| LS-LB-290X30 | 290 x 30 mm | 18 W | $189.00 | 15 in stock | View | |
| LS-2LB-300X30 | 300 x 30 mm | 18.8 W | $189.00 | 12 in stock | View | |
| LS-LB-300X45 | 300 x 45 mm | 29.5 W | $189.00 | 10 in stock | View | |
| LS-LB-386X30 | 386 x 30 mm | 24 W | $239.00 | 16 in stock | View | |
| LS-LB-400X45 | 400 x 45 mm | 38 W | $249.00 | 13 in stock | View | |
| LS-LB-434X30 | 434 x 30 mm | 28 W | $259.00 | 14 in stock | View | |
| LS-2LB-450X16 | 450 x 16 mm | 14.1 W | $269.00 | 16 in stock | View | |
| LS-2LB-450X30 | 450 x 30 mm | 28.1 W | $269.00 | 9 in stock | View | |
| LS-LB-500X45 | 500 x 45 mm | 47 W | $299.00 | 14 in stock | View | |
| LS-LB-550X45 | 550 x 45 mm | 49 W | $329.00 | 12 in stock | View | |
| LS-LB-578X30 | 578 x 30 mm | 35 W | $339.00 | 15 in stock | View | |
| LS-2LB-600X16 | 600 x 16 mm | 18.8 W | $349.00 | 19 in stock | View | |
| LS-2LB-600X30 | 600 x 30 mm | 37.5 W | $349.00 | 16 in stock | View | |
| LS-LB-600X45 | 600 x 45 mm | 57 W | $349.00 | 11 in stock | View | |
| LS-LB-700X45 | 700 x 45 mm | 66 W | $399.00 | 17 in stock | View | |
| LS-2LB-750X16 | 750 x 16 mm | 23.5 W | $429.00 | 12 in stock | View | |
| LS-2LB-750X30 | 750 x 30 mm | 48 W | $429.00 | 14 in stock | View | |
| LS-LB-800X45 | 800 x 45 mm | 75 W | $459.00 | 10 in stock | View | |
| LS-2LB-900X16 | 900 x 16 mm | 28.2 W | $509.00 | 15 in stock | View | |
| LS-2LB-900X30 | 900 x 30 mm | 56.2 W | $509.00 | 14 in stock | View | |
| LS-LB-900X45 | 900 x 45 mm | 84.5 W | $509.00 | 11 in stock | View | |
| LS-LB-950X45 | 950 x 45 mm | 88 W | $539.00 | 20 in stock | View | |
| LS-LB-1000X45 | 1000 x 45 mm | 90 W | $559.00 | 14 in stock | View | |
| LS-LB-1100X45 | 1100 x 45 mm | 100 W | $609.00 | 15 in stock | View | |
| LS-2LB-1200X30 | 1200 x 30 mm | 74.9 W | $669.00 | 15 in stock | View | |
| LS-LB-1200X45 | 1200 x 45 mm | 108 W | $669.00 | 14 in stock | View | |
| LS-LB-1300X45 | 1300 x 45 mm | 112 W | $719.00 | 15 in stock | View | |
| LS-LB-1400X45 | 1400 x 45 mm | 120 W | $769.00 | 14 in stock | View |
