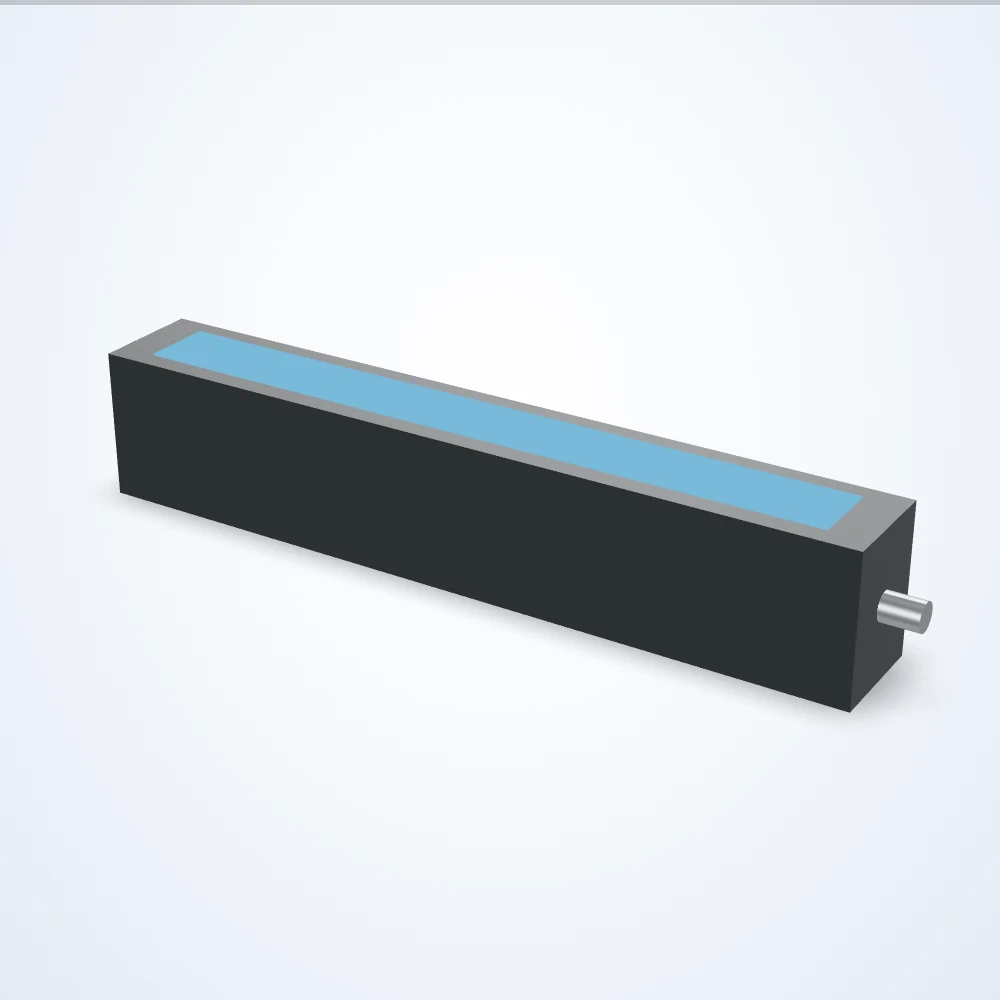

Bar light series, 63.6 mm high, 5 Pin M12 Male A-Coded

Bar lights · 8 models · from $639.00

Bar light series, 63.6 mm high, 5 Pin M12 Male A-Coded

The Bar light series, 63.6 mm high, 5 Pin M12 Male A-Coded is a range of 8 bar lights from LumaSpec Vision, from $639.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions	301.6 x 30 mm, 596.6 x 30 mm, 891.6 x 30 mm, 1187 x 30 mm
Type	Diffused, Standard
Voltage	24 V
Colour	Red, Green, Blue, White, Infrared
Wavelength	850 nm, 940 nm

All 8 models in the Bar light series, 63.6 mm high, 5 Pin M12 Male A-Coded

Model	Size	Price	Availability	Link
LS-BAR-0141	301.6 x 30 mm	from $639.00 quote	80 in stock	View
LS-BAR-0145	301.6 x 30 mm	from $639.00 quote	24 in stock	View
LS-BAR-0142	596.6 x 30 mm	from $909.00 quote	67 in stock	View
LS-BAR-0146	596.6 x 30 mm	from $909.00 quote	28 in stock	View
LS-BAR-0143	891.6 x 30 mm	from $1,199.00 quote	75 in stock	View
LS-BAR-0147	891.6 x 30 mm	from $1,199.00 quote	23 in stock	View
LS-BAR-0140	1187 x 30 mm	from $1,479.00 quote	78 in stock	View
LS-BAR-0144	1187 x 30 mm	from $1,479.00 quote	25 in stock	View
