Bar lights · 32 models · from $49.00

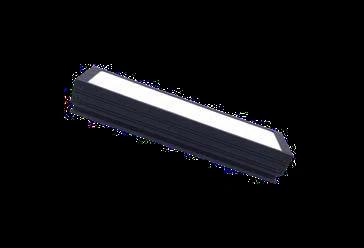

Strip light source, 35 series
The Strip light source, 35 series is a range of 32 bar lights from LumaSpec Vision, from $49.00. It comes in 32 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 25.2 mm, 50.4 mm, 60 mm, 75.6 mm, 92.4 mm, 100.8 mm, 126 mm, 151.2 mm, 176.4 mm, 201.6 mm, 226.8 mm, 252 mm, 277.2 mm, 302.4 mm, 327.6 mm, 352.8 mm and 16 more |
|---|---|
| Colour | Red, Green, Blue, White, Infrared, UV |
| Type | Strip / combination |
| Voltage | 24 V |
Features
- First choice for large-area lighting, high cost performance
- Surface-mount LEDs and special optical lenses, concentrated light divergence angle, high light efficiency, stable mass production
- Minimum splicing unit 25.2 mm
- Size can be customized according to different needs
Typical uses
- Metal surface inspection
- PCB substrate inspection, electronic component inspection, appearance defect inspection
- Printed material character recognition, mobile phone case positioning, PCB component presence/absence detection
- Character recognition
- Detection of holes on electronic cigarette shells
All 32 models in the Strip light source, 35 series
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-L2535 | 25.2 mm | 1.73 W | $49.00 | 22 in stock | View | |
| LS-L5035 | 50.4 mm | 3.46 W | $59.00 | 23 in stock | View | |
| LS-L6035 | 60 mm | 4.3 W | $69.00 | 22 in stock | View | |
| LS-L7535 | 75.6 mm | 5.18 W | $79.00 | 25 in stock | View | |
| LS-L9235 | 92.4 mm | 6 W | $89.00 | 19 in stock | View | |
| LS-L10035 | 100.8 mm | 6.91 W | $89.00 | 18 in stock | View | |
| LS-L12535 | 126 mm | 8.64 W | $99.00 | 19 in stock | View | |
| LS-L15035 | 151.2 mm | 10.37 W | $119.00 | 20 in stock | View | |
| LS-L17535 | 176.4 mm | 12.1 W | $129.00 | 18 in stock | View | |
| LS-L20035 | 201.6 mm | 13.82 W | $139.00 | 23 in stock | View | |
| LS-L22535 | 226.8 mm | 14.1 W | $159.00 | 27 in stock | View | |
| LS-L25035 | 252 mm | 12.96 W | $169.00 | 18 in stock | View | |
| LS-L27535 | 277.2 mm | 15.6 W | $179.00 | 19 in stock | View | |
| LS-L30035 | 302.4 mm | 14.4 W | $199.00 | 16 in stock | View | |
| LS-L32535 | 327.6 mm | 18 W | $209.00 | 17 in stock | View | |
| LS-L35035 | 352.8 mm | 19.5 W | $219.00 | 22 in stock | View | |
| LS-L37535 | 378 mm | 21.6 W | $229.00 | 24 in stock | View | |
| LS-L40035 | 403.2 mm | 23 W | $249.00 | 22 in stock | View | |
| LS-L42535 | 428.4 mm | 24.5 W | $259.00 | 25 in stock | View | |
| LS-L45035 | 453.6 mm | 25.6 W | $269.00 | 18 in stock | View | |
| LS-L47535 | 478.8 mm | 27.3 W | $289.00 | 23 in stock | View | |
| LS-L50035 | 504 mm | 23.04 W | $299.00 | 21 in stock | View | |
| LS-L52535 | 529.2 mm | 30 W | $309.00 | 17 in stock | View | |
| LS-L55035 | 554.4 mm | 31 W | $329.00 | 21 in stock | View | |
| LS-L57535 | 579.6 mm | 33 W | $339.00 | 20 in stock | View | |
| LS-L60035 | 604.8 mm | 27.65 W | $349.00 | 20 in stock | View | |
| LS-L70035 | 705.6 mm | 39.5 W | $409.00 | 24 in stock | View | |
| LS-L80035 | 806.4 mm | 36.86 W | $459.00 | 22 in stock | View | |
| LS-L90035 | 907.2 mm | 39.5 W | $509.00 | 21 in stock | View | |
| LS-L100035 | 1008 mm | 46.08 W | $569.00 | 17 in stock | View | |
| LS-L120035 | 1209.6 mm | 55.3 W | $669.00 | 21 in stock | View | |
| LS-L180035 | 1814.4 mm | 70 W | $989.00 | 22 in stock | View |
