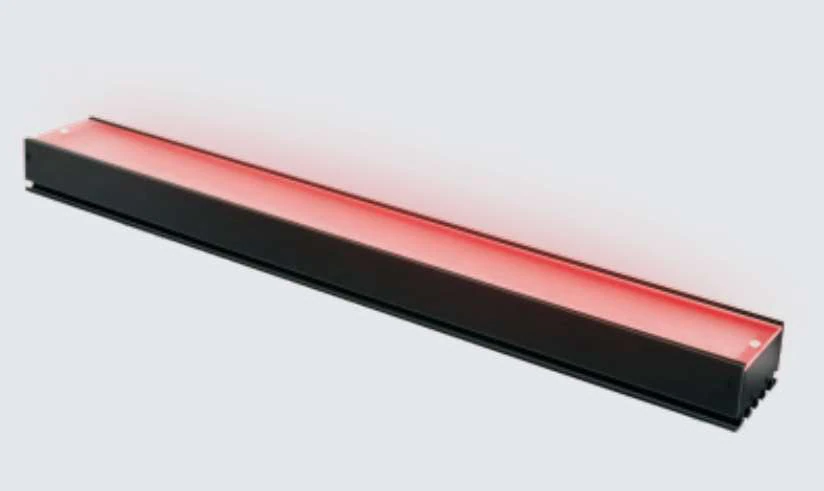

Bar light (HBL)
The Bar light (HBL) is a range of 66 bar lights from LumaSpec Vision, from $59.00. It comes in 66 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 45 x 12 mm, 45 x 22 mm, 45 x 32 mm, 90 x 12 mm, 90 x 22 mm, 90 x 32 mm, 135 x 12 mm, 135 x 22 mm, 135 x 32 mm, 180 x 12 mm, 180 x 22 mm, 180 x 32 mm, 225 x 12 mm, 225 x 22 mm, 225 x 32 mm, 270 x 12 mm and 50 more |
|---|---|
| Colour | Red, Green, Blue, White |
| Type | Standard |
| Voltage | 24 V |
Features
- Cost-effective bar illumination
- Many types; size, brightness and mounting method can be customised
- Length customisable as 57 + 45 x N mm
Typical uses
- Packaging damage, LCD characters, positioning marks, expanded-film damage
- Stretched-film damage, masking-tape damage, connector pin flatness
- LCD components, scratches on large object surfaces
All 66 models in the Bar light (HBL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-HBL5718K | 45 x 12 mm | 1.5 W | $59.00 | 13 in stock | View | |
| LS-HBL5728K | 45 x 22 mm | 2.5 W | $59.00 | 13 in stock | View | |
| LS-HBL5738K | 45 x 32 mm | 3.5 W | $59.00 | 13 in stock | View | |
| LS-HBL10218K | 90 x 12 mm | 2.5 W | $79.00 | 11 in stock | View | |
| LS-HBL10228K | 90 x 22 mm | 4.5 W | $79.00 | 15 in stock | View | |
| LS-HBL10238K | 90 x 32 mm | 7 W | $79.00 | 13 in stock | View | |
| LS-HBL14718K | 135 x 12 mm | 3.5 W | $109.00 | 14 in stock | View | |
| LS-HBL14728K | 135 x 22 mm | 7 W | $109.00 | 12 in stock | View | |
| LS-HBL14738K | 135 x 32 mm | 10 W | $109.00 | 16 in stock | View | |
| LS-HBL19218K | 180 x 12 mm | 6 W | $129.00 | 10 in stock | View | |
| LS-HBL19228K | 180 x 22 mm | 10 W | $129.00 | 12 in stock | View | |
| LS-HBL19238K | 180 x 32 mm | 13.5 W | $129.00 | 12 in stock | View | |
| LS-HBL23718K | 225 x 12 mm | 6 W | $149.00 | 13 in stock | View | |
| LS-HBL23728K | 225 x 22 mm | 12 W | $149.00 | 12 in stock | View | |
| LS-HBL23738K | 225 x 32 mm | 18 W | $149.00 | 13 in stock | View | |
| LS-HBL28218K | 270 x 12 mm | 7 W | $179.00 | 11 in stock | View | |
| LS-HBL28228K | 270 x 22 mm | 13.5 W | $179.00 | 14 in stock | View | |
| LS-HBL28238K | 270 x 32 mm | 20 W | $179.00 | 11 in stock | View | |
| LS-HBL32718K | 315 x 12 mm | 8 W | $199.00 | 13 in stock | View | |
| LS-HBL32728K | 315 x 22 mm | 15.5 W | $199.00 | 14 in stock | View | |
| LS-HBL32738K | 315 x 32 mm | 23.5 W | $199.00 | 15 in stock | View | |
| LS-HBL37218K | 360 x 12 mm | 9 W | $229.00 | 15 in stock | View | |
| LS-HBL37228K | 360 x 22 mm | 18 W | $229.00 | 12 in stock | View | |
| LS-HBL37238K | 360 x 32 mm | 26.5 W | $229.00 | 12 in stock | View | |
| LS-HBL41718K | 405 x 12 mm | 10 W | $249.00 | 18 in stock | View | |
| LS-HBL41728K | 405 x 22 mm | 20 W | $249.00 | 17 in stock | View | |
| LS-HBL41738K | 405 x 32 mm | 30 W | $249.00 | 13 in stock | View | |
| LS-HBL46218K | 450 x 12 mm | 11 W | $269.00 | 11 in stock | View | |
| LS-HBL46228K | 450 x 22 mm | 22 W | $269.00 | 17 in stock | View | |
| LS-HBL46238K | 450 x 32 mm | 33 W | $269.00 | 11 in stock | View | |
| LS-HBL50718K | 495 x 12 mm | 12.5 W | $299.00 | 8 in stock | View | |
| LS-HBL50728K | 495 x 22 mm | 24.5 W | $299.00 | 12 in stock | View | |
| LS-HBL50738K | 495 x 32 mm | 37 W | $299.00 | 13 in stock | View | |
| LS-HBL55218K | 540 x 12 mm | 13.5 W | $319.00 | 14 in stock | View | |
| LS-HBL55228K | 540 x 22 mm | 26.5 W | $319.00 | 15 in stock | View | |
| LS-HBL55238K | 540 x 32 mm | 40 W | $319.00 | 15 in stock | View | |
| LS-HBL59718K | 585 x 12 mm | 14.5 W | $339.00 | 14 in stock | View | |
| LS-HBL59728K | 585 x 22 mm | 29 W | $339.00 | 16 in stock | View | |
| LS-HBL59738K | 585 x 32 mm | 43 W | $339.00 | 15 in stock | View | |
| LS-HBL64218K | 630 x 12 mm | 15.5 W | $369.00 | 14 in stock | View | |
| LS-HBL64228K | 630 x 22 mm | 32 W | $369.00 | 12 in stock | View | |
| LS-HBL64238K | 630 x 32 mm | 46.5 W | $369.00 | 15 in stock | View | |
| LS-HBL86718K | 655 x 12 mm | 21 W | $379.00 | 15 in stock | View | |
| LS-HBL68718K | 675 x 12 mm | 16.5 W | $389.00 | 13 in stock | View | |
| LS-HBL68728K | 675 x 22 mm | 33 W | $389.00 | 16 in stock | View | |
| LS-HBL68738K | 675 x 32 mm | 49.5 W | $389.00 | 13 in stock | View | |
| LS-HBL73218K | 720 x 12 mm | 18 W | $409.00 | 13 in stock | View | |
| LS-HBL73228K | 720 x 22 mm | 36 W | $409.00 | 15 in stock | View | |
| LS-HBL73238K | 720 x 32 mm | 53 W | $409.00 | 14 in stock | View | |
| LS-HBL77718K | 765 x 12 mm | 19 W | $439.00 | 19 in stock | View | |
| LS-HBL77728K | 765 x 22 mm | 37.5 W | $439.00 | 15 in stock | View | |
| LS-HBL77738K | 765 x 32 mm | 56 W | $439.00 | 13 in stock | View | |
| LS-HBL82218K | 810 x 12 mm | 20 W | $459.00 | 14 in stock | View | |
| LS-HBL82228K | 810 x 22 mm | 40 W | $459.00 | 13 in stock | View | |
| LS-HBL82238K | 810 x 32 mm | 60 W | $459.00 | 13 in stock | View | |
| LS-HBL86728K | 855 x 22 mm | 42 W | $489.00 | 13 in stock | View | |
| LS-HBL86738K | 855 x 32 mm | 63 W | $489.00 | 16 in stock | View | |
| LS-HBL91218K | 900 x 12 mm | 22 W | $509.00 | 17 in stock | View | |
| LS-HBL91228K | 900 x 22 mm | 44 W | $509.00 | 15 in stock | View | |
| LS-HBL91238K | 900 x 32 mm | 66 W | $509.00 | 15 in stock | View | |
| LS-HBL95718K | 945 x 12 mm | 23 W | $529.00 | 10 in stock | View | |
| LS-HBL95728K | 945 x 22 mm | 46 W | $529.00 | 12 in stock | View | |
| LS-HBL95738K | 945 x 32 mm | 69 W | $529.00 | 16 in stock | View | |
| LS-HBL100218K | 990 x 12 mm | 25 W | $559.00 | 16 in stock | View | |
| LS-HBL100228K | 990 x 22 mm | 50 W | $559.00 | 14 in stock | View | |
| LS-HBL100238K | 990 x 32 mm | 73 W | $559.00 | 13 in stock | View |
