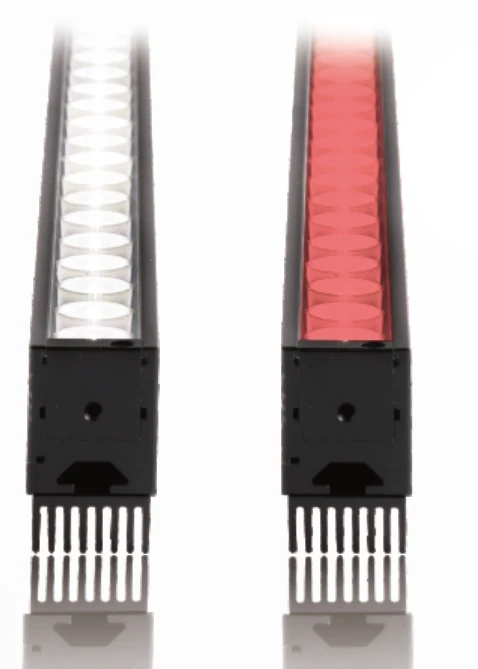

420 mm High power bar light (3BRH) (LS-3BRH42016)
Model LS-3BRH42016
High power bar light using high-power LEDs for long working distance and high luminance; multiple installation methods, one-piece aluminium alloy body with high heat-dissipation performance.
Features
- High power LEDs, lighting at long working distance, high luminance
- Multiple installation methods, easy to install
- One-piece aluminium alloy design, high heat-dissipation performance
- Option: diffuser plate, improves lamp shadow and glare when imaging reflective workpieces
- Customizable: Combined light, Length, Multi-area control, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Specifications
| Model | LS-3BRH42016 |
|---|---|
| Voltage | 24 V |
| Luminous surface width | 16 mm |
| Light array quantities | 3 |
| Recommended working distance | 10mm~550mm |
| Min. overall size | 102 mm x 22 mm |
| Max. overall size | 522 mm x 22 mm |
| Colour temperature of white | 6600 K |
| Option | Diffuser plate (improves lamp shadow and glare when imaging reflective workpieces) |
| Remark | 16mm |
| Cable length (drawing) | 500 mm |
| Emitting length | A - 12 = B |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life-span | 50000 h (to 50% of factory default luminance) |
| Adapted controllers | Analog controller, digital controller, high power controller |
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Power (G/B/W) | 24.0W |
| Weight (G/B/W) | 445 g |
| Common model | Y |
| Dimension A (mm) | 432 |
| Emitting length B (mm) | 420 |
| Emitting width (mm) | 16 |
| Power (R) | 14.4W |
| Weight (R) | 437 g |
Applications
- Large LCD panel defect inspection
- Metal surface defect inspection
- Printed character defect inspection
- Connector pin flatness inspection
- Imaging example: mobile phone bottom shrapnel direction inspection (LS-3BRH15016-B)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the High power bar light (3BRH) series
