Bar lights

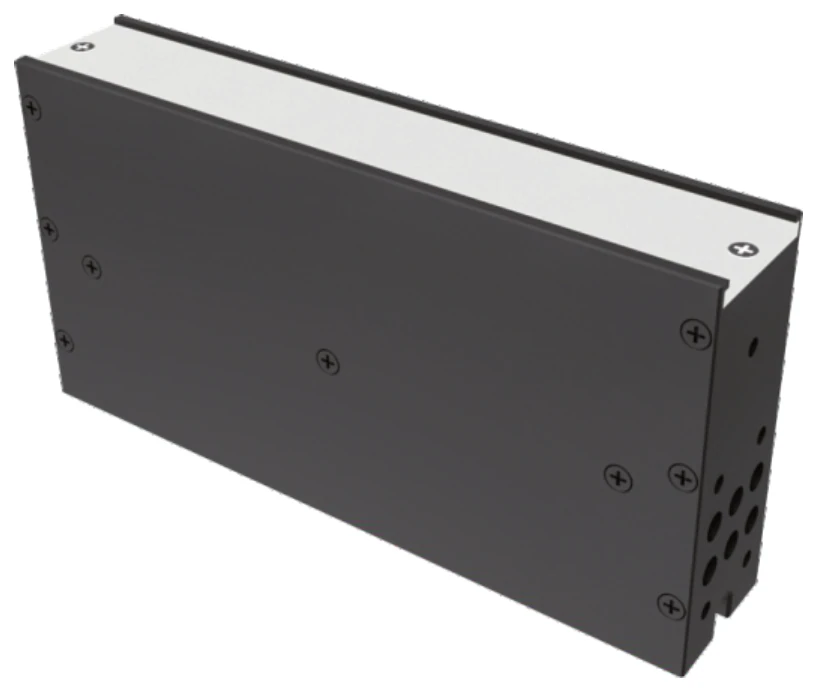

48 x 18 mm High brightness bar light (2HBS series) (LS-2HBS6026-RGBW)
Model LS-2HBS6026-RGBW
High-brightness bar light, three times brighter than standard bar lights. High-power LEDs allow lighting over long distances.
Features
- The brightness is three times more than standard bar lights
- Adopts high-power LEDs to realize lighting over long distance
Specifications
| Model | LS-2HBS6026-RGBW |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable, diffuse plate |
| Controller | LS-DPS series, LS-APS series, LS-SPS series (the selected controller should match the power of the light source) |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Mounting | 2 x 4-M3, depth 4 (drawings) |
| Cable length | 500 mm (drawings) |
| Item | 1 |
| Power R (W) | 5.6 |
| Power G/B/W (W) | 5.6 |
| Lamp bead rows | 1 |
| Emitting area (mm, drawing) | 48 x 18 |
| L (mm) | 60 |
| W (mm) | 26 |
| H (mm) | 58 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Shipping weight | 0.30 kg |
Applications
- Suitable for all applications of bar light
- Various character recognition
- Various appearance inspection
- Various damage and defect inspection
- QR codes, one-dimension bar code reading
- Part inspection on substrates
- Skylight feature positioning
- Canned fish sealing side inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the High brightness bar light (2HBS series) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-2HBS10026-RGBW | 88 x 18 mm | 12 W | $79.00 | 11 in stock | View | |
| LS-2HBS20026-RGBW | 188 x 18 mm | 23 W | $139.00 | 16 in stock | View | |
| LS-2HBS30026-RGBW | 288 x 18 mm | 40 W | $189.00 | 11 in stock | View | |
| LS-2HBS40026-RGBW | 388 x 18 mm | 45 W | $239.00 | 14 in stock | View |
