Bar lights

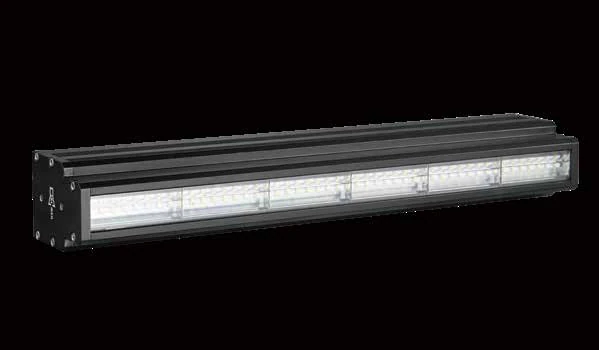

LED bar light (NTB) (LS-C75X)
Model LS-C75X
LED bar lights with 75, 145 and 220 mm x 14 mm working areas in white, blue, red and green.
Features
- Quick and efficient customization
- Uniform, low heat illumination
- Widely used in microscope
- Long working distance
- Compact design
- High density and high brightness LED array
Specifications
| Model | LS-C75X |
|---|---|
| Size | 75mm x 14mm (working area) |
| Colour | White / Blue / Red / Green |
| Current (<A) | 0.21 |
| Power (<W) | 3.9 (White, Blue, Green); 3 (Red) |
| Size (mm) | 80.5 x 21 x 29 |
| Shipping weight | 0.25 kg |
Applications
- Measurement inspection of mechanical components
- Inspection of transparent film
- Microscope illumination
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
