Line scan lights · 18 models · from $229.00

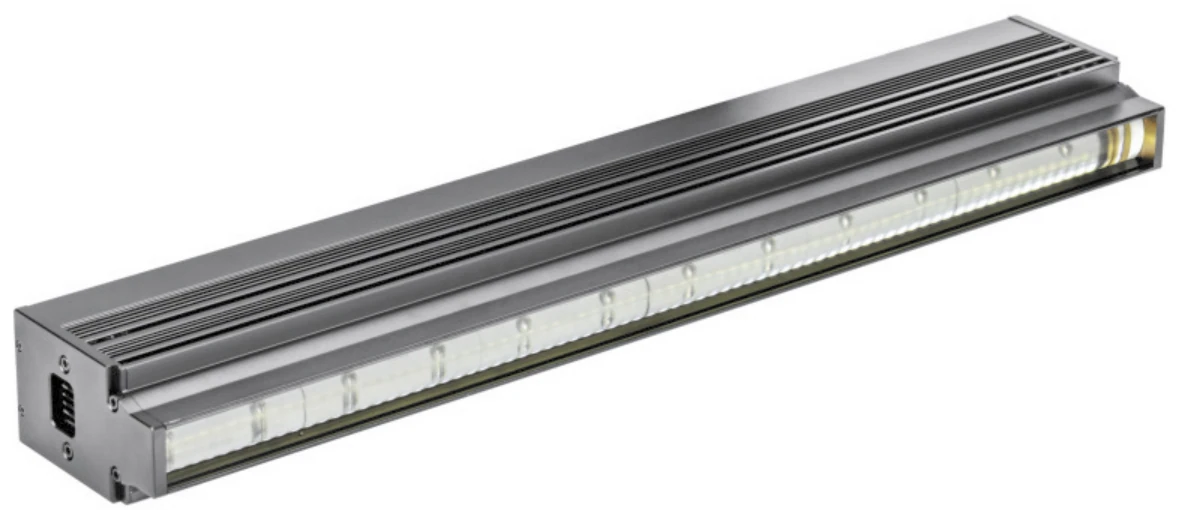

Ultra-high-brightness line light (LSH)
The Ultra-high-brightness line light (LSH) is a range of 18 line scan lights from LumaSpec Vision, from $229.00. It comes in 18 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 75 x 22 mm, 150 x 22 mm, 225 x 22 mm, 300 x 22 mm, 375 x 22 mm, 450 x 22 mm, 525 x 22 mm, 600 x 22 mm, 675 x 22 mm, 750 x 22 mm, 825 x 22 mm, 900 x 22 mm, 975 x 22 mm, 1050 x 22 mm, 1125 x 22 mm, 1200 x 22 mm and 2 more |
|---|---|
| Colour | Red, Blue, White |
| Connector | 16M-6J, 24M-6J |
Features
- New-generation high-brightness line light, air-cooled design, brightness up to 1,800,000 lux
- Can be used as a front light or as a back light
- Different lengths can be customised to the site installation size
Typical uses
- High-speed motion scanning inspection
- Graphene material appearance inspection
- Lithium battery coating inspection
- Character inspection in the printing industry
- Metal surface scratch inspection
- Phone screen surface defect inspection
All 18 models in the Ultra-high-brightness line light (LSH)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-LSH75 | 75 x 22 mm | 37 W | $229.00 | 13 in stock | View | |
| LS-LSH150 | 150 x 22 mm | 74 W | $369.00 | 11 in stock | View | |
| LS-LSH225 | 225 x 22 mm | 111 W | $509.00 | 11 in stock | View | |
| LS-LSH300 | 300 x 22 mm | 148 W | $659.00 | 11 in stock | View | |
| LS-LSH375 | 375 x 22 mm | 185 W | $799.00 | 10 in stock | View | |
| LS-LSH450 | 450 x 22 mm | 222 W | $939.00 | 9 in stock | View | |
| LS-LSH525 | 525 x 22 mm | 259 W | $1,079.00 | 12 in stock | View | |
| LS-LSH600 | 600 x 22 mm | 296 W | $1,219.00 | 15 in stock | View | |
| LS-LSH675 | 675 x 22 mm | 333 W | $1,359.00 | 13 in stock | View | |
| LS-LSH750 | 750 x 22 mm | 370 W | $1,509.00 | 10 in stock | View | |
| LS-LSH825 | 825 x 22 mm | 407 W | $1,649.00 | 12 in stock | View | |
| LS-LSH900 | 900 x 22 mm | 444 W | $1,789.00 | 8 in stock | View | |
| LS-LSH975 | 975 x 22 mm | 481 W | $1,929.00 | 10 in stock | View | |
| LS-LSH1050 | 1050 x 22 mm | 518 W | $2,069.00 | 13 in stock | View | |
| LS-LSH1125 | 1125 x 22 mm | 555 W | $2,219.00 | 10 in stock | View | |
| LS-LSH1200 | 1200 x 22 mm | 592 W | $2,359.00 | 9 in stock | View | |
| LS-LSH1275 | 1275 x 22 mm | 629 W | $2,499.00 | 7 in stock | View | |
| LS-LSH1350 | 1350 x 22 mm | 666 W | $2,639.00 | 12 in stock | View |
