Line scan lights · 8 models · from $319.00

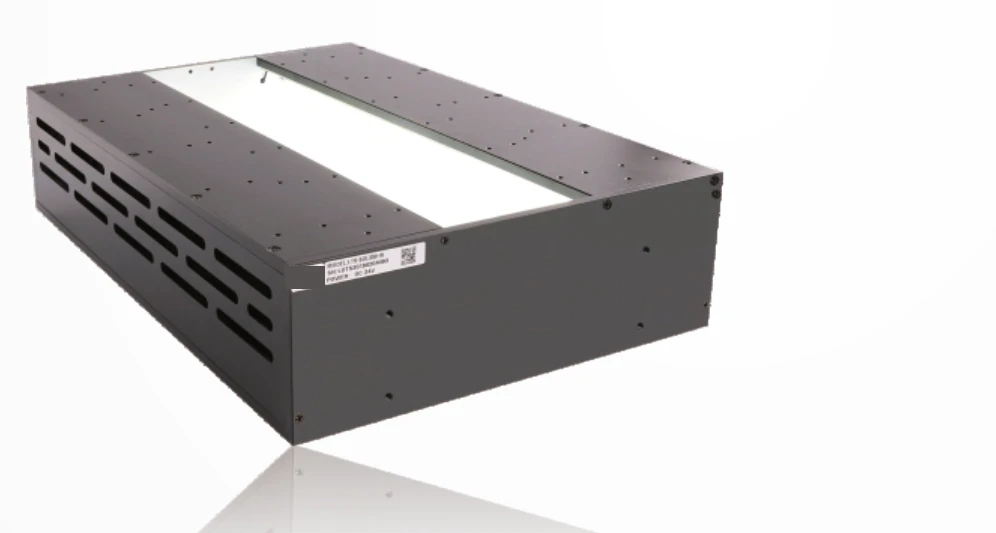

Tunnel line scan light, fan cooled (SDL)
The Tunnel line scan light, fan cooled (SDL) is a range of 8 line scan lights from LumaSpec Vision, from $319.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 120 x 85 mm, 200 x 85 mm, 238 x 75 mm, 260 x 85 mm, 350 x 85 mm, 420 x 85 mm, 500 x 85 mm, 1000 x 85 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Good parallelism, high luminance
- Compact, stable, durable structure
- Used with line scan cameras on workpieces needing uniform surface lighting
- Usage: general, or used with a coaxial line scan light
- Customizable: length, colour & colour temperature, cable length, installation method
Typical uses
- PCB printing inspection
- Vacuum packing inspection
- Metal surface inspection
- Glass surface gloss inspection
- Reflective package character print inspection
All 8 models in the Tunnel line scan light, fan cooled (SDL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-SDL120 | 120 x 85 mm | 135 W | $319.00 | 16 in stock | View | |
| LS-SDL200 | 200 x 85 mm | 168 W | $469.00 | 11 in stock | View | |
| LS-SDL23875 | 238 x 75 mm | 202 W | $539.00 | 13 in stock | View | |
| LS-SDL260 | 260 x 85 mm | 353 W | $579.00 | 17 in stock | View | |
| LS-SDL350 | 350 x 85 mm | 336 W | $749.00 | 15 in stock | View | |
| LS-SDL420 | 420 x 85 mm | 336 W | $879.00 | 14 in stock | View | |
| LS-SDL500 | 500 x 85 mm | 470 W | $1,029.00 | 17 in stock | View | |
| LS-SDL1000 | 1000 x 85 mm | 807 W | $1,979.00 | 14 in stock | View |
