Line scan lights · 10 models · from $349.00

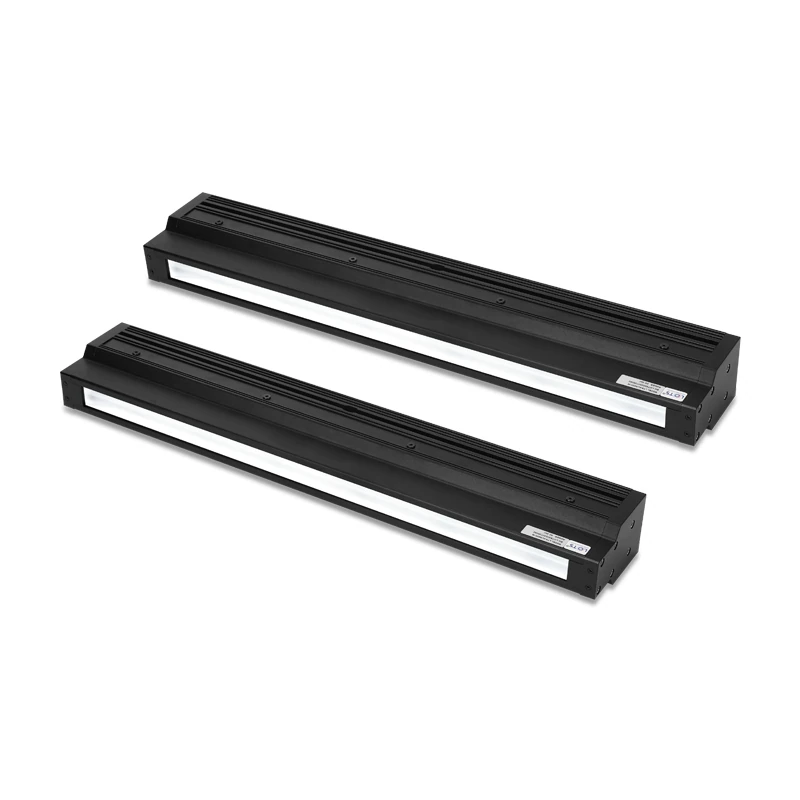

Natural cooling line scan light (4LIN)
The Natural cooling line scan light (4LIN) is a range of 10 line scan lights from LumaSpec Vision, from $349.00. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Colour | Red, Green, Blue, White |
|---|---|
| Size | 100-200 mm, 200-400 mm, 400 mm + |
| Voltage | 24 V |
Features
- High uniformity & parallelism, perfectly match to line scan camera
- Light weight, good heat dissipation, high brightness
- High cost performance, compact size, suitable for batch use
- Fan-less natural cooling type, suitable for dust-free room
- Can be used as direct light or backlight
- Can replace fiber line light
Typical uses
- Steel plate inspection
- Glass plate inspection
- PCB board inspection
- Metal surface inspection
- Lithium battery film inspection
- Visual inspection
All 10 models in the Natural cooling line scan light (4LIN)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-4LIN100 | 20 W | $349.00 | 15 in stock | View | ||
| LS-4LIN200 | 34 W | $539.00 | 17 in stock | View | ||
| LS-4LIN300 | 53 W | $729.00 | 15 in stock | View | ||
| LS-4LIN400 | 68 W | $919.00 | 13 in stock | View | ||
| LS-4LIN500 | 87 W | $1,109.00 | 16 in stock | View | ||
| LS-4LIN600 | 101 W | $1,299.00 | 12 in stock | View | ||
| LS-4LIN700 | 116 W | $1,489.00 | 14 in stock | View | ||
| LS-4LIN800 | 135 W | $1,679.00 | 14 in stock | View | ||
| LS-4LIN900 | 154 W | $1,869.00 | 11 in stock | View | ||
| LS-4LIN1000 | 168 W | $2,049.00 | 16 in stock | View |
