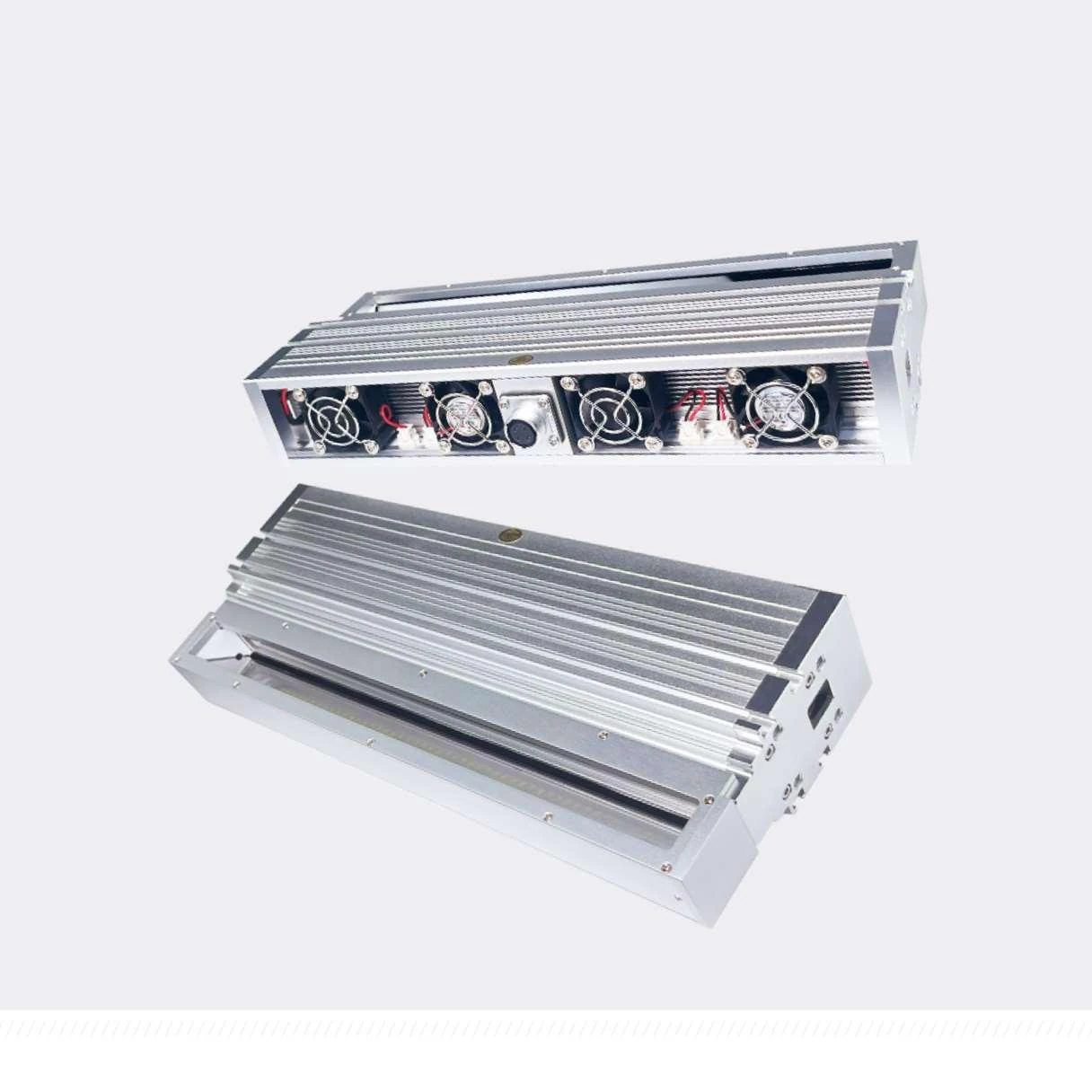

Coaxial line scan light (3LC series)
The Coaxial line scan light (3LC series) is a range of 7 line scan lights from LumaSpec Vision, from $229.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 75 x 22 mm, 150 x 22 mm, 225 x 22 mm, 300 x 22 mm, 375 x 22 mm, 450 x 22 mm, 525 x 22 mm |
|---|---|
| Colour | Red, Blue, White |
| Voltage | 24 V |
| Connector | WS16 4-pin, WS20 4-pin |
Features
- Coaxial illumination for line scan cameras
- Cooling fans in the housing
- WS16 or WS20 aviation plug; power cord optional (selective assembly)
- Three-colour RGB light source, size, wavelength/colour temperature, mounting and input wire length customization
Typical uses
- High-speed line detection
- High reflective workpiece surface detection
- Print quality inspection
- Printed character detection
All 7 models in the Coaxial line scan light (3LC series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3LC7522 | 75 x 22 mm | 31 W | $229.00 | 8 in stock | View | |
| LS-3LC15022 | 150 x 22 mm | 62 W | $369.00 | 10 in stock | View | |
| LS-3LC22522 | 225 x 22 mm | 93 W | $509.00 | 11 in stock | View | |
| LS-3LC30022 | 300 x 22 mm | 124 W | $659.00 | 9 in stock | View | |
| LS-3LC37522 | 375 x 22 mm | 155 W | $799.00 | 11 in stock | View | |
| LS-3LC45022 | 450 x 22 mm | 186 W | $939.00 | 8 in stock | View | |
| LS-3LC52522 | 525 x 22 mm | 217 W | $1,079.00 | 7 in stock | View |
