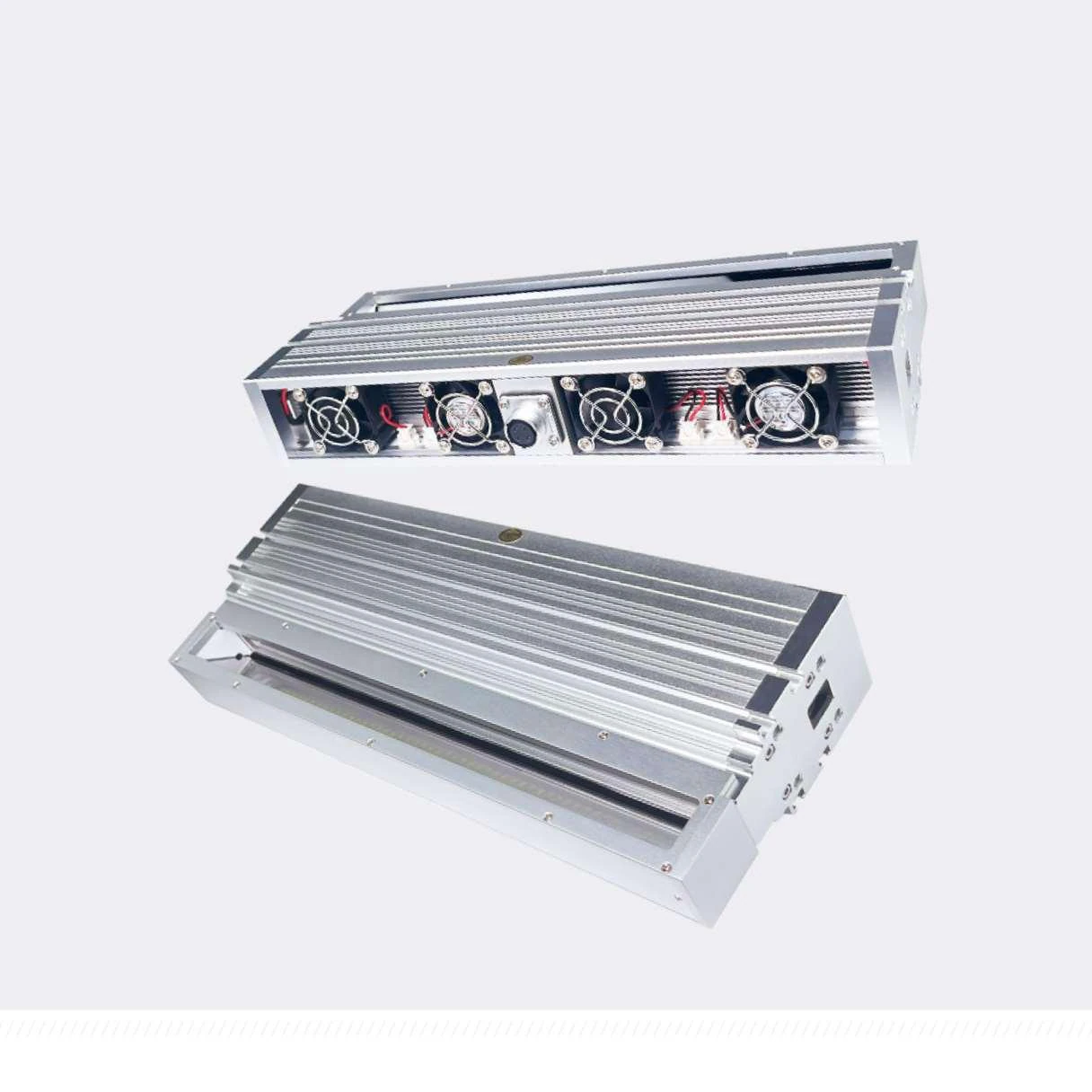

150 x 22 mm Coaxial line scan light (3LC series) (LS-3LC15022)
Model LS-3LC15022
Coaxial line scan light (coaxial line light source) for line scan cameras, fan cooled, luminous lengths 75 to 525 mm (22 mm wide), 24 V.
Features
- Coaxial illumination for line scan cameras
- Cooling fans in the housing
- WS16 or WS20 aviation plug; power cord optional (selective assembly)
- Three-colour RGB light source, size, wavelength/colour temperature, mounting and input wire length customization
Specifications
| Model | LS-3LC15022 |
|---|---|
| Voltage | 24 V DC |
| Luminous width | 22 mm |
| Cross-section | 54 x 137.5 mm |
| Power cord | Selective assembly (optional) |
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Quality service | one year product warranty, technical support |
| Luminous size (mm) | 150x22 |
| Voltage (V) | 24 |
| Power red (W) | 40 |
| Power blue/white (W) | 62 |
| Long (mm) | 170 |
| Wide (mm) | 54 |
| High (mm) | 137.5 |
| Weight (kg) | 1.3 |
| Plug specification | WS16 aviation plug 4-core |
Applications
- High-speed line detection
- High reflective workpiece surface detection
- Print quality inspection
- Printed character detection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Coaxial line scan light (3LC series) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-3LC7522 | 75 x 22 mm | 31 W | $229.00 | 8 in stock | View | |
| LS-3LC22522 | 225 x 22 mm | 93 W | $509.00 | 11 in stock | View | |
| LS-3LC30022 | 300 x 22 mm | 124 W | $659.00 | 9 in stock | View | |
| LS-3LC37522 | 375 x 22 mm | 155 W | $799.00 | 11 in stock | View | |
| LS-3LC45022 | 450 x 22 mm | 186 W | $939.00 | 8 in stock | View | |
| LS-3LC52522 | 525 x 22 mm | 217 W | $1,079.00 | 7 in stock | View |
