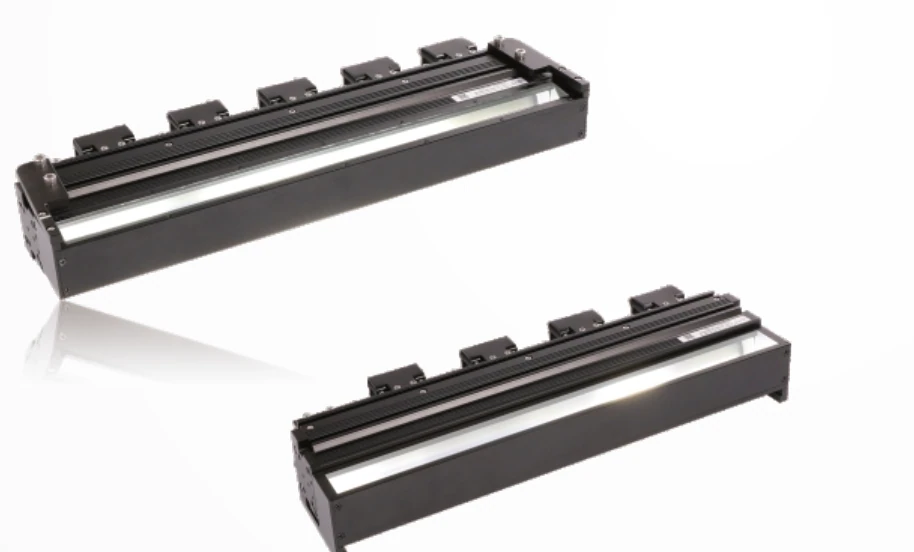

Coaxial line scan light, fan cooled (2COXL)
The Coaxial line scan light, fan cooled (2COXL) is a range of 12 line scan lights from LumaSpec Vision, from $249.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 84 mm, 124 mm, 164 mm, 204 mm, 244 mm, 284 mm, 324 mm, 364 mm, 404 mm, 444 mm, 484 mm, 884 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Special structure and optical lens design
- Good uniformity
- Good stability and high heat dissipation performance
- Stability design: fan can be dismounted independently; aviation connector; low production cost, high luminance; can be switched to a line scan light in a short time
- Option: diffuser plate to reduce lamp shadow and glare when imaging reflective workpieces
- Customizable: heat dissipation method, length, colour & colour temperature, cable length, installation method
Typical uses
- PCB inspection
- Mobile screen inspection
- Steel plate inspection
- Glass scratch inspection
- Display screen surface defect inspection
All 12 models in the Coaxial line scan light, fan cooled (2COXL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2COXL100 | 84 mm | 36 W | $249.00 | 14 in stock | View | |
| LS-2COXL140 | 124 mm | 54 W | $319.00 | 16 in stock | View | |
| LS-2COXL180 | 164 mm | 72 W | $399.00 | 14 in stock | View | |
| LS-2COXL220 | 204 mm | 90 W | $469.00 | 14 in stock | View | |
| LS-2COXL260 | 244 mm | 108 W | $549.00 | 10 in stock | View | |
| LS-2COXL300 | 284 mm | 126 W | $629.00 | 14 in stock | View | |
| LS-2COXL340 | 324 mm | 144 W | $699.00 | 16 in stock | View | |
| LS-2COXL380 | 364 mm | 198 W | $779.00 | 15 in stock | View | |
| LS-2COXL420 | 404 mm | 216 W | $849.00 | 13 in stock | View | |
| LS-2COXL460 | 444 mm | 234 W | $929.00 | 16 in stock | View | |
| LS-2COXL500 | 484 mm | 252 W | $999.00 | 12 in stock | View | |
| LS-2COXL900 | 884 mm | 432 W | $1,759.00 | 15 in stock | View |
