Line scan lights · 11 models · from $249.00

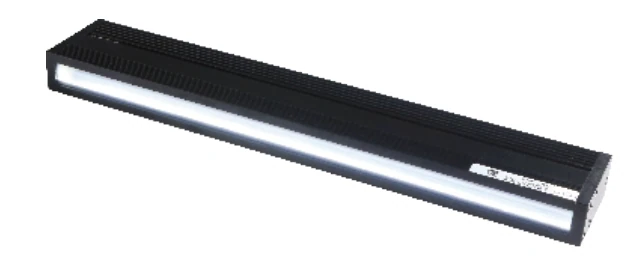

Compact line scan light, natural cooling (3LINL)
The Compact line scan light, natural cooling (3LINL) is a range of 11 line scan lights from LumaSpec Vision, from $249.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 84 mm, 124 mm, 164 mm, 204 mm, 244 mm, 284 mm, 324 mm, 364 mm, 404 mm, 444 mm, 484 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High power SMD LEDs, high luminance
- Compact, only 30 mm wide, natural cooling
- Standard model adds an optical film to improve uniformity
- Cost-effective; length can be customized
- For applications with space limitation and low luminance requirements
- Three types: standard (optical film, no suffix), high luminance (-N), high uniformity (-F)
- Customizable: heat dissipation method, length, colour & colour temperature, cable length, installation method
Typical uses
- Display surface dust inspection
- Label surface defect inspection
- Packaging carton position inspection
- Mobile screen film scratch inspection
- Li battery cell film defect inspection
All 11 models in the Compact line scan light, natural cooling (3LINL)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3LINL100 | 84 mm | 6.3 W | $249.00 | 14 in stock | View | |
| LS-3LINL140 | 124 mm | 9.4 W | $319.00 | 11 in stock | View | |
| LS-3LINL180 | 164 mm | 12.5 W | $399.00 | 12 in stock | View | |
| LS-3LINL220 | 204 mm | 15.6 W | $469.00 | 13 in stock | View | |
| LS-3LINL260 | 244 mm | 18.8 W | $549.00 | 11 in stock | View | |
| LS-3LINL300 | 284 mm | 21.9 W | $629.00 | 12 in stock | View | |
| LS-3LINL340 | 324 mm | 25 W | $699.00 | 10 in stock | View | |
| LS-3LINL380 | 364 mm | 28.1 W | $779.00 | 16 in stock | View | |
| LS-3LINL420 | 404 mm | 31.2 W | $849.00 | 14 in stock | View | |
| LS-3LINL460 | 444 mm | 34.4 W | $929.00 | 13 in stock | View | |
| LS-3LINL500 | 484 mm | 37.5 W | $999.00 | 13 in stock | View |
