Line scan lights · 8 models · from $219.00

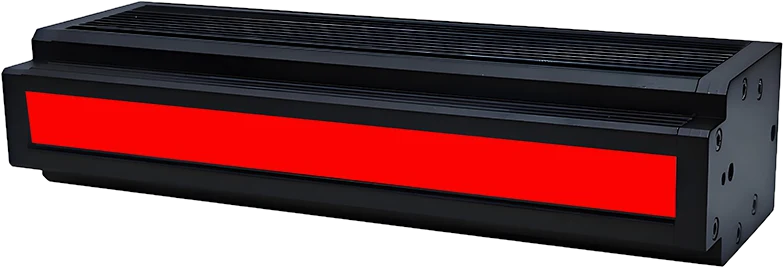

Line scan light with natural cooling (LNS)
The Line scan light with natural cooling (LNS) is a range of 8 line scan lights from LumaSpec Vision, from $219.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 100 mm, 200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High uniformity & parallelism, perfectly match to line scan camera.
- Light weight, good heat dissipation, high brightness.
- High cost performance, compact size, suitable for batch use.
- Fan-less natural cooling type, suitable for dust-free room.
- Can be used as direct light or backlight.
Typical uses
- PCB circuit inspection
- Screen surface (LCD, TP) scratch/stain detection
- Lithium battery surface defect/size inspection
- Paper/film printing defect inspection
All 8 models in the Line scan light with natural cooling (LNS)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-LNS-100 | 100 mm | 20 W | $219.00 | 11 in stock | View | |
| LS-LNS-200 | 200 mm | 34 W | $369.00 | 20 in stock | View | |
| LS-LNS-300 | 300 mm | 53 W | $529.00 | 13 in stock | View | |
| LS-LNS-400 | 400 mm | 68 W | $679.00 | 16 in stock | View | |
| LS-LNS-500 | 500 mm | 87 W | $829.00 | 11 in stock | View | |
| LS-LNS-600 | 600 mm | 101 W | $979.00 | 11 in stock | View | |
| LS-LNS-700 | 700 mm | 116 W | $1,129.00 | 13 in stock | View | |
| LS-LNS-800 | 800 mm | 135 W | $1,279.00 | 13 in stock | View |
