Line scan lights · 3 models · from $349.00

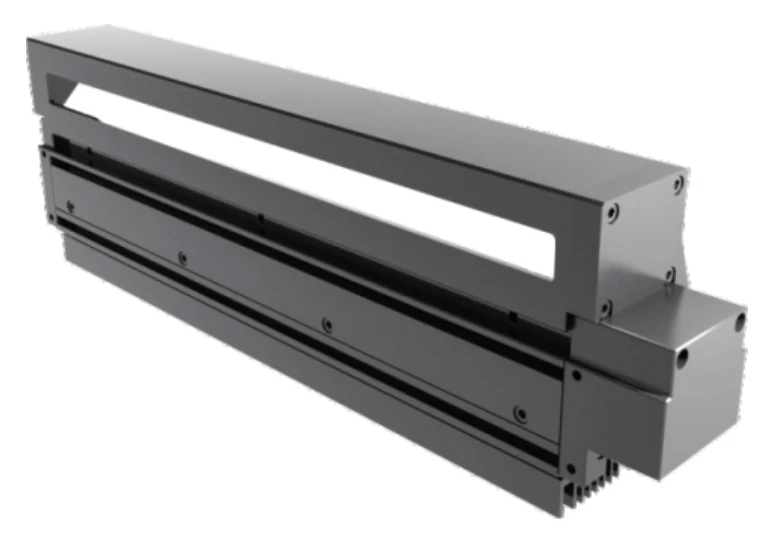

Coaxial line light, CULPG series
The Coaxial line light, CULPG series is a range of 3 line scan lights from LumaSpec Vision, from $349.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 140 x 15 mm, 290 x 15 mm, 440 x 15 mm |
|---|---|
| Colour | Red, Blue, White |
| Connector | 16M-6J |
Features
- The coaxial light is composed of LPG series light source plus a coaxial module
Typical uses
- Inspection of various membrane appearance
- Inspection of dirt on steel plate
- PCB board component inspection
- Inspection of shrink marks in resin
- Inspection of steel plate size
- Inspection of lithium battery appearance
All 3 models in the Coaxial line light, CULPG series
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-CULPG150 | 140 x 15 mm | 20 W | $349.00 | 12 in stock | View | |
| LS-CULPG300 | 290 x 15 mm | 39 W | $639.00 | 14 in stock | View | |
| LS-CULPG450 | 440 x 15 mm | 58 W | $919.00 | 11 in stock | View |
