Line scan lights · 11 models · from $209.00

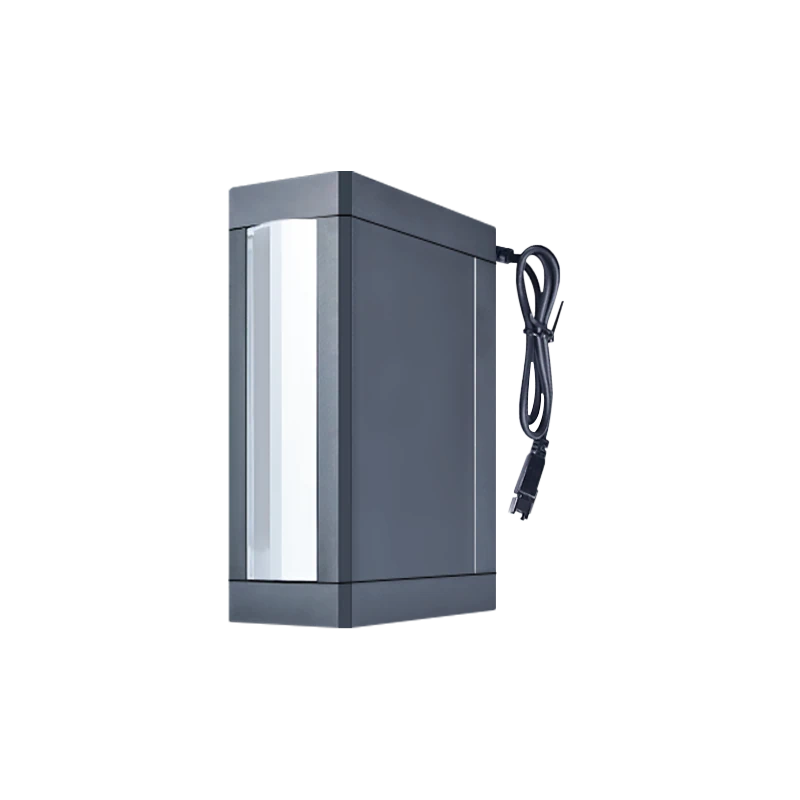

Mini line scan light 3.0 (LS-3LI)
The Mini line scan light 3.0 (LS-3LI) is a range of 11 line scan lights from LumaSpec Vision, from $209.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 64 x 16 mm, 70 x 6 mm, 104 x 16 mm, 124 x 16 mm, 160 x 6 mm, 174 x 16 mm, 190 x 6 mm, 214 x 16 mm, 264 x 16 mm, 270 x 6 mm, 364 x 16 mm |
|---|---|
| Connector | 3-pin flat |
| Colour | Red, Blue, White |
Features
- Effective luminous area: 364*16mm mm.
- High directional narrow spot.
- Multi-band optional and customized spectrum.
- Small size, flexible installation.
- Different lengths can be customized according to the actual installation size.
All 11 models in the Mini line scan light 3.0 (LS-3LI)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3LI8028 | 64 x 16 mm | 2.8 W | $209.00 | 3 in stock | View | |
| LS-3LI8010 | 70 x 6 mm | 1.8 W | $219.00 | 8 in stock | View | |
| LS-3LI12028 | 104 x 16 mm | 5.6 W | $289.00 | 3 in stock | View | |
| LS-3LI14028 | 124 x 16 mm | 6.8 W | $319.00 | 2 in stock | View | |
| LS-3LI17010 | 160 x 6 mm | 2.6 W | $389.00 | 5 in stock | View | |
| LS-3LI19028 | 174 x 16 mm | 17 W | $419.00 | 9 in stock | View | |
| LS-3LI20010 | 190 x 6 mm | 2.7 W | $449.00 | 2 in stock | View | |
| LS-3LI23028 | 214 x 16 mm | 26 W | $489.00 | 5 in stock | View | |
| LS-3LI28028 | 264 x 16 mm | 19 W | $589.00 | 5 in stock | View | |
| LS-3LI28010 | 270 x 6 mm | 3.4 W | $599.00 | 2 in stock | View | |
| LS-3LI38028 | 364 x 16 mm | 24 W | $779.00 | 13 in stock | View |
