Line scan lights · 22 models · from $279.00

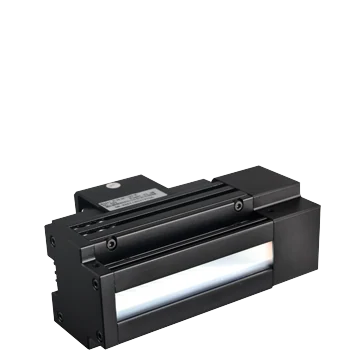

High-brightness line lights
The High-brightness line lights is a range of 22 line scan lights from LumaSpec Vision, from $279.00. It comes in 22 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 143 mm, Red, 143 mm, White, 243 mm, White, 343 mm, White, 393 mm, White, 420 mm, 443 mm, White, 543 mm, White, 643 mm, White, 770 mm, White, 870 mm, White, 970 mm, White, 1070 mm, White, 1170 mm, White, 1270 mm, White, 1370 mm, White and 6 more |
|---|---|
| Colour | Red, White |
Features
- One-piece aluminum alloy housing with fan for good heat dissipation
- Imported high-power LEDs with brightness up to 100 × 10, 000 lux
- Nut slots on top and bottom for flexible mounting
All 22 models in the High-brightness line lights
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-LTHS-100-R | 143 mm, Red | 48 W | $279.00 | 4 in stock | View |
| LS-LTHS-100-W | 143 mm, White | 48 W | $279.00 | 2 in stock | View |
| LS-LTHS-200-W | 243 mm, White | 96 W | $469.00 | 5 in stock | View |
| LS-LTHS-300-W | 343 mm, White | 129.6 W | $659.00 | 4 in stock | View |
| LS-LTHS-350-W | 393 mm, White | 173 W | $749.00 | 3 in stock | View |
| LS-LTHS-400-WX | 420 mm | 96 W | $839.00 | 5 in stock | View |
| LS-LTHS-400-W | 443 mm, White | 172.8 W | $839.00 | 5 in stock | View |
| LS-LTHS-500-W | 543 mm, White | 216 W | $1,029.00 | 2 in stock | View |
| LS-LTHS-600-W | 643 mm, White | 259.2 W | $1,219.00 | 3 in stock | View |
| LS-LTHS-700-W | 770 mm, White | 307.2 W | $1,409.00 | 2 in stock | View |
| LS-LTHS-800-W | 870 mm, White | 384 W | $1,599.00 | 4 in stock | View |
| LS-LTHS-900-W | 970 mm, White | 393.6 W | $1,789.00 | 5 in stock | View |
| LS-LTHS-1000-W | 1070 mm, White | 432 W | $1,979.00 | 3 in stock | View |
| LS-LTHS-1100-W | 1170 mm, White | 480 W | $2,169.00 | 4 in stock | View |
| LS-LTHS-1200-W | 1270 mm, White | 514.8 W | $2,359.00 | 3 in stock | View |
| LS-LTHS-1300-W | 1370 mm, White | 576 W | $2,549.00 quote | 5 in stock | View |
| LS-LTHS-1500-W | 1570 mm, White | 653 W | $2,919.00 quote | 4 in stock | View |
| LS-LTHS-1600-W | 1670 mm, White | 672 W | $3,109.00 quote | 5 in stock | View |
| LS-LTHS-1700-W | 1770 mm, White | 734.4 W | $3,299.00 quote | 2 in stock | View |
| LS-LTHS-1800-W | 1870 mm, White | 778 W | $3,489.00 quote | 5 in stock | View |
| LS-LTHS-1900-W | 1970 mm, White | 820.8 W | $3,679.00 quote | 4 in stock | View |
| LS-LTHS-2000-W | 2070 mm, White | 864 W | $3,869.00 quote | 5 in stock | View |
