Line scan lights · 11 models · from $249.00

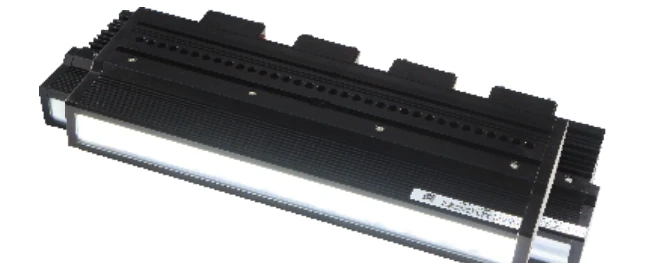

Natural cooling line scan light (3LIN)
The Natural cooling line scan light (3LIN) is a range of 11 line scan lights from LumaSpec Vision, from $249.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 84 mm, 124 mm, 164 mm, 204 mm, 244 mm, 284 mm, 324 mm, 364 mm, 404 mm, 444 mm, 484 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High power SMD LEDs, high luminance
- Standard model adds an optical film to improve uniformity
- Natural cooling with no fan; length can be customized
- For dusty environments or where a fan interferes with the object
- Three types: standard (optical film, no suffix), high luminance (-N), high uniformity (-F)
- Customizable: heat dissipation method, length, colour & colour temperature, cable length, installation method
Typical uses
- Cloth printing defect inspection
- Sticky label defect inspection
- Release paper protective film position inspection
- Mobile screen film scratch inspection
- Li battery cell film defect inspection
All 11 models in the Natural cooling line scan light (3LIN)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-3LIN100 | 84 mm | 14.4 W | $249.00 | 15 in stock | View | |
| LS-3LIN140 | 124 mm | 21.6 W | $319.00 | 14 in stock | View | |
| LS-3LIN180 | 164 mm | 28.8 W | $399.00 | 11 in stock | View | |
| LS-3LIN220 | 204 mm | 36 W | $469.00 | 13 in stock | View | |
| LS-3LIN260 | 244 mm | 43.2 W | $549.00 | 9 in stock | View | |
| LS-3LIN300 | 284 mm | 50.4 W | $629.00 | 17 in stock | View | |
| LS-3LIN340 | 324 mm | 57.6 W | $699.00 | 14 in stock | View | |
| LS-3LIN380 | 364 mm | 64.8 W | $779.00 | 14 in stock | View | |
| LS-3LIN420 | 404 mm | 72 W | $849.00 | 12 in stock | View | |
| LS-3LIN460 | 444 mm | 79.2 W | $929.00 | 16 in stock | View | |
| LS-3LIN500 | 484 mm | 86.4 W | $999.00 | 18 in stock | View |
