Line scan lights · 9 models · from $389.00

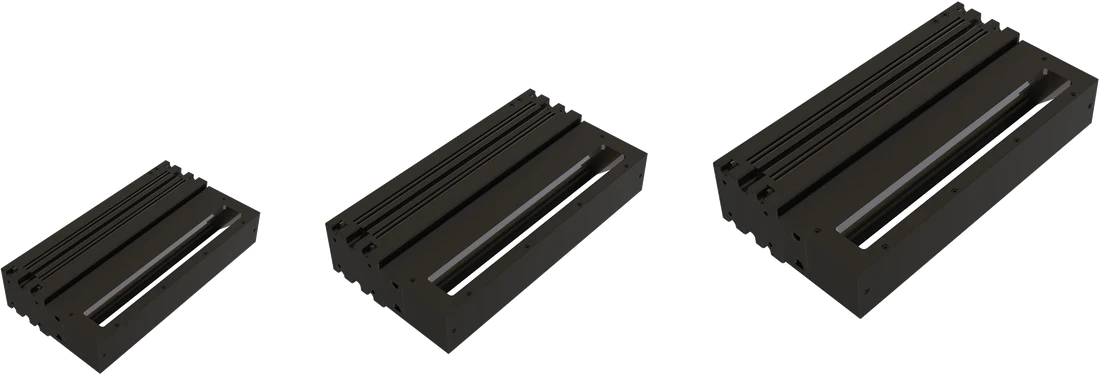

Coaxial line scan light (COX)
The Coaxial line scan light (COX) is a range of 9 line scan lights from LumaSpec Vision, from $389.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 600 mm, 700 mm, 900 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 48 V |
Features
- High-speed, large-format, high-brightness coaxial illumination.
- High-efficiency optical structure.
- Compatible with surface inspection of both glossy and matte workpiece.
- Highly directional illumination, reduces divergence and enhances inspection effectiveness.
Typical uses
- Substrate component inspection
- Separator appearance check
- Touch panel damage/dent detection
All 9 models in the Coaxial line scan light (COX)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-COX-100 | 100 mm | 38 W | $389.00 | 10 in stock | View | |
| LS-COX-150 | 150 mm | 58 W | $519.00 | 16 in stock | View | |
| LS-COX-200 | 200 mm | 58 W | $649.00 | 13 in stock | View | |
| LS-COX-250 | 250 mm | 68 W | $779.00 | 14 in stock | View | |
| LS-COX-300 | 300 mm | 68 W | $919.00 | 17 in stock | View | |
| LS-COX-400 | 400 mm | 110 W | $1,179.00 | 14 in stock | View | |
| LS-COX-600 | 600 mm | 180 W | $1,709.00 | 15 in stock | View | |
| LS-COX-700 | 700 mm | 210 W | $1,969.00 | 16 in stock | View | |
| LS-COX-900 | 900 mm | 260 W | $2,499.00 | 17 in stock | View |
