Line scan lights · 52 models · from $369.00
Line light source (LPG)

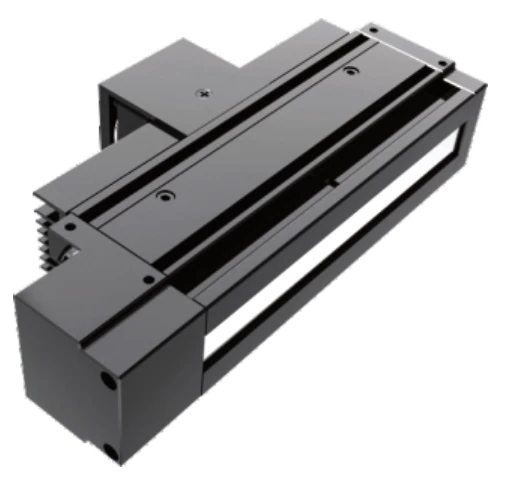

The Line light source (LPG) is a range of 52 line scan lights from LumaSpec Vision, from $369.00. It comes in 16 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 150 x 17 mm, 300 x 17 mm, 450 x 17 mm, 600 x 17 mm, 750 x 17 mm, 900 x 17 mm, 1050 x 17 mm, 1200 x 17 mm, 1350 x 17 mm, 1500 x 17 mm, 1650 x 17 mm, 1800 x 17 mm, 1950 x 17 mm, 2100 x 17 mm, 2250 x 17 mm, 2400 x 17 mm |
|---|---|
| Colour | Red, Blue, White |
| Connector | 16M-6J, 24M-6J |
Features
- High brightness
- High uniformity
- Can be used as front light and back light
- Customized different lengths
Typical uses
- Standard line light use
- High speed line scan inspection
- Resistance surface character inspection
- Inspection of graphene material appearance
- Inspection of cowhide leather surface defects
- Aluminium plate surface defect inspection
All 52 models in the Line light source (LPG)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-LPG150 | 150 x 17 mm | 20 W | $369.00 | 13 in stock | View | |
| LS-2LPG150-C | 150 x 17 mm | $369.00 | 2 in stock | View | ||
| LS-LPG300 | 300 x 17 mm | 39 W | $659.00 | 9 in stock | View | |
| LS-LPG1350 | 173 W | $659.00 | 11 in stock | View | ||
| LS-LPG1500 | 192 W | $659.00 | 11 in stock | View | ||
| LS-LPG1650 | 212 W | $659.00 | 8 in stock | View | ||
| LS-LPG1800 | 231 W | $659.00 | 14 in stock | View | ||
| LS-LPG1950 | 250 W | $659.00 | 11 in stock | View | ||
| LS-LPG2100 | 269 W | $659.00 | 10 in stock | View | ||
| LS-LPG2250 | 288 W | $659.00 | 10 in stock | View | ||
| LS-LPG2400 | 308 W | $659.00 | 9 in stock | View | ||
| LS-2LPG150 | 54 W | $659.00 | 12 in stock | View | ||
| LS-2LPG300 | 108 W | $659.00 | 7 in stock | View | ||
| LS-2LPG450 | 162 W | $659.00 | 10 in stock | View | ||
| LS-2LPG600 | 216 W | $659.00 | 9 in stock | View | ||
| LS-2LPG750 | 270 W | $659.00 | 7 in stock | View | ||
| LS-2LPG900 | 324 W | $659.00 | 13 in stock | View | ||
| LS-2LPG1050 | 378 W | $659.00 | 10 in stock | View | ||
| LS-2LPG1200 | 432 W | $659.00 | 10 in stock | View | ||
| LS-2LPG1350 | 486 W | $659.00 | 10 in stock | View | ||
| LS-2LPG1500 | 540 W | $659.00 | 11 in stock | View | ||
| LS-2LPG1650 | 594 W | $659.00 | 8 in stock | View | ||
| LS-2LPG1800 | 648 W | $659.00 | 12 in stock | View | ||
| LS-2LPG1950 | 702 W | $659.00 | 9 in stock | View | ||
| LS-2LPG2100 | 756 W | $659.00 | 11 in stock | View | ||
| LS-2LPG300-C | 300 x 17 mm | $659.00 | 3 in stock | View | ||
| LS-2LPG2100-C | $659.00 | 5 in stock | View | |||
| LS-LPG450 | 450 x 17 mm | 58 W | $939.00 | 7 in stock | View | |
| LS-2LPG450-C | 450 x 17 mm | $939.00 | 5 in stock | View | ||
| LS-LPG600 | 600 x 17 mm | 77 W | $1,219.00 | 10 in stock | View | |
| LS-2LPG600-C | 600 x 17 mm | $1,219.00 | 4 in stock | View | ||
| LS-LPG750 | 750 x 17 mm | 96 W | $1,509.00 | 7 in stock | View | |
| LS-2LPG750-C | 750 x 17 mm | $1,509.00 | 4 in stock | View | ||
| LS-LPG900 | 900 x 17 mm | 116 W | $1,789.00 | 14 in stock | View | |
| LS-2LPG900-C | 900 x 17 mm | $1,789.00 | 4 in stock | View | ||
| LS-LPG1050 | 1050 x 17 mm | 135 W | $2,069.00 | 8 in stock | View | |
| LS-2LPG1050-C | 1050 x 17 mm | $2,069.00 | 2 in stock | View | ||
| LS-LPG1200 | 1200 x 17 mm | 154 W | $2,359.00 | 9 in stock | View | |
| LS-2LPG1200-C | 1200 x 17 mm | $2,359.00 | 4 in stock | View | ||
| LS-LPG1350-C | 1350 x 17 mm | $2,639.00 | 4 in stock | View | ||
| LS-2LPG1350-C | 1350 x 17 mm | $2,639.00 | 3 in stock | View | ||
| LS-LPG1500-C | 1500 x 17 mm | $2,919.00 | 3 in stock | View | ||
| LS-2LPG1500-C | 1500 x 17 mm | $2,919.00 | 5 in stock | View | ||
| LS-LPG1650-C | 1650 x 17 mm | $3,209.00 | 3 in stock | View | ||
| LS-2LPG1650-C | 1650 x 17 mm | $3,209.00 | 3 in stock | View | ||
| LS-LPG1800-C | 1800 x 17 mm | $3,489.00 | 4 in stock | View | ||
| LS-2LPG1800-C | 1800 x 17 mm | $3,489.00 | 3 in stock | View | ||
| LS-LPG1950-C | 1950 x 17 mm | $3,769.00 | 4 in stock | View | ||
| LS-2LPG1950-C | 1950 x 17 mm | $3,769.00 | 2 in stock | View | ||
| LS-LPG2100-C | 2100 x 17 mm | $4,059.00 | 2 in stock | View | ||
| LS-LPG2250-C | 2250 x 17 mm | $4,339.00 | 2 in stock | View | ||
| LS-LPG2400-C | 2400 x 17 mm | $4,619.00 | 4 in stock | View |
