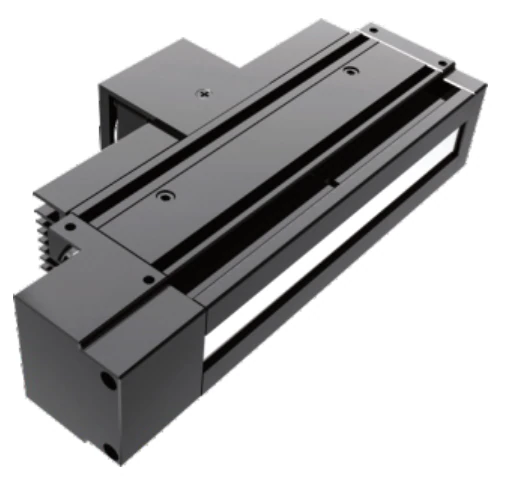

1650 x 17 mm Line light source (LPG) (LS-LPG1650)

Name: 1650 x 17 mm Line light source (LPG) (LS-LPG1650)
Brand: LumaSpec Vision
SKU: LS-LPG1650
Price: 3209.00 USD
Availability: InStock

Model LS-LPG1650

High-brightness, high-uniformity line light that can be used as front or back light, in customisable lengths. These pages give the dimension drawings for the long LPG sizes and the 2LPG version.

Datasheet (PDF) - LS-LPG1650

Features

High brightness
High uniformity
Can be used as front light and back light
Customized different lengths

Specifications

Model	LS-LPG1650
Wavelength red	620-630 nm
Wavelength green	520-530 nm
Wavelength blue	465-475 nm
Colour temperature white	6000-6500 K
Wavelength IR	850-940 nm
Wavelength UV	365-405 nm
Storage temperature	20 to 60 °C
Operating temperature	0 to 40 °C
Humidity	20-85 %RH (non-condensing)
Optional accessories	Extension cable
Controller	LS-CPL48320C-2T / LS-CPL48760C-2T (the selected controller should match the power of the light source)
Service life (red)	60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)	30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Warranty	1 year from shipment (faults not caused by the user: free repair or replacement)
Illuminance chart reference	LS-LPG300-W; uniformity LS-LPG300-W, FOV 220 x 220 mm at LWD 40/80/100 mm
Emitting width (mm)	17
Cable length (mm)	1500
Emitting area (mm)	1650 x 17
Overall length (mm)	1720
Section (mm)	45 wide (top view), 40 base, 55 / 72 high
Mounting	2-2x8-M4 (position can be adjusted to the installation requirement)
Connector	16M-6J/16J6TQ
Connectors	2X (as printed)
Shipping weight	4.30 kg

Applications

Standard line light use
High speed line scan inspection
Resistance surface character inspection
Inspection of graphene material appearance
Inspection of cowhide leather surface defects
Aluminium plate surface defect inspection
Printing inspection
Keyboard screen inspection
Rearview mirror flatness inspection
Piece goods defect inspection (IR850)
Cigarette holder count
Screen defect inspection
Cosmetics character inspection
Copper sheet defect inspection
PCB board inspection
PCB 1D code inspection

Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers Lenses Selection guide
