Line scan lights · 19 models · from $279.00

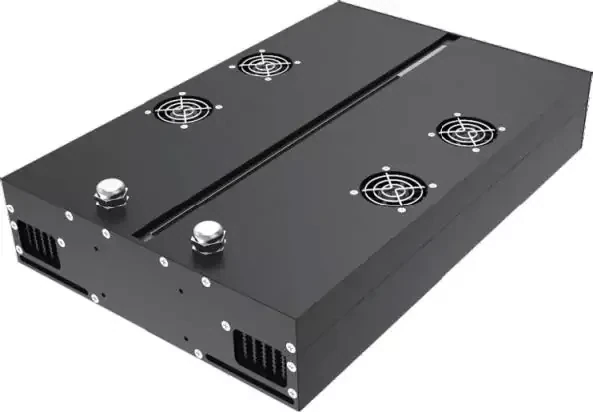

Tunnel line light source (TUG series)
The Tunnel line light source (TUG series) is a range of 19 line scan lights from LumaSpec Vision, from $279.00. It comes in 19 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 102 x 88 mm, 202 x 88 mm, 302 x 88 mm, 402 x 88 mm, 502 x 88 mm, 602 x 88 mm, 702 x 88 mm, 802 x 88 mm, 902 x 88 mm, 1002 x 88 mm, 1102 x 88 mm, 1202 x 88 mm, 1302 x 88 mm, 1402 x 88 mm, 1502 x 88 mm, 1602 x 88 mm and 3 more |
|---|---|
| Colour | Red, Blue, White |
| Connector | 16M-6J, 24M-6J |
Features
- Inspection of the printing quality of standard products
- Illuminance value is 3-4 times that of the traditional tunnel light source
- Innovative structural design, smaller size, easier installation
- Innovative light path design and heat dissipation design
- Illumination more uniform, longer life
- Brightness 3-4 times that of a traditional tunnel light
- New structural design: smaller and simpler to install
- Innovative light-path design and heat-dissipation design
Typical uses
- Linear scanning inspection in the textile industry
- Quality inspection in the printing industry
- PCB character recognition
- FPC membrane inspection
- Appearance inspection of mobile phone shells
- Paper surface inspection
All 19 models in the Tunnel line light source (TUG series)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-TUG110270 | 102 x 88 mm | 72 W | $279.00 | 8 in stock | View | |
| LS-TUG210270 | 202 x 88 mm | 144 W | $469.00 | 8 in stock | View | |
| LS-TUG310270 | 302 x 88 mm | 216 W | $659.00 | 8 in stock | View | |
| LS-TUG410270 | 402 x 88 mm | 288 W | $849.00 | 8 in stock | View | |
| LS-TUG510270 | 502 x 88 mm | 360 W | $1,039.00 | 9 in stock | View | |
| LS-TUG610270 | 602 x 88 mm | 432 W | $1,229.00 | 14 in stock | View | |
| LS-TUG710270 | 702 x 88 mm | 504 W | $1,419.00 | 9 in stock | View | |
| LS-TUG810270 | 802 x 88 mm | 576 W | $1,599.00 | 14 in stock | View | |
| LS-TUG910270 | 902 x 88 mm | 648 W | $1,789.00 | 7 in stock | View | |
| LS-TUG1010270 | 1002 x 88 mm | 720 W | $1,979.00 | 14 in stock | View | |
| LS-TUG1110270 | 1102 x 88 mm | 792 W | $2,169.00 | 15 in stock | View | |
| LS-TUG1210270 | 1202 x 88 mm | 864 W | $2,359.00 | 11 in stock | View | |
| LS-TUG1310270 | 1302 x 88 mm | 936 W | $2,549.00 | 7 in stock | View | |
| LS-TUG1410270 | 1402 x 88 mm | 1008 W | $2,739.00 | 9 in stock | View | |
| LS-TUG1510270 | 1502 x 88 mm | 1080 W | $2,929.00 | 9 in stock | View | |
| LS-TUG1610270 | 1602 x 88 mm | 1152 W | $3,119.00 | 11 in stock | View | |
| LS-TUG1710270 | 1702 x 88 mm | 1224 W | $3,309.00 | 10 in stock | View | |
| LS-TUG1810270 | 1802 x 88 mm | 1296 W | $3,489.00 | 7 in stock | View | |
| LS-TUG1910270 | 1902 x 88 mm | 1368 W | $3,679.00 | 12 in stock | View |
