Line scan lights · 7 models · from $359.00

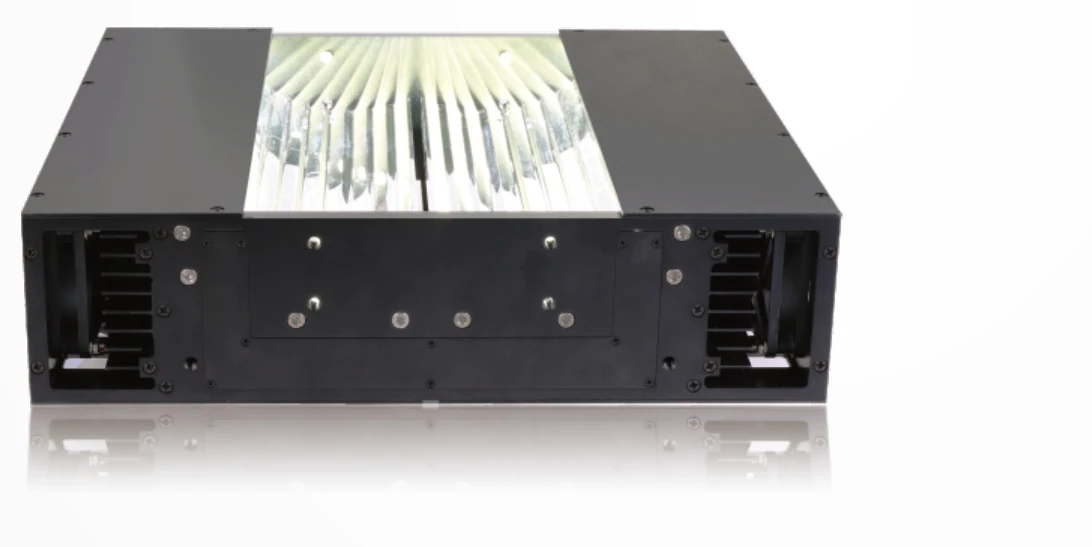

Multi-angle line scan light, fan cooled (2LINM)
The Multi-angle line scan light, fan cooled (2LINM) is a range of 7 line scan lights from LumaSpec Vision, from $359.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 132 x 144 mm, 200 mm, 250 mm, 300 mm, 500 mm, 880 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- Light reflected from different angles; luminance can reach 1,100,000 lux (printed '1100,000LUS')
- Concentrated light, high uniformity
- Compact structure
- Multi-area line scan light: multiple-direction light paths give obvious contrast between scratches and background (vs tunnel line scan light)
- Customizable: multi-area control, length, colour & colour temperature, cable length, installation method
Typical uses
- Scratches, bubbles, stains and fingerprints on mobile screen surfaces
- Crack / scratch / glue stamp / greasy dirt / bad point / dead pixel inspection
All 7 models in the Multi-angle line scan light, fan cooled (2LINM)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2LINM132 | 132 x 144 mm | 108 W | $359.00 | 15 in stock | View | |
| LS-2LINM200 | 200 mm | 180 W | $469.00 | 13 in stock | View | |
| LS-2LINM250 | 250 mm | 216 W | $559.00 | 12 in stock | View | |
| LS-2LINMH250 | 250 mm | 324 W | $559.00 | 17 in stock | View | |
| LS-2LINMH300 | 300 mm | 360 W | $659.00 | 15 in stock | View | |
| LS-2LINMH500 | 500 mm | 576 W | $1,029.00 | 18 in stock | View | |
| LS-2LINM880 | 880 mm | 648 W | $1,749.00 | 8 in stock | View |
