Line scan lights · 4 models · from $409.00

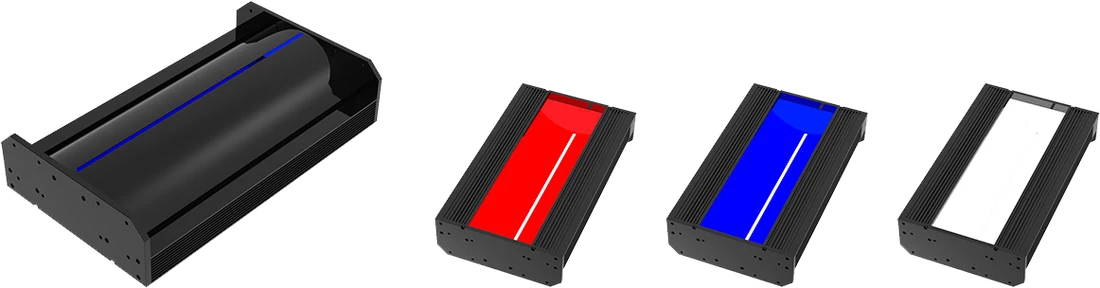

Tunnel line scan light (STN)
The Tunnel line scan light (STN) is a range of 4 line scan lights from LumaSpec Vision, from $409.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 120 mm, 200 mm, 250 mm, 400 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V, 48 V |
Features
- High brightness meets high-speed inspection requirements.
- Better uniformity, suitable for uneven and large-area reflective inspection.
- Superior heat dissipation design ensures long-term stability of the light.
Typical uses
- Surface irregularity defect detection
- PCB substrate inspection
- Printed surface inspection
All 4 models in the Tunnel line scan light (STN)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-STN-120X60 | 120 mm | 9.5 W | $409.00 | 12 in stock | View | |
| LS-STN-200 | 200 mm | 65 W | $609.00 | 11 in stock | View | |
| LS-STN-250 | 250 mm | 95 W | $729.00 | 15 in stock | View | |
| LS-STN-400 | 400 mm | 125 W | $1,099.00 | 13 in stock | View |
