Line scan lights · 21 models · from $249.00

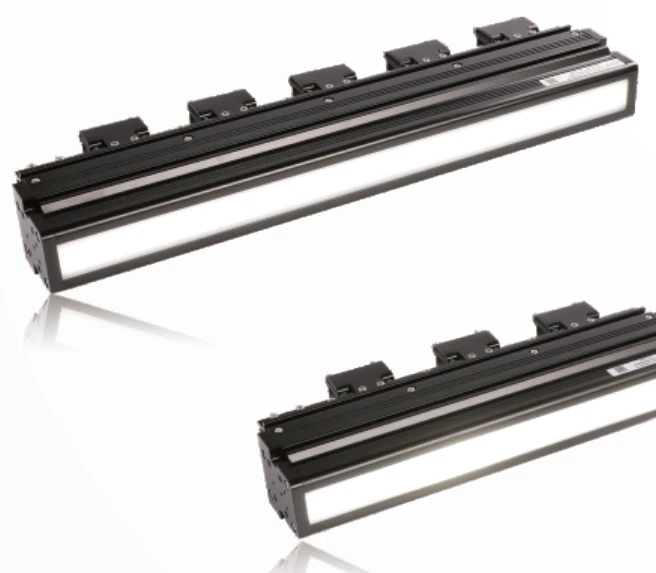

High uniformity line scan light, fan cooled (2LINS)
The High uniformity line scan light, fan cooled (2LINS) is a range of 21 line scan lights from LumaSpec Vision, from $249.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 84 mm, 124 mm, 164 mm, 204 mm, 244 mm, 284 mm, 324 mm, 364 mm, 404 mm, 444 mm, 484 mm, 764 mm, 1050 mm, 1184 mm, 2684 mm |
|---|---|
| Colour | Red, Green, Blue, White |
| Voltage | 24 V |
Features
- High power SMD LED array design, high luminance
- Built-in diffuser plate for high uniformity
- Length can be customized
- Two diffuser plates with different transmittance: uniformity type (2LINS) for transmitted light, high luminance type (2LIN) for reflected light
- Stability design: fan can be dismounted independently; aviation connector
- Customizable: heat dissipation method, length, colour & colour temperature, cable length, installation method
- High power paste LED array design, high luminance
- Build-in diffuser plate, to make the illumination with high uniformity
Typical uses
- Printed packing inspection
- Tile pattern inspection
- Metal surface defect inspection
- Plastic component defect inspection
- Printed character inspection
All 21 models in the High uniformity line scan light, fan cooled (2LINS)
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-2LINS100 | 84 mm | 36 W | $249.00 | 12 in stock | View | |
| LS-2LINS140 | 124 mm | 54 W | $319.00 | 16 in stock | View | |
| LS-2LINS180 | 164 mm | 72 W | $399.00 | 18 in stock | View | |
| LS-2LINS220 | 204 mm | 90 W | $469.00 | 12 in stock | View | |
| LS-2LINS260 | 244 mm | 108 W | $549.00 | 13 in stock | View | |
| LS-2LINS300 | 284 mm | 126 W | $629.00 | 14 in stock | View | |
| LS-2LINS340 | 324 mm | 144 W | $699.00 | 12 in stock | View | |
| LS-2LINS380 | 364 mm | 162 W | $779.00 | 11 in stock | View | |
| LS-2LINS420 | 404 mm | 180 W | $849.00 | 13 in stock | View | |
| LS-2LINS460 | 444 mm | 198 W | $929.00 | 11 in stock | View | |
| LS-2LINS500 | 484 mm | 216 W | $999.00 | 15 in stock | View | |
| LS-2LINS780 | 764 mm | 342 W | $1,529.00 | 18 in stock | View | |
| LS-2LINS900 | 432 W | $1,789.00 | 15 in stock | View | ||
| LS-2LINS1066 | 1050 mm | 432 W | $2,069.00 | 11 in stock | View | |
| LS-2LINS1200 | 1184 mm | 504 W | $2,329.00 | 15 in stock | View | |
| LS-2LINS1300 | 540 W | $2,549.00 | 15 in stock | View | ||
| LS-2LINS1500 | 648 W | $2,919.00 | 15 in stock | View | ||
| LS-2LINS1600 | 648 W | $3,109.00 | 12 in stock | View | ||
| LS-2LINS1720 | 720 W | $3,339.00 | 13 in stock | View | ||
| LS-2LINS1916 | 756 W | $3,709.00 | 13 in stock | View | ||
| LS-2LINS2700 | 2684 mm | 1080 W | $5,159.00 | 15 in stock | View |
