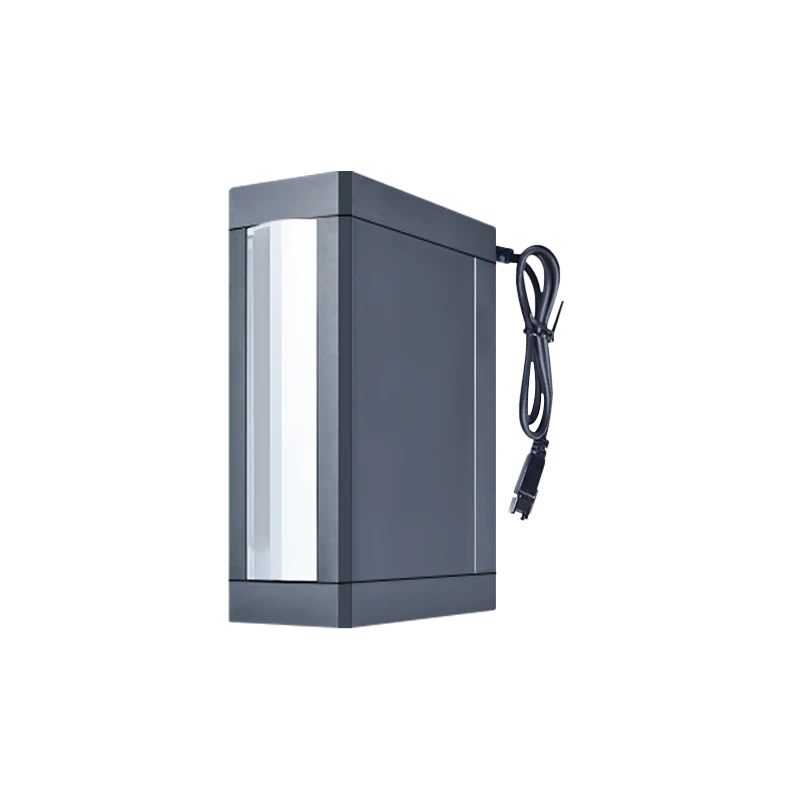

174 x 16 mm Mini line scan light 3.0 (LS-3LI) (LS-3LI19028)
Model LS-3LI19028
LED line scan light source is suitable for connector PIN positioning detection, hardware scratches and surface defects detection, computer screen size detection, etc
Features
- Effective luminous area: 364*16mm mm.
- High directional narrow spot.
- Multi-band optional and customized spectrum.
- Small size, flexible installation.
- Different lengths can be customized according to the actual installation size.
Specifications
| Model | LS-3LI19028 |
|---|---|
| Color | W/R/B |
| Power(W) | 17W |
| Luminous surface size | 174*16mm |
| Length (outer diameter) | 190mm |
| Width (inner diameter) | 28mm |
| High | 56mm |
| Plug specification | Default 3PIN2 pin interface |
| Product Type | Mini Line scan light |
| LED Type | SMD |
| Colors | red/white/blue |
| Power | 17W |
| Color temperature/wavelength | 6000-6500K |
| Storage environment | Temperature : -20-60℃ ; Humidity : 20-85%RH(Non-condensing) |
| Operating environment | Temperature : 0-40℃ ; Humidity : 20-85%RH(Non-condensing) |
| Service life | When the environment is 25℃, the white color works continuously for 30000 hours with 50% illumination, and the attenuation is 50% |
| Quality guarantee | HF products from the date of shipment 1 year, non-human causes of failure, free maintenance or replacement services |
| Shipping weight | 0.50 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Mini line scan light 3.0 (LS-3LI) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-3LI8028 | 64 x 16 mm | 2.8 W | $209.00 | 3 in stock | View | |
| LS-3LI8010 | 70 x 6 mm | 1.8 W | $219.00 | 8 in stock | View | |
| LS-3LI12028 | 104 x 16 mm | 5.6 W | $289.00 | 3 in stock | View | |
| LS-3LI14028 | 124 x 16 mm | 6.8 W | $319.00 | 2 in stock | View | |
| LS-3LI17010 | 160 x 6 mm | 2.6 W | $389.00 | 5 in stock | View | |
| LS-3LI20010 | 190 x 6 mm | 2.7 W | $449.00 | 2 in stock | View | |
| LS-3LI23028 | 214 x 16 mm | 26 W | $489.00 | 5 in stock | View | |
| LS-3LI28028 | 264 x 16 mm | 19 W | $589.00 | 5 in stock | View | |
| LS-3LI28010 | 270 x 6 mm | 3.4 W | $599.00 | 2 in stock | View | |
| LS-3LI38028 | 364 x 16 mm | 24 W | $779.00 | 13 in stock | View |
