Line scan lights

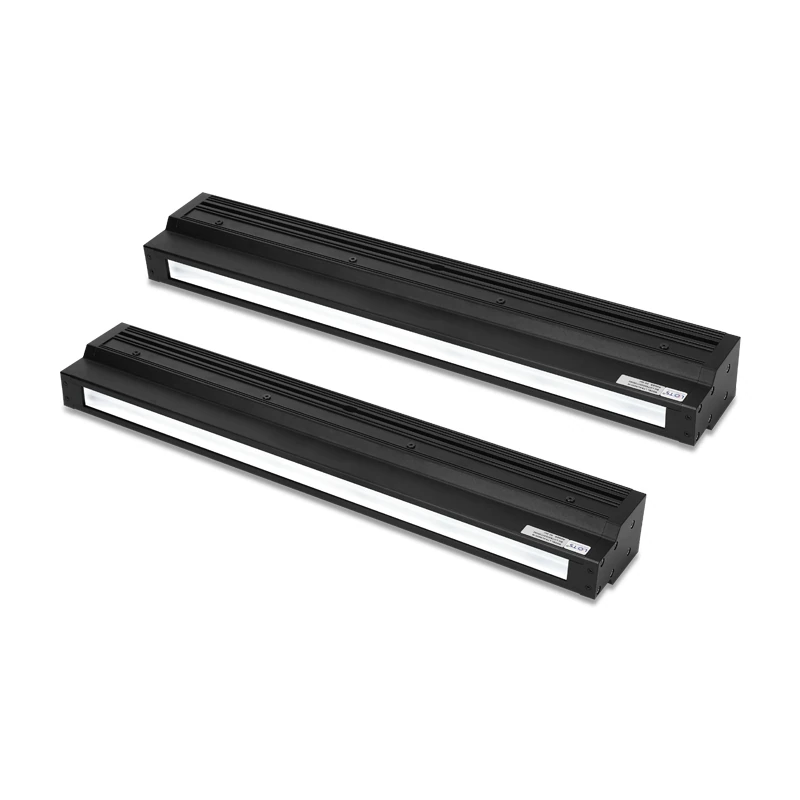

Natural cooling line scan light (4LIN) (LS-4LIN100)
Model LS-4LIN100
High uniformity & parallelism, perfectly match to line scan camera. Light weight, good heat dissipation, high brightness. High cost performance, compact size, suitable for batch use.
Features
- High uniformity & parallelism, perfectly match to line scan camera
- Light weight, good heat dissipation, high brightness
- High cost performance, compact size, suitable for batch use
- Fan-less natural cooling type, suitable for dust-free room
- Can be used as direct light or backlight
- Can replace fiber line light
Specifications
| Model | LS-4LIN100 |
|---|---|
| Cooling | Natural Cooling |
| Note | UV & IR light can be customized as required. |
| Voltage | 24V |
| Model as printed | LS-4LIN100-R/BGW |
| Dimension | L140xW48xH75(mm) |
| Power | 20W |
| Shipping weight | 0.60 kg |
Applications
- Steel plate inspection
- Glass plate inspection
- PCB board inspection
- Metal surface inspection
- Lithium battery film inspection
- Visual inspection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Natural cooling line scan light (4LIN) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-4LIN200 | 34 W | $539.00 | 17 in stock | View | ||
| LS-4LIN300 | 53 W | $729.00 | 15 in stock | View | ||
| LS-4LIN400 | 68 W | $919.00 | 13 in stock | View | ||
| LS-4LIN500 | 87 W | $1,109.00 | 16 in stock | View | ||
| LS-4LIN600 | 101 W | $1,299.00 | 12 in stock | View | ||
| LS-4LIN700 | 116 W | $1,489.00 | 14 in stock | View | ||
| LS-4LIN800 | 135 W | $1,679.00 | 14 in stock | View | ||
| LS-4LIN900 | 154 W | $1,869.00 | 11 in stock | View | ||
| LS-4LIN1000 | 168 W | $2,049.00 | 16 in stock | View |
