Line scan lights

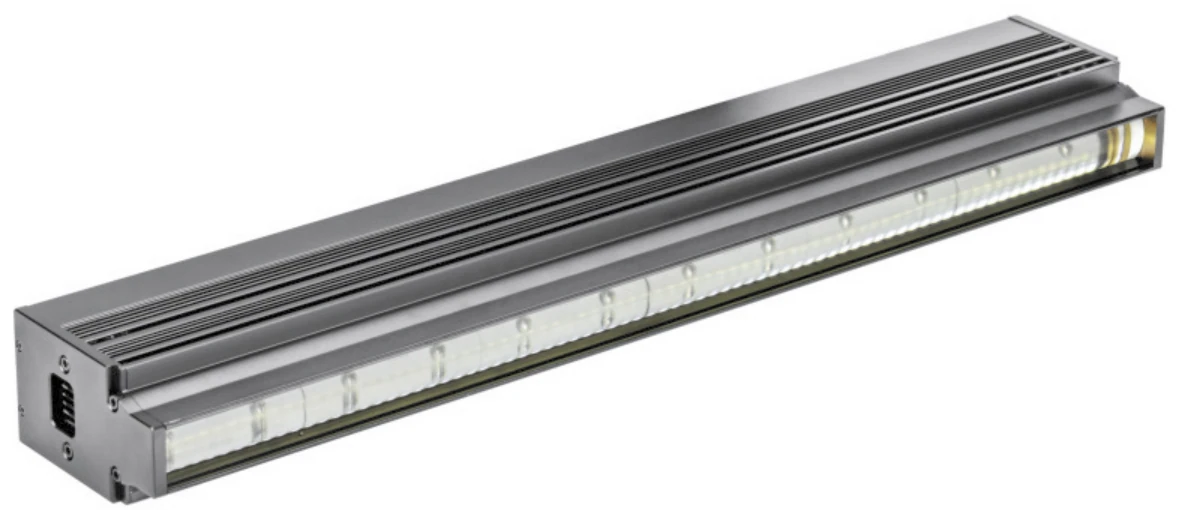

375 x 22 mm Ultra-high-brightness line light (LSH) (LS-LSH375)
Model LS-LSH375
New-generation high-brightness line light with an air-cooled design and brightness up to 1.8 million lux. It can be used as a front light or a back light, and lengths can be customised to the site installation size.
Features
- New-generation high-brightness line light, air-cooled design, brightness up to 1,800,000 lux
- Can be used as a front light or as a back light
- Different lengths can be customised to the site installation size
Specifications
| Model | LS-LSH375 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Warranty | 1 year from shipment (faults not caused by the user: free repair or replacement) |
| Controller | LS-CPL48320C-1T/2T, LS-CPL48760C-1T/2T (the selected controller must match the light power) |
| Cooling | Fan (air cooled) |
| Brightness | up to 1,800,000 lux |
| Emitting width (mm) | 22 |
| Length increment | emitting length in multiples of 75 mm |
| Illuminance chart reference | LS-LSH450-W; uniformity LS-LSH450-W, FOV 460 x 460 mm at LWD 10/50/100 mm |
| Power R (W) | 185 |
| Power G/B/W (W) | 185 |
| Light cable quantity | 2 |
| Extension cable | LS-AC16P6-LX |
| Fan quantity | 4 |
| Mounting drawing | Fig. 2 |
| Recommended controller | LS-CPL48320C-1T |
| Emitting area (mm, drawing) | 375 x 22 |
| Overall length (mm, drawing formula L = 10 + X) | 385 |
| Width (mm, drawing) | 50 |
| Height (mm, drawing) | 85 |
| Connector | 16M-6J/16J6TQ aviation plug |
| Cable length (mm) | 2 x 500 |
| Mounting | 2x2-8-M3 nuts, movable mounting holes |
| Shipping weight | 1.30 kg |
Applications
- High-speed motion scanning inspection
- Graphene material appearance inspection
- Lithium battery coating inspection
- Character inspection in the printing industry
- Metal surface scratch inspection
- Phone screen surface defect inspection
- Laptop housing oil stain inspection
- Lithium battery surface defect inspection
- Character defect inspection
- FPC glue bubble inspection
- Circuit board 2D code inspection
- Keyboard circuit inspection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Ultra-high-brightness line light (LSH) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-LSH75 | 75 x 22 mm | 37 W | $229.00 | 13 in stock | View | |
| LS-LSH150 | 150 x 22 mm | 74 W | $369.00 | 11 in stock | View | |
| LS-LSH225 | 225 x 22 mm | 111 W | $509.00 | 11 in stock | View | |
| LS-LSH300 | 300 x 22 mm | 148 W | $659.00 | 11 in stock | View | |
| LS-LSH450 | 450 x 22 mm | 222 W | $939.00 | 9 in stock | View | |
| LS-LSH525 | 525 x 22 mm | 259 W | $1,079.00 | 12 in stock | View | |
| LS-LSH600 | 600 x 22 mm | 296 W | $1,219.00 | 15 in stock | View | |
| LS-LSH675 | 675 x 22 mm | 333 W | $1,359.00 | 13 in stock | View | |
| LS-LSH750 | 750 x 22 mm | 370 W | $1,509.00 | 10 in stock | View | |
| LS-LSH825 | 825 x 22 mm | 407 W | $1,649.00 | 12 in stock | View | |
| LS-LSH900 | 900 x 22 mm | 444 W | $1,789.00 | 8 in stock | View | |
| LS-LSH975 | 975 x 22 mm | 481 W | $1,929.00 | 10 in stock | View | |
| LS-LSH1050 | 1050 x 22 mm | 518 W | $2,069.00 | 13 in stock | View | |
| LS-LSH1125 | 1125 x 22 mm | 555 W | $2,219.00 | 10 in stock | View | |
| LS-LSH1200 | 1200 x 22 mm | 592 W | $2,359.00 | 9 in stock | View | |
| LS-LSH1275 | 1275 x 22 mm | 629 W | $2,499.00 | 7 in stock | View | |
| LS-LSH1350 | 1350 x 22 mm | 666 W | $2,639.00 | 12 in stock | View |
