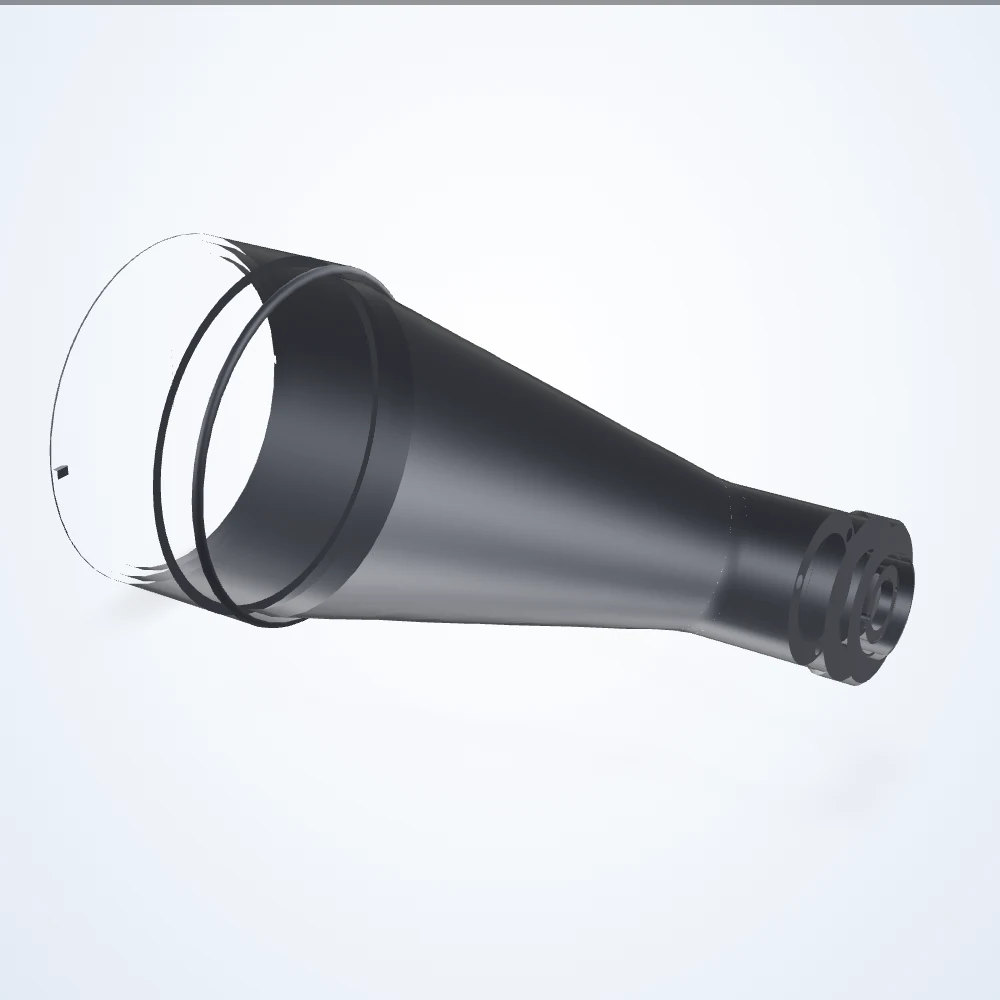

0.074× telecentric lens, 1/3", C-mount (LS-TCL-0178)

Model LS-TCL-0178

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.9 mm; depth of field 75.6 mm.

Datasheet (PDF) - LS-TCL-0178 3D model (STEP) - LS-TCL-0178

Specifications

Model	LS-TCL-0178
Magnification	0.074×
Working distance	181.9 mm
Sensor format	1/3"
Mount	C-mount
Depth of field	75.6 mm
Dimensions approximate	212.3 x 100 x 100 mm
Distortion maximum (%)	< 0.07
Distortion typical (%)	< 0.03
Filter thread	No Filter Threads
FOV @ 1/1.8″	72.03 mm ø
Fov @ 1/2.0″	64.86 mm ø
Fov @ 1/2.5″	57.80 mm ø
FOV @ 1/2″	64.86 mm ø
Fov @ 1/3.0″	64.86 x 48.65 mm
FOV @ 2/3″	81 mm ø
Front diameter	100 mm
Image circle	6 mm
Lens type	Telecentric
Operating temperature range	0 to 40°C
Resolution (pixel size)	69 μm
Storage temperature range	0 to 50°C
Telecentricity maximum	0.08°
Telecentricity typical	< 0.06°
Working ƒ/n	f/8
Weight	919 Grams
