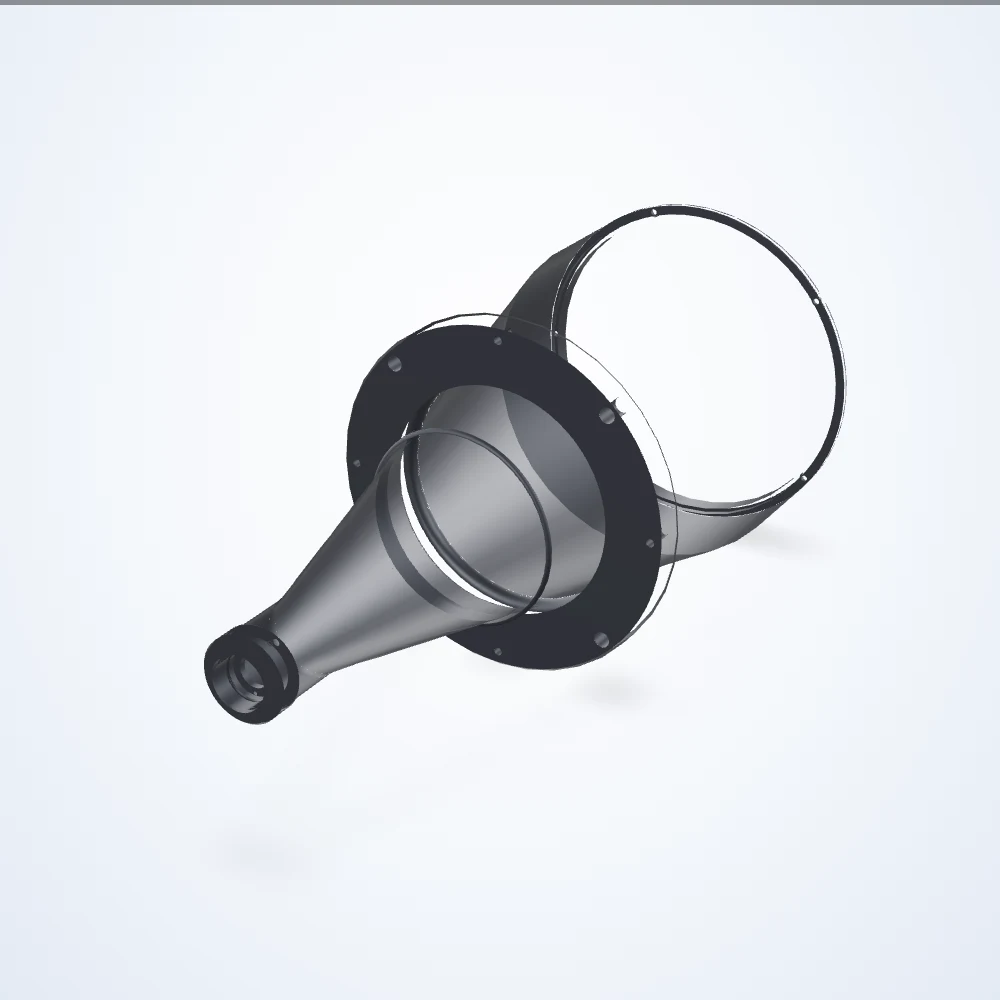

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.052× telecentric lens, 1/2", C-mount (LS-TCL-0144)
Model LS-TCL-0144
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 334.5 mm; depth of field 153.1 mm.
Specifications
| Model | LS-TCL-0144 |
|---|---|
| Magnification | 0.052× |
| Working distance | 334.5 mm |
| Sensor format | 1/2" |
| Mount | C-Mount |
| Depth of field | 153.1 mm |
| Dimensions approximate | 402.7 x 180 x 180 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 137.12 x 102.50 mm |
| Fov @ 1/2.0″ | 123.08 x 92.31 mm |
| Fov @ 1/2.5″ | 109.62 x 82.31 mm |
| Fov @ 1/2″ | 123.08 x 92.31 mm |
| Fov @ 1/3.0″ | 92.31 x 69.23 mm |
| Fov @ 2/3″ | 136 mm ø |
| Front diameter | 180 mm |
| Image circle | 8 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 98 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
| Working ƒ/n | f/8 |
| Weight | 4666 Grams |
