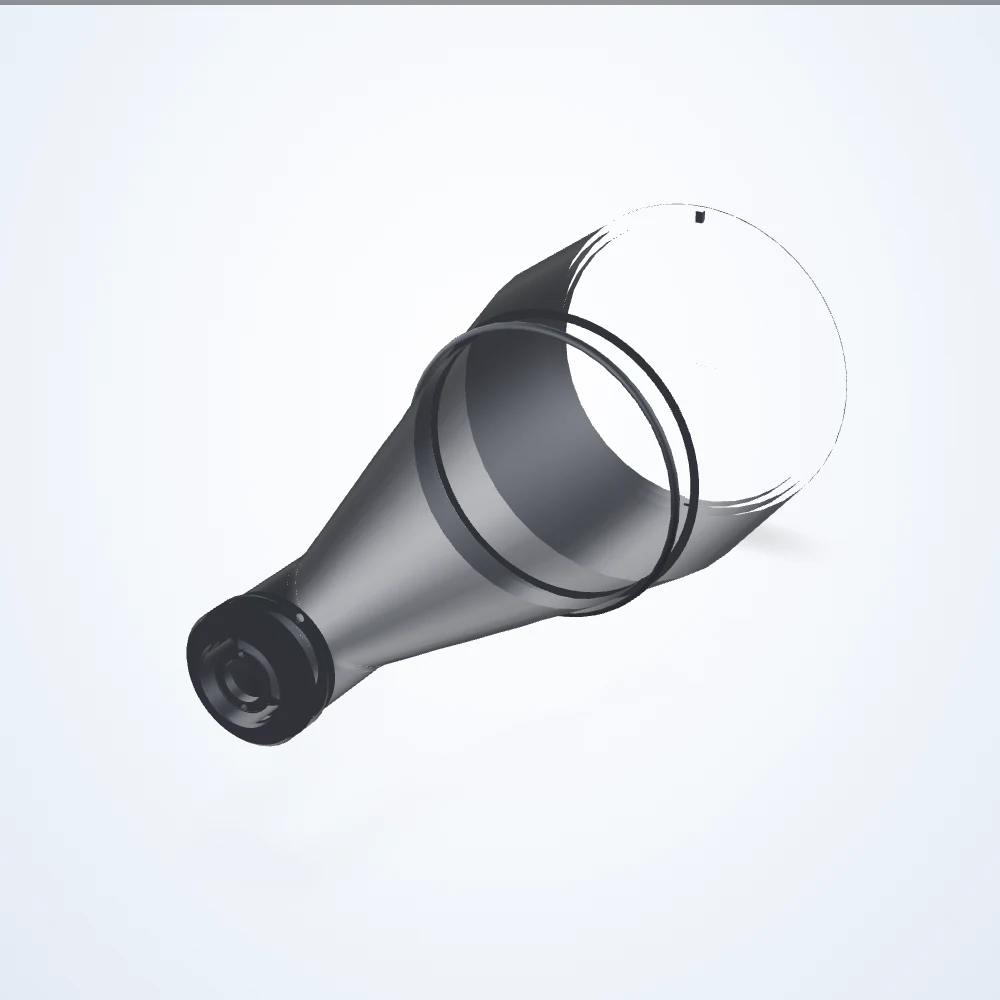

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.059× telecentric lens, 1/3", C-mount (LS-TCL-0179)
Model LS-TCL-0179
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 225.9 mm; depth of field 118.9 mm.
Specifications
| Model | LS-TCL-0179 |
|---|---|
| Magnification | 0.059× |
| Working distance | 225.9 mm |
| Sensor format | 1/3" |
| Mount | C-Mount |
| Depth of field | 118.9 mm |
| Dimensions approximate | 259.2 x 116 x 116 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.03 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 90.34 mm ø |
| Fov @ 1/2.0″ | 81.36 mm ø |
| Fov @ 1/2.5″ | 72.50 mm ø |
| Fov @ 1/2″ | 81.36 mm ø |
| Fov @ 1/3.0″ | 81.36 x 61.02 mm |
| Fov @ 2/3″ | 101 mm ø |
| Front diameter | 116 mm |
| Image circle | 6 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 86 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight | 1393 Grams |
