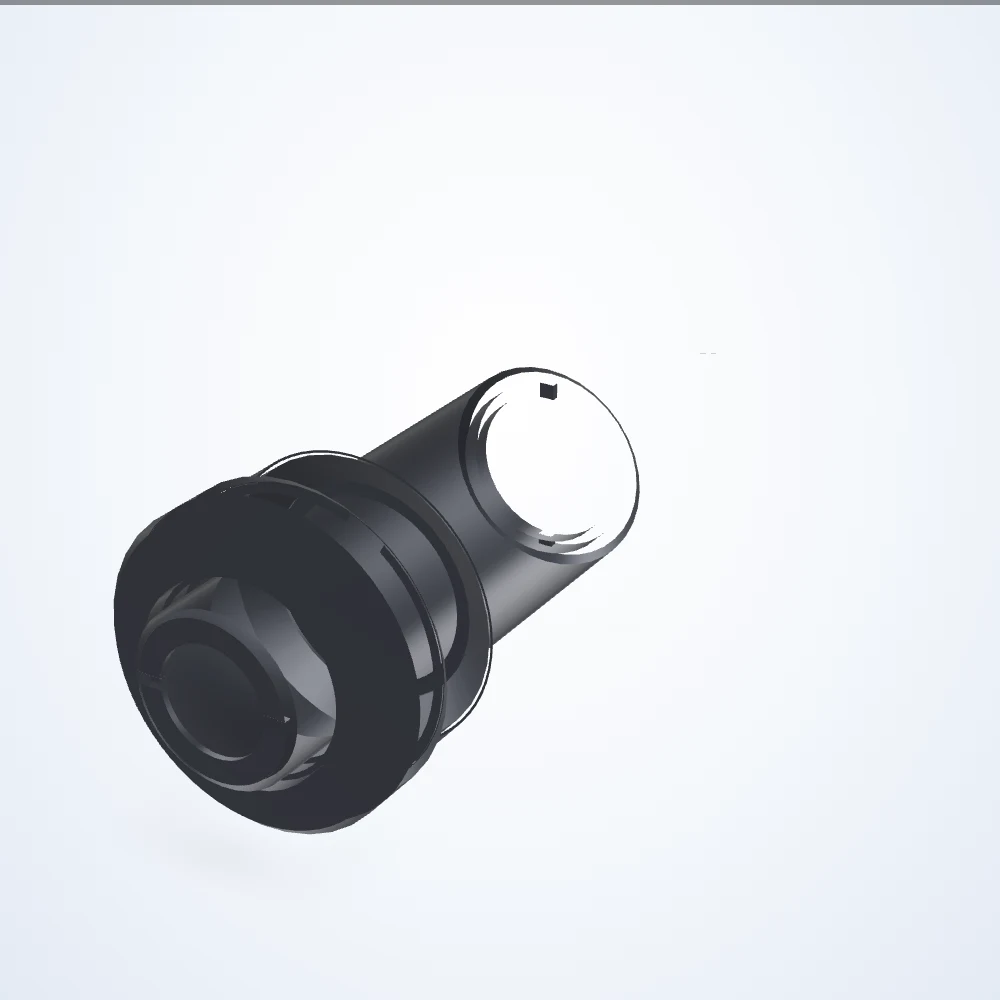

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
1× telecentric lens, 2/3", C-mount (LS-TCL-0237)
Model LS-TCL-0237
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 62.2 mm; depth of field 0.6 mm.
Specifications
| Model | LS-TCL-0237 |
|---|---|
| Magnification | 1× |
| Working distance | 62.2 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 0.6 mm |
| Dimensions approximate | 65 x 28 x 28 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 7.13 x 5.33 mm |
| Fov @ 1/2.0″ | 6.40 x 4.80 mm |
| Fov @ 1/2.5″ | 5.70 x 4.28 mm |
| Fov @ 1/2″ | 6.40 x 4.80 mm |
| Fov @ 1/3.0″ | 4.80 x 3.60 mm |
| Fov @ 2/3″ | 8.50 x 7.09 mm |
| Front diameter | 28 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 7 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/11 |
| Weight | 168 Grams |
