Home / Lenses / Telecentric lenses / 0.192× telecentric lens, 1/3", C-Mount

0.192× telecentric lens, 1/3", C-Mount (LS-TCL-0174)

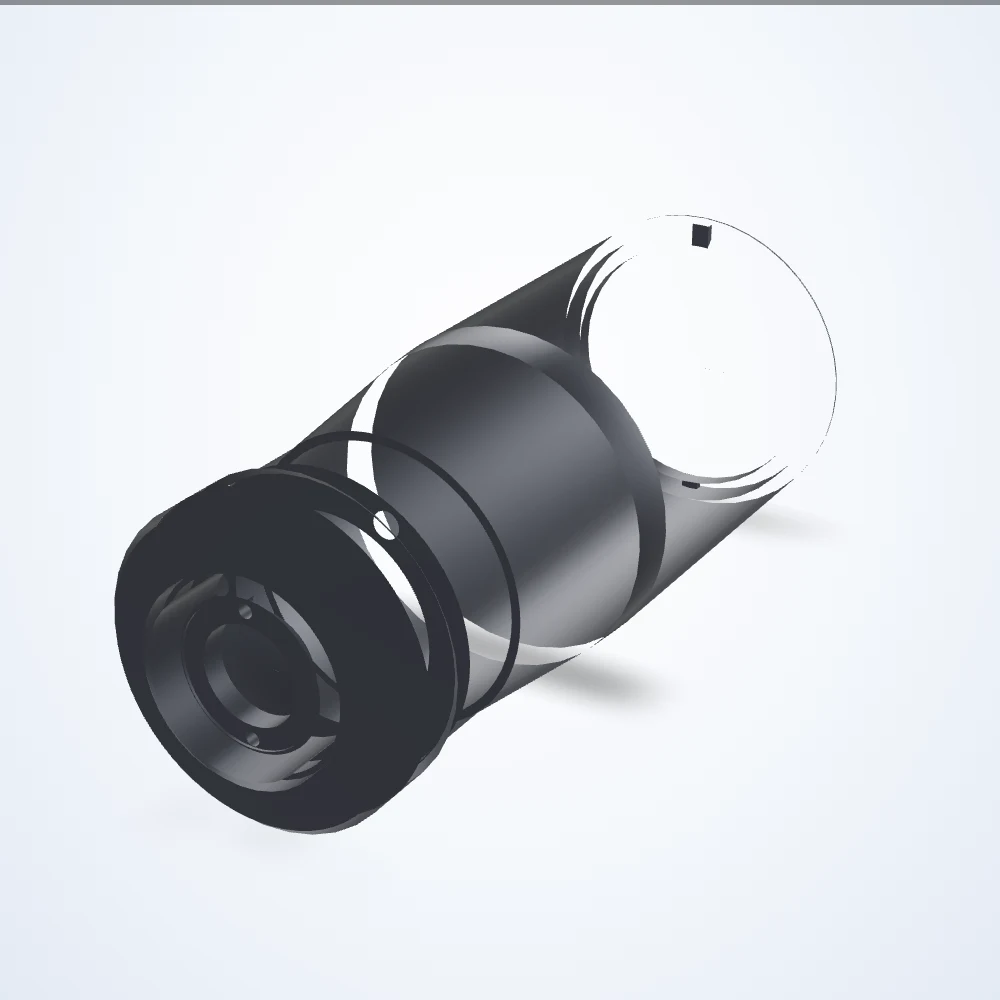

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.192× telecentric lens, 1/3", C-Mount (LS-TCL-0174)

Model LS-TCL-0174

0.192× telecentric lens, 1/3", C-Mount. Working distance 67.2 mm. Depth of field 11.2 mm.

Datasheet (PDF) - LS-TCL-0174 3D model (STEP) - LS-TCL-0174

Specifications

Model	LS-TCL-0174
Depth Of Field	11.2 mm
Distortion Maximum (%)	< 0.08
Distortion Typical (%)	< 0.04
Filter Thread	No Filter Threads
FoV @ 1/1.8″	27.76 mm ø
FoV @ 1/2.0″	25.00 mm ø
FoV @ 1/2.5″	29.60 mm ø
FoV @ 1/3.0″	25.00 x 18.75 mm
FoV @ 2/3″	31.2 mm ø
Front Diameter	44 mm
Image Circle Diameter	6 mm
Imager Format	1/3"
Lens Type	Telecentric
Magnification	0.192×
Mount	C-Mount
Resolution (Pixel Size)	26 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.08°
Working Distance	67.2 mm
Working ƒ/N	f/8
