Home / Lenses / Telecentric lenses / 0.098× telecentric lens, 1/3", C-Mount

0.098× telecentric lens, 1/3", C-Mount (LS-TCL-0176)

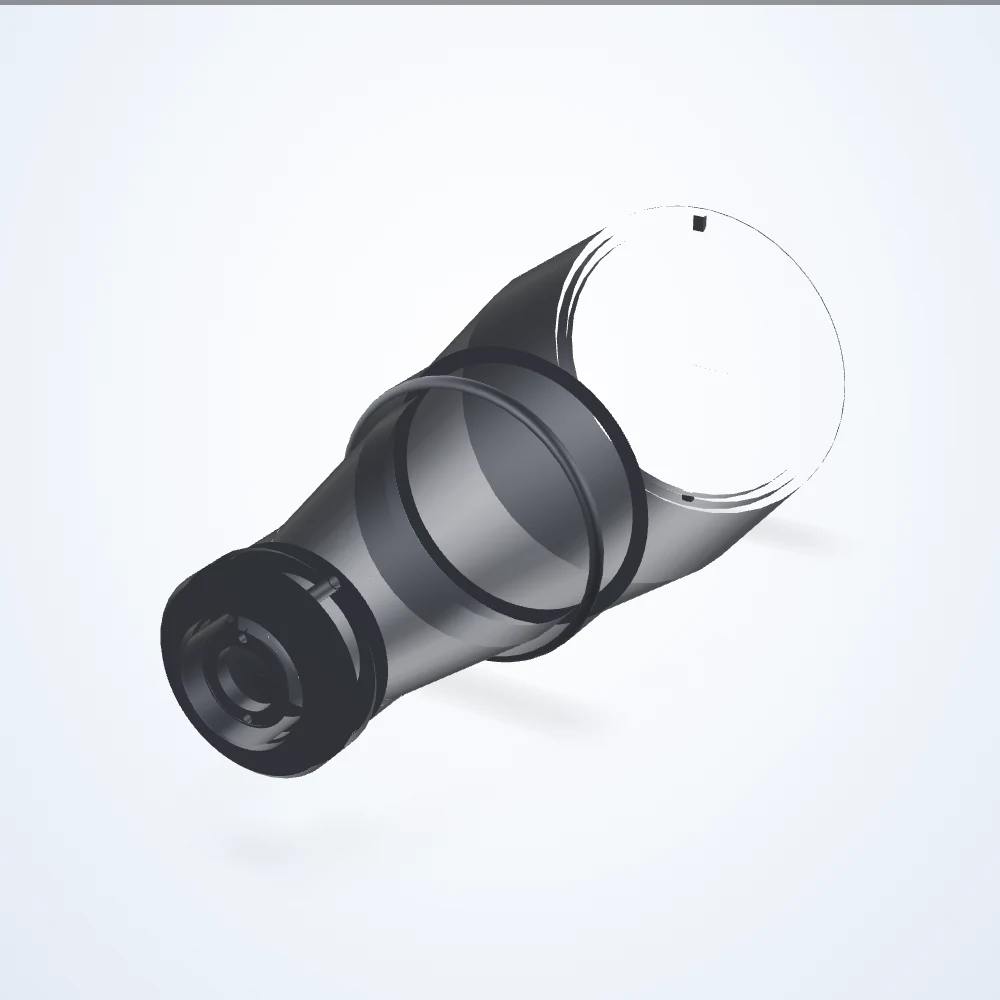

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.098× telecentric lens, 1/3", C-Mount (LS-TCL-0176)

Model LS-TCL-0176

0.098× telecentric lens, 1/3", C-Mount. Working distance 133.4 mm. Depth of field 43.1 mm.

Datasheet (PDF) - LS-TCL-0176 3D model (STEP) - LS-TCL-0176

Specifications

Model	LS-TCL-0176
Depth Of Field	43.1 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.06
Filter Thread	No Filter Threads
FoV @ 1/1.8″	54.39 mm ø
FoV @ 1/2.0″	48.98 mm ø
FoV @ 1/2.5″	43.60 mm ø
FoV @ 1/3.0″	48.98 x 36.73 mm
FoV @ 2/3″	61.2 mm ø
Front Diameter	75 mm
Image Circle Diameter	6 mm
Imager Format	1/3"
Lens Type	Telecentric
Magnification	0.098×
Mount	C-Mount
Resolution (Pixel Size)	52 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.08°
Working Distance	133.4 mm
Working ƒ/N	f/8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
