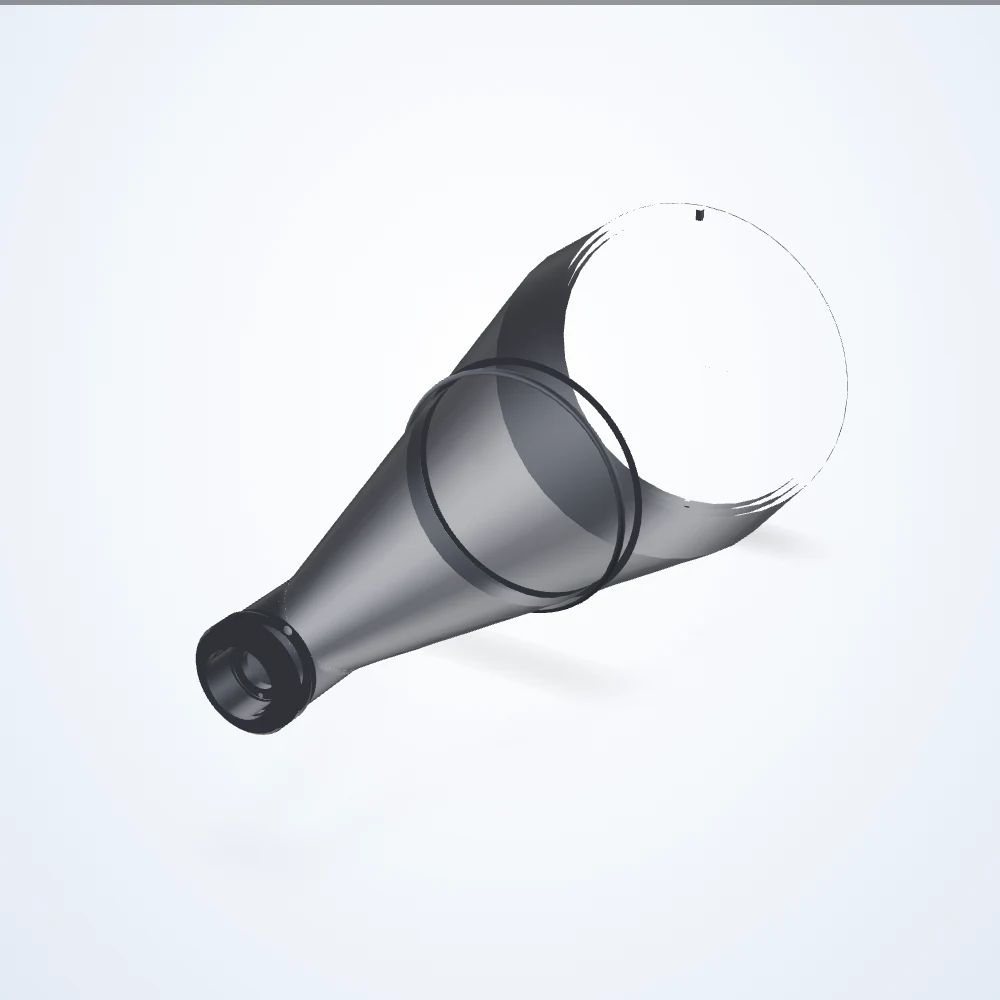

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.068× telecentric lens, 2/3", C-mount (LS-TCL-0143)
Model LS-TCL-0143
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 89.5 mm.
Specifications
| Model | LS-TCL-0143 |
|---|---|
| Magnification | 0.068× |
| Working distance | 278.6 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 89.5 mm |
| Dimensions approximate | 317 x 143 x 143 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.03 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 104.85 x 78.38 mm |
| Fov @ 1/2.0″ | 94.12 x 70.59 mm |
| Fov @ 1/2.5″ | 83.82 x 62.94 mm |
| Fov @ 1/2″ | 94.12 x 70.59 mm |
| Fov @ 1/3.0″ | 70.59 x 52.94 mm |
| Fov @ 2/3″ | 104 mm ø |
| Front diameter | 143 mm |
| Image circle | 8 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 75 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
| Working ƒ/n | f/8 |
| Weight | 2215 Grams |
