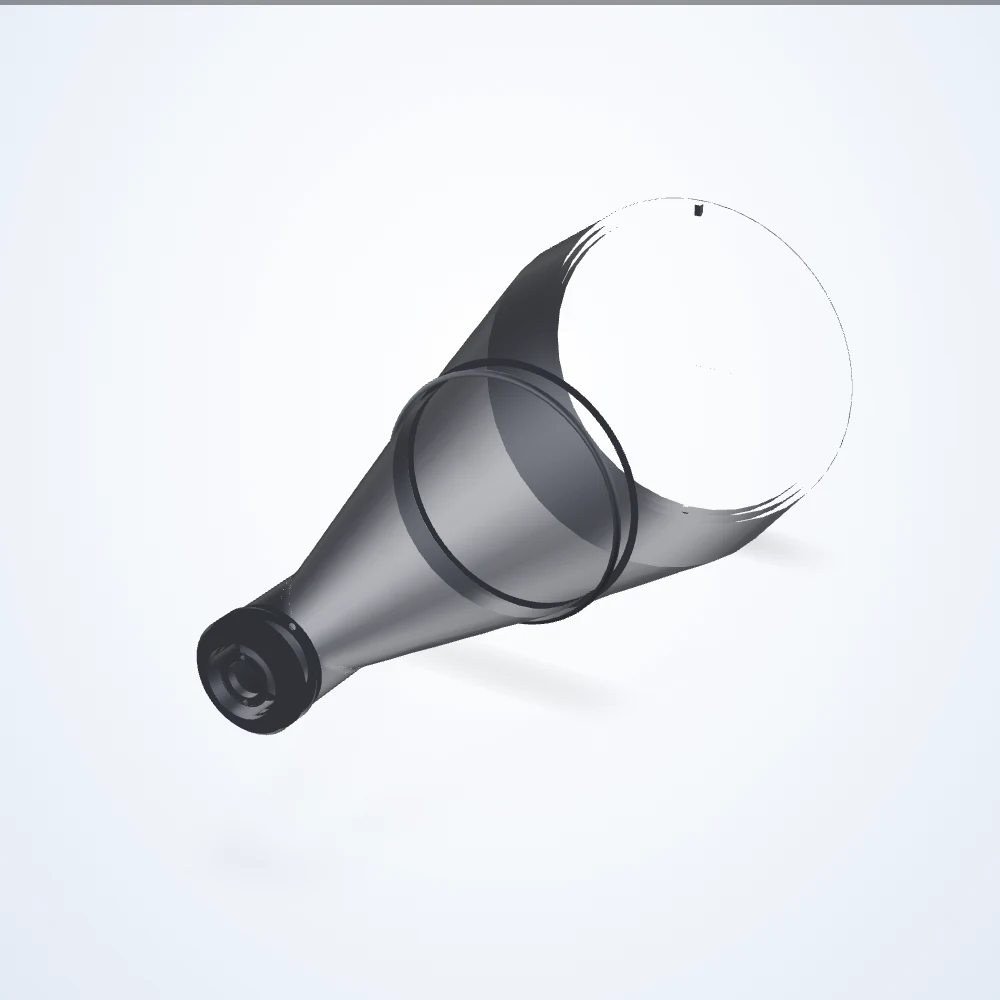

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.05× telecentric lens, 1/2", C-Mount (LS-TCL-0180)
Model LS-TCL-0180
0.05× telecentric lens, 1/2", C-Mount. Working distance 279.6 mm. Depth of field 165.6 mm.
Specifications
| Model | LS-TCL-0180 |
|---|---|
| Depth Of Field | 165.6 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.04 |
| Filter Thread | No Filter Threads |
| FoV @ 1/1.8″ | 106.60 mm ø |
| FoV @ 1/2.0″ | 96.00 mm ø |
| FoV @ 1/2.5″ | 85.60 mm ø |
| FoV @ 1/3.0″ | 96.00 x 72.00 mm |
| FoV @ 2/3″ | 120 mm ø |
| Front Diameter | 143 mm |
| Image Circle Diameter | 6 mm |
| Imager Format | 1/2" |
| Lens Type | Telecentric |
| Magnification | 0.05× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 102 μm |
| Telecentricity Maximum | 0.08° |
| Telecentricity Typical | < 0.06° |
| Working Distance | 279.6 mm |
| Working ƒ/N | f/8 |
