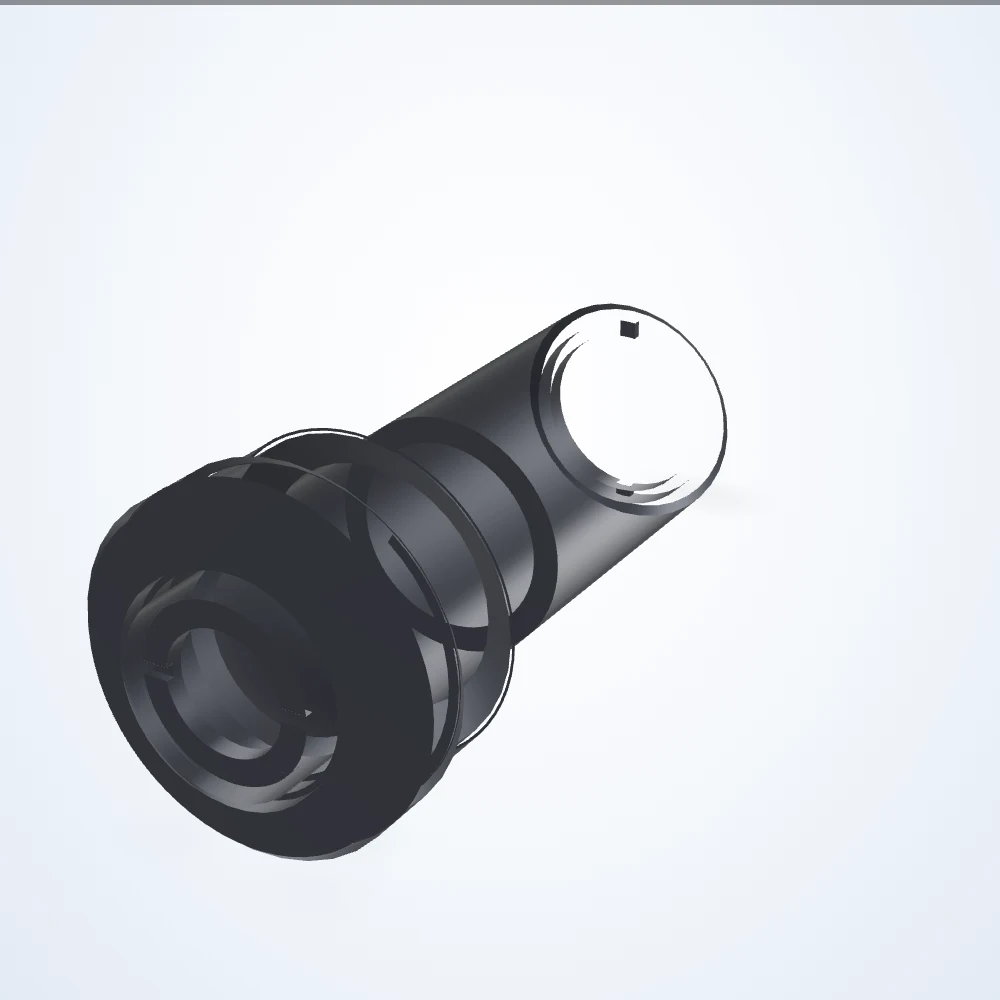

1.333× telecentric lens, 2/3", C-mount (LS-TCL-0236)

Model LS-TCL-0236

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 60.1 mm; depth of field 0.3 mm.

Datasheet (PDF) - LS-TCL-0236 3D model (STEP) - LS-TCL-0236

Specifications

Model	LS-TCL-0236
Magnification	1.333×
Working distance	60.1 mm
Sensor format	2/3"
Mount	C-mount
Depth of field	0.3 mm
Dimensions approximate	78.5 x 28 x 28 mm
Distortion maximum (%)	< 0.08
Distortion typical (%)	< 0.03
Filter thread	No Filter Threads
FOV @ 1/1.8″	5.35 x 4 mm
Fov @ 1/2.0″	4.80 x 3.60 mm
Fov @ 1/2.5″	4.28 x 3.21 mm
FOV @ 1/2″	4.80 x 3.60 mm
Fov @ 1/3.0″	3.60 x 2.70 mm
FOV @ 2/3″	6.38 x 5.32 mm
Front diameter	28 mm
Image circle	11 mm
Lens type	Telecentric
Operating temperature range	0 to 40°C
Resolution (pixel size)	5 μm
Storage temperature range	0 to 50°C
Telecentricity maximum	0.10°
Telecentricity typical	< 0.08°
Working ƒ/n	f/11
Weight	183 Grams
