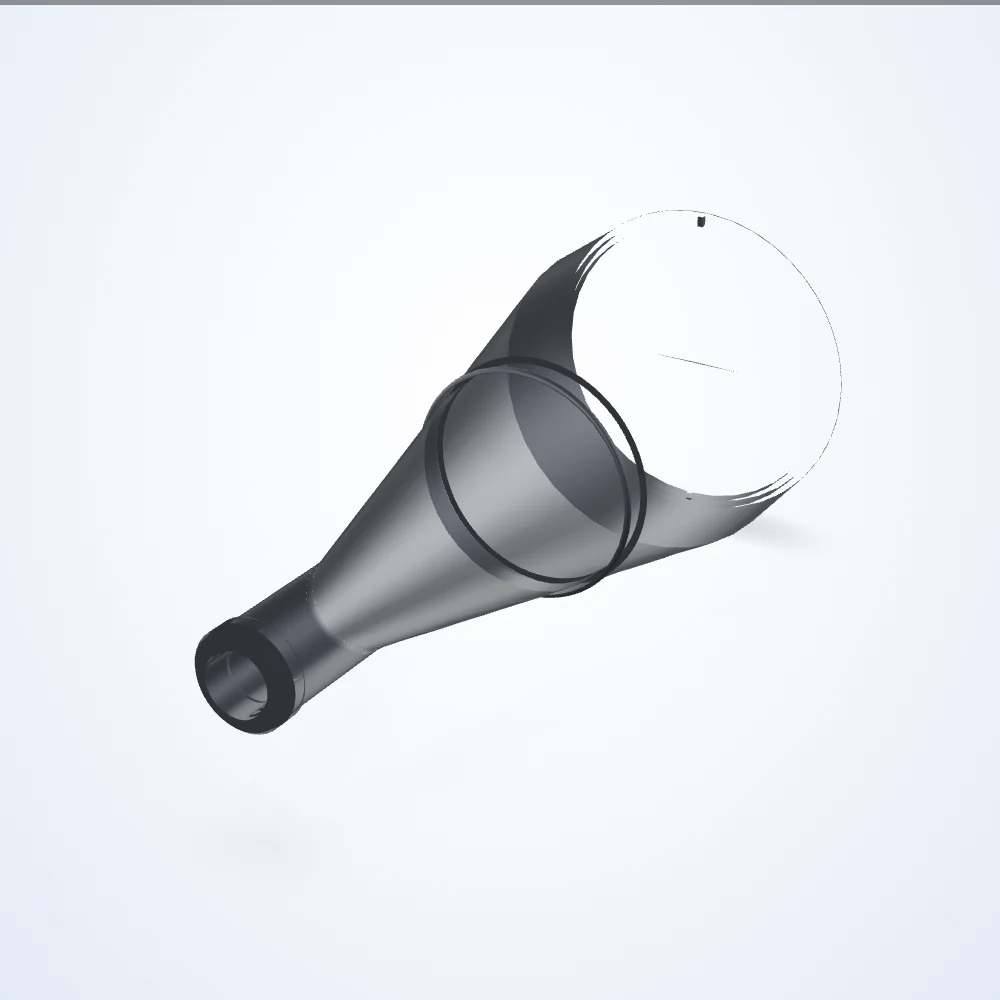

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.093× telecentric lens, 2/3", C-mount (LS-TCL-0248)
Model LS-TCL-0248
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 47.9 mm.
Specifications
| Model | LS-TCL-0248 |
|---|---|
| Magnification | 0.093× |
| Working distance | 278.6 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 47.9 mm |
| Dimensions approximate | 336.6 x 143 x 143 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 76.67 x 57.31 mm |
| Fov @ 1/2.0″ | 68.82 x 51.61 mm |
| Fov @ 1/2.5″ | 61.29 x 46.02 mm |
| Fov @ 1/2″ | 68.82 x 51.61 mm |
| Fov @ 1/3.0″ | 51.61 x 38.71 mm |
| Fov @ 2/3″ | 91.40 x 76.24 mm |
| Front diameter | 143 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 55 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
| Working ƒ/n | f/8 |
| Weight | 2262 Grams |
