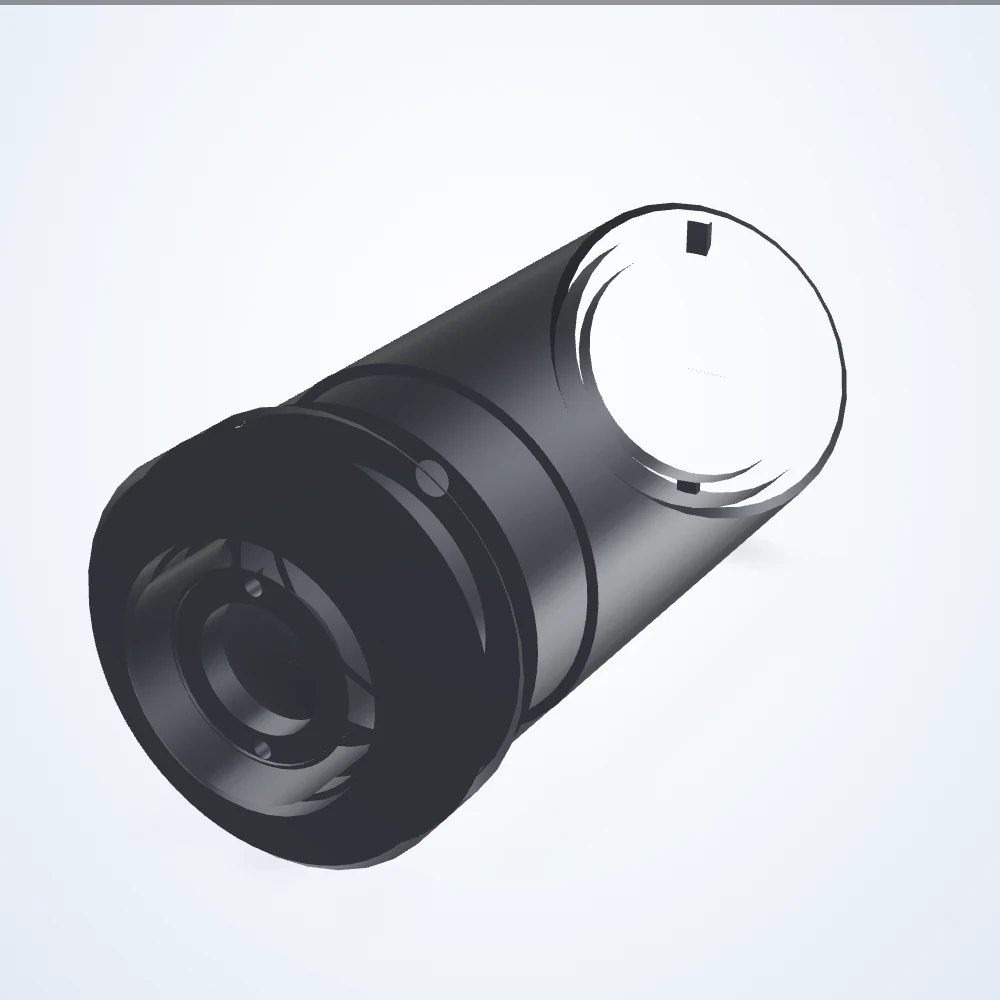

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.29× telecentric lens, 1/3", C-mount (LS-TCL-0173)
Model LS-TCL-0173
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 43.1 mm; depth of field 4.9 mm.
Specifications
| Model | LS-TCL-0173 |
|---|---|
| Magnification | 0.29× |
| Working distance | 43.1 mm |
| Sensor format | 1/3" |
| Mount | C-Mount |
| Depth of field | 4.9 mm |
| Dimensions approximate | 80.9 x 37. x 37.7 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 18.38 mm ø |
| Fov @ 1/2.0″ | 16.55 mm ø |
| Fov @ 1/2.5″ | 14.70 mm ø |
| Fov @ 1/2″ | 16.55 mm ø |
| Fov @ 1/3.0″ | 16.55 x 12.41 mm |
| Fov @ 2/3″ | 20.6 mm ø |
| Front diameter | 37.7 mm |
| Image circle | 6 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 18 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 234 Grams |
