Home / Lenses / Telecentric lenses / 0.033× telecentric lens, 1/3", C-Mount

0.033× telecentric lens, 1/3", C-Mount (LS-TCL-0182)

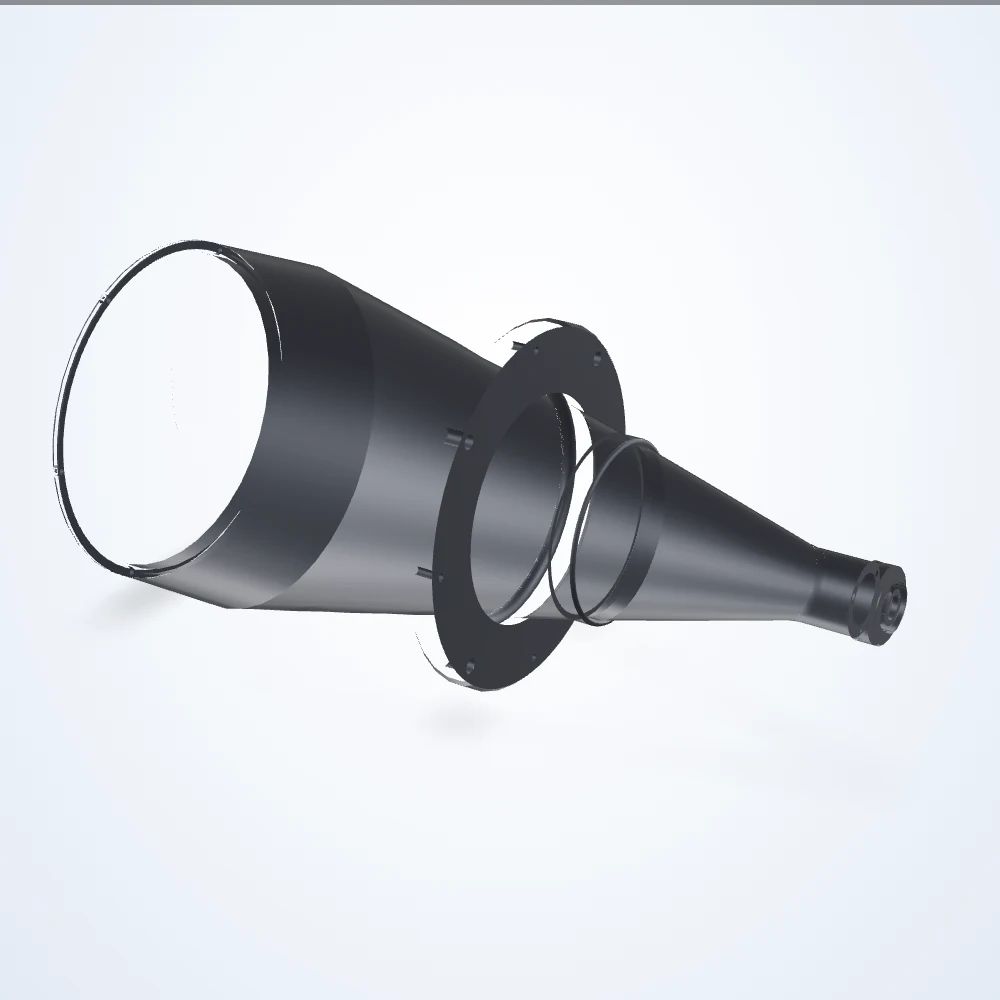

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.033× telecentric lens, 1/3", C-Mount (LS-TCL-0182)

Model LS-TCL-0182

0.033× telecentric lens, 1/3", C-Mount. Working distance 396 mm. Depth of field 380.2 mm.

3D model (STEP) - LS-TCL-0182

Specifications

Model	LS-TCL-0182
Depth Of Field	380.2 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.04
Filter Thread	No Filter Threads
FoV @ 1/1.8″	161.52 mm ø
FoV @ 1/2.0″	145.45 mm ø
FoV @ 1/2.5″	129 mm ø
FoV @ 1/3.0″	145.45 x 109.09 mm
FoV @ 2/3″	181 mm ø
Front Diameter	200 mm
Image Circle Diameter	6 mm
Imager Format	1/3"
Lens Type	Telecentric
Magnification	0.033×
Mount	C-Mount
Resolution (Pixel Size)	154 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.05°
Working Distance	396 mm
Working ƒ/N	f/8
