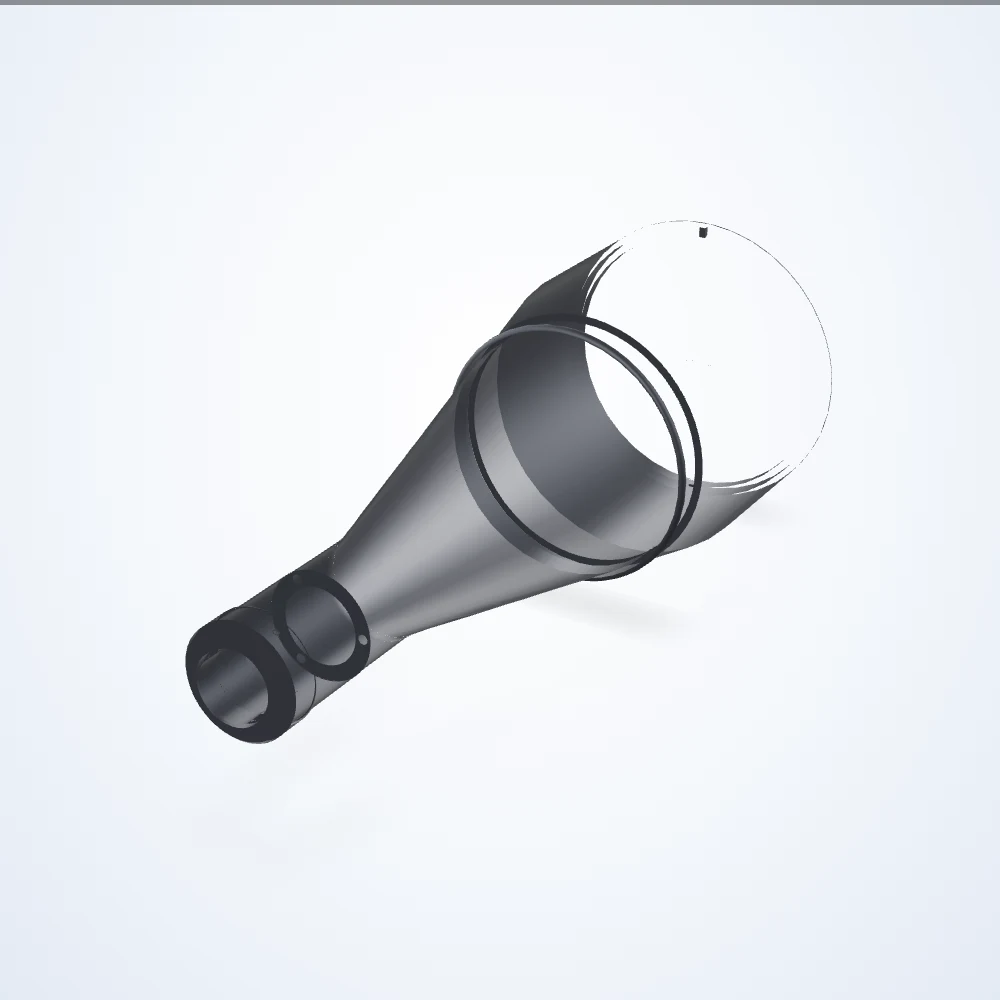

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.122× telecentric lens, 2/3", C-mount (LS-TCL-0245)
Model LS-TCL-0245
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.7 mm; depth of field 27.8 mm.
Specifications
| Model | LS-TCL-0245 |
|---|---|
| Magnification | 0.122× |
| Working distance | 226.7 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 27.8 mm |
| Dimensions approximate | 299.2 x 116 x 116 mm |
| Distortion maximum (%) | < 0.07 |
| Distortion typical (%) | < 0.03 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 58.44 x 43.69 mm |
| Fov @ 1/2.0″ | 52.46 x 39.34 mm |
| Fov @ 1/2.5″ | 46.72 x 35.08 mm |
| Fov @ 1/2″ | 52.46 x 39.34 mm |
| Fov @ 1/3.0″ | 39.34 x 29.51 mm |
| Fov @ 2/3″ | 69.67 x 58.11 mm |
| Front diameter | 116 mm |
| Image circle | 11 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 42 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.04° |
| Working ƒ/n | f/8 |
| Weight | 1480 Grams |
